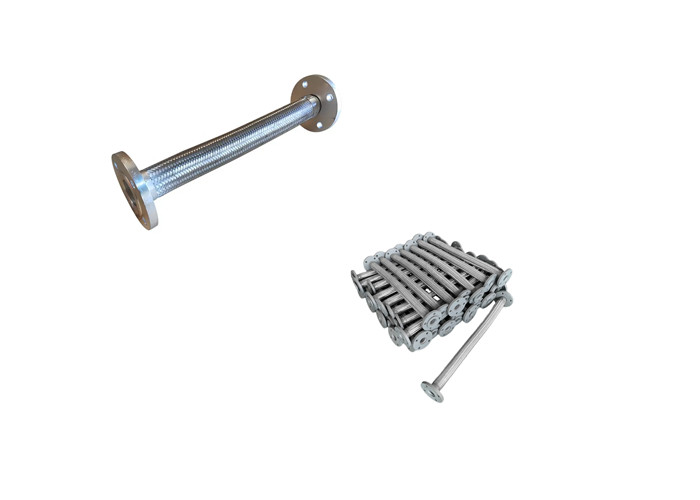

A flange connector style stainless steel wire metal braided flexible hose
A flange connector style stainless steel wire metal braided flexible hose is a type of hose that combines the flexibility of a braided hose with the durability and strength of stainless steel wire and flange connectors. Here's a breakdown of the different components mentioned:
Flange Connector Style: Flange connectors are used to join two sections of a hose or pipe together. They consist of flanges on either end of the hose that can be bolted or welded to the mating flanges of the equipment or system. Flange connectors provide a secure and leak-free connection.
Stainless Steel Wire: The hose is reinforced with stainless steel wire, which adds strength and durability. The wire reinforcement helps the hose withstand high pressures, resist deformation, and maintain its shape under extreme conditions.
Metal Braided: The hose features a metal braided outer layer, typically made of stainless steel or another corrosion-resistant metal. The braiding provides additional strength, protection against abrasion, and containment of the inner layers.
Flexible Hose: The hose is designed to be flexible, allowing it to bend and move without compromising its functionality. The flexibility makes it easier to install and route the hose in various applications.
Stainless Steel: The hose is constructed with stainless steel material, which offers excellent corrosion resistance, durability, and high-temperature resistance. Stainless steel is commonly used in applications where hygiene, cleanliness, and resistance to harsh environments are required.
Flange connector style stainless steel wire metal braided flexible hoses are commonly used in industries such as oil and gas, chemical, pharmaceutical, and food processing. They are suitable for applications where high pressures, temperature extremes, and corrosive environments are present. These hoses provide a reliable and durable solution for fluid transfer, conveying liquids or gases, and accommodating movement or vibration within a system.
Product Description
| Product name | DN150 style oil Pipe metal flange connection SS 304 braided bellows flexible stainless steel hose |
| Size | DN8-DN400 |
| Material of braid mesh | Stainless steel 304,316L,etc. |
| Working Pressure | 0.6 Mpa ~2.5 Mpa |
| Role | vibration reduction and noise reduction, absorption of pipeline settlement |
| Applicable media | Air, water ,hot Water, Oil, steam etc. |
| Technical parameter | |||||||
| Nominal diameter DN |
Inner diameter (mm) |
Outer diameter | Minimum bending radius | Working pressure | |||
| Bellows | Braid mesh | Static | Dynamic | Single braid mesh | Double braid mesh | ||
| 8 | 8.8 | 13.2 | 14.4 | 50 | 110 | 15 | 20 |
| 10 | 11.7 | 16.5 | 17.7 | 65 | 145 | 185 | 20 |
| 15 | 13.5 | 19.5 | 21.1 | 80 | 180 | 18 | 20 |
| 20 | 20.0 | 27 | 28.6 | 120 | 270 | 10 | 15 |
| 25 | 27.0 | 34.5 | 36.1 | 160 | 360 | 6.3 | 10 |
| 32 | 32.0 | 40 | 41.6 | 175 | 400 | 4.0 | 6.3 |
| 40 | 39.6 | 52 | 53.6 | 225 | 510 | 4.0 | 6.3 |
| 50 | 49.7 | 62 | 63.6 | 280 | 640 | 3.0 | 5.0 |
| 65 | 61.2 | 80.2 | 81.8 | 410 | 915 | 3.0 | 5.0 |
| 80 | 79.0 | 96.3 | 97.9 | 486 | 1030 | 3.0 | 5.0 |
| 100 | 101.2 | 119.6 | 121.2 | 610 | 1340 | 2.5 | 4.0 |
| 125 | 124.1 | 145.3 | 146.9 | 700 | 1540 | 2.5 | 4.0 |
| 150 | 149.4 | 180.8 | 182.4 | 810 | 1780 | 2.5 | 4.0 |
| 200 | 176.0 | 240 | 243.2 | 1000 | 2000 | 2.5 | 4.0 |
| 250 | 248.0 | 290 | 294 | 1250 | 2500 | 2.5 | 4.0 |
| 300 | 298.0 | 350 | 354 | 1500 | 3000 | 1.6 | 2.5 |
| 350 | 347.0 | 400 | 404.8 | 1750 | 3500 | 1.6 | 2.5 |
| 400 | 397.6 | 460 | 464.8 | 2000 | 4000 | 1.6 | 2.5 |
Applications: industry, chemical industry, natural gas, food hygiene, biopharmaceuticals, pressure vessels, sewage treatment, vacuum treatment, oil and waterway, etc.
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
Our products are sold all over the world, you can rest assured.
