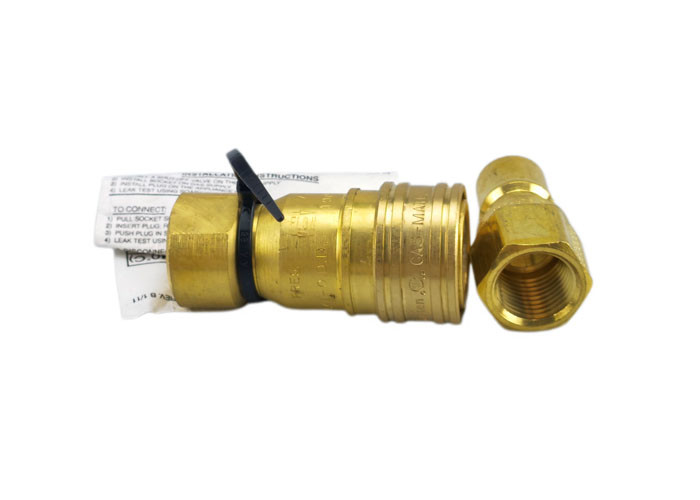

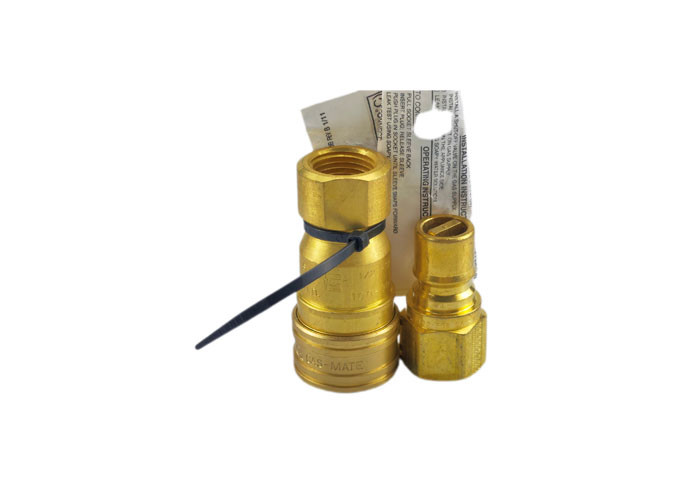

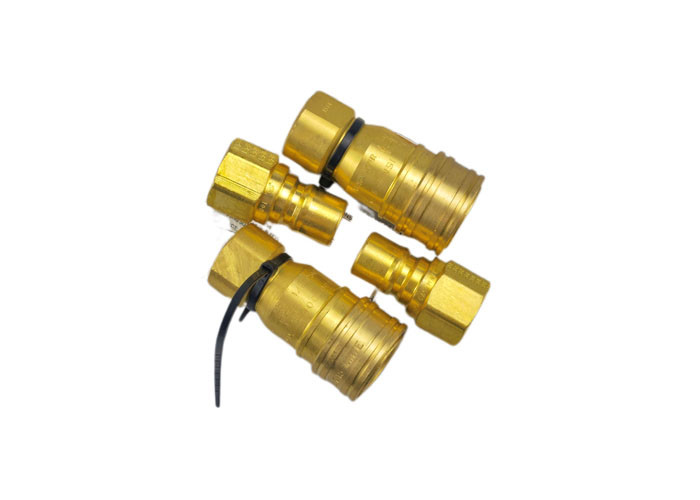

Name: 3000PSI Thread To Connect Tubular Valve Brass Coupling
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-2
Price: 500.00 USD
Availability: InStock

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Coupling

Pressure: 3000PSI

Size: 1/4"-1

Technics: Casting

Material: Brass

Connection: Thread

Usage: On-highway Hydraulic Wet Lines

Certification: ISO9001

Highlight:

3000PSI Brass Coupling

0.25in Brass Coupling

ISO9001 brass quick connect water hose fittings

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: carterberg

Certification: IATF16949

Model Number: CB-2

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000~20000 pc/month

Gallery

3000PSI Thread To Connect Tubular Valve Brass Coupling

Product Description

Thread to Connect Tubular valve construction for virtually no fluid loss during disconnection Brass Quick Coupler

Features

Tubular valve construction for virtually no fluid loss during disconnection, reduces environmental and worker safety hazards
Low air inclusion during connection maintains system performance
Available with wing or hex nut configurations
Connect against pressure capability allows connecting of halves even when pressurized up to 500 psi
Steel flange available for accessible bulkhead mounting
Standard seal material: Buna-N
Standard body material: Brass body with high resistance carbon steel with zinc trivalent plated valving components, hex and wing nuts

CB-3-A Series brass coupling with steel tubular valve offers minimum air inclusion and fluid loss. Thread together latch provides connect under pressure capability and vibration resistance. The Series is not rated for continuous hydraulic impulse applications.

Applications & Markets • Hydraulics and fluid transfer • On-highway hydraulic wet lines • Dump and refuse vehicles • Bulk liquid transfer

3000PSI Thread To Connect Tubular Valve Brass Coupling 0

Body Size	PARTNO.	Thread	A	B	HEX1	HEX2
1/8"	CB-S1B-3FN-A	1/8-27	2.10	1.32	0.56	1.19
1/4"	CB-S2B-3FN-A	1/4-18	2.40	1.53	0.76	1.38
3/8"	CB-S3B-3FN-A	3/8-18	2.40	1.53	0.76	1.38
1/2"	CB-S4B-3FN-A	1/2-14	3.07	1.98	1.16	1.75
3/4"	CB-S6B-3FN-A	3/4-14	3.07	1.98	1.16	1.75
1"	CB-S8B-3FN-A	1-11 1/2	3.68	2.41	1.44	2.12

3000PSI Thread To Connect Tubular Valve Brass Coupling 1

Body Size	PARTNO.	Thread	A	B	HEX
1/8"	CB-P1B-3FN-A	1/8-27	1.88	0.90	0.69
1/4"	CB-P2B-3FN-A	1/4-18	2.58	1.05	0.94
3/8"	CB-P3B-3FN-A	3/8-18	2.58	1.05	0.94
1/2"	CB-P4B-3FN-A	1/2-14	3.11	1.38	1.19
3/4"	CB-P6B-3FN-A	3/4-14	3.11	1.38	1.19
1"	CB-P8B-3FN-A	1-11 1/2	3.55	1.74	1.56
