3/8'' 316 stainless steel Flat Face Coupling,flat face hydraulic quick couplers
Standard Materials

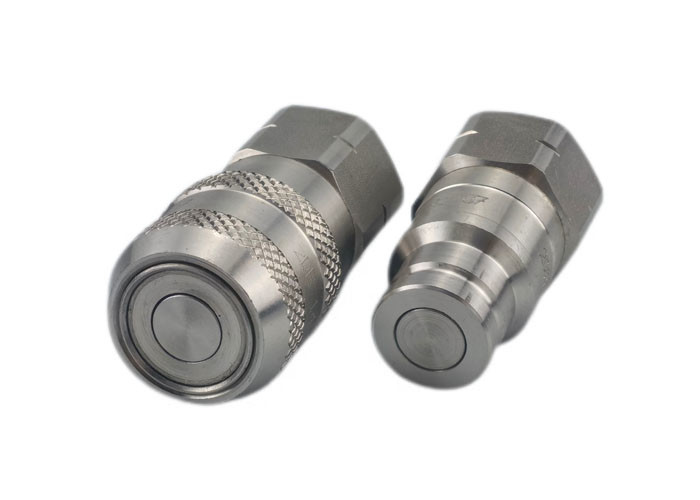

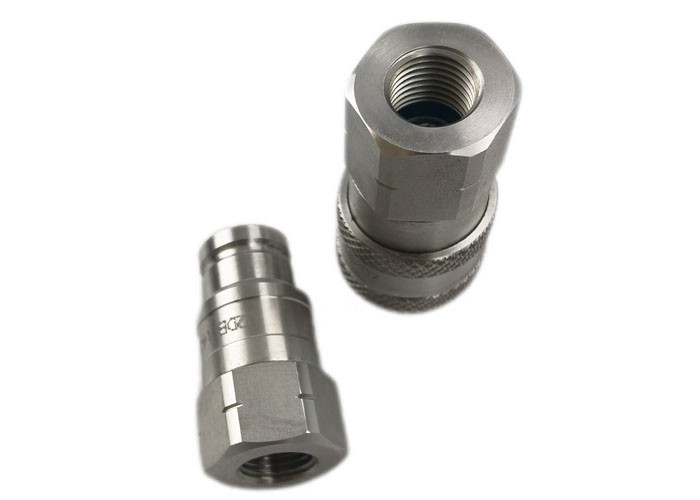

CB-6-B Series stainless steel coupling is a flat face/dry break coupling used for fluid transfer applications. The CB-6-B Series offers the ability to connect with less force, higher sealing performance and are available in multiple configurable end connections.
Applications
• Process/Fluid Transfer • Cooling • Corrosive Environments • Chemicals/ Petrochemicals • Pharmaceuticals • Food Processing • Electrical
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2M-6FN-B | 1/4-18 | 1.98 | 1.02 | 0.88 |
| 1/4" | CB-S2M-6FG-B | 1/4-19 | 1.98 | 1.02 | 0.88 |
| 1/2" | CB-S4M-6FN-B | 1/2-14 | 2.52 | 1.59 | 1.38 |
| 1/2" | CB-S4M-6FG-B | 1/2-14 | 2.52 | 1.59 | 1.38 |
| 3/4" | CB-S6M-6FN-B | 3/4-14 | 3.71 | 2.00 | 1.50 |
| 3/4" | CB-S6M-6FG-B | 3/4-14 | 3.71 | 2.00 | 1.50 |
| 1" | CB-S8M-6FN-B | 1-11 | 3.52 | 2.25 | 1.81 |
| 1" | CB-S8M-6FG-B | 1-11 | 3.52 | 2.25 | 1.81 |
| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P2M-6FN-B | 1/4-18 | 1.98 | 1.02 | 0.88 |
| 1/4" | CB-P2M-6FG-B | 1/4-19 | 1.98 | 1.02 | 0.88 |
| 1/2" | CB-P4M-6FN-B | 1/2-14 | 2.52 | 1.59 | 1.38 |
| 1/2" | CB-P4M-6FG-B | 1/2-14 | 2.52 | 1.59 | 1.38 |
| 3/4" | CB-P6M-6FN-B | 3/4-14 | 3.71 | 2.00 | 1.50 |
| 3/4" | CB-P6M-6FG-B | 3/4-14 | 3.71 | 2.00 | 1.50 |
| 1" | CB-P8M-6FN-B | 1-11 | 3.52 | 2.25 | 1.81 |
| 1" | CB-P8M-6FG-B | 1-11 | 3.52 | 2.25 | 1.81 |
