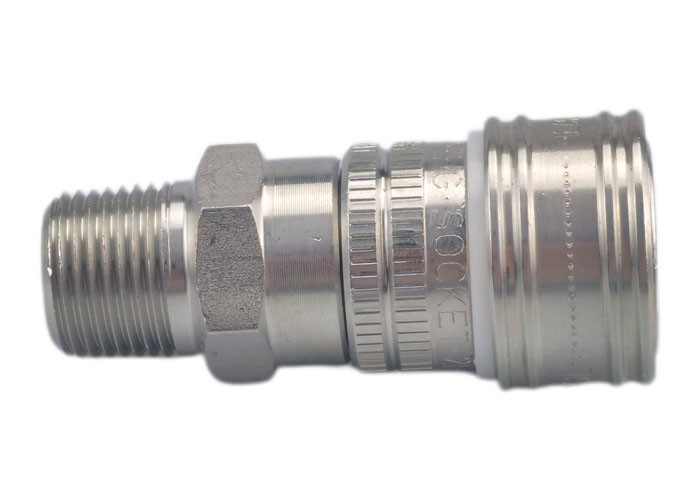

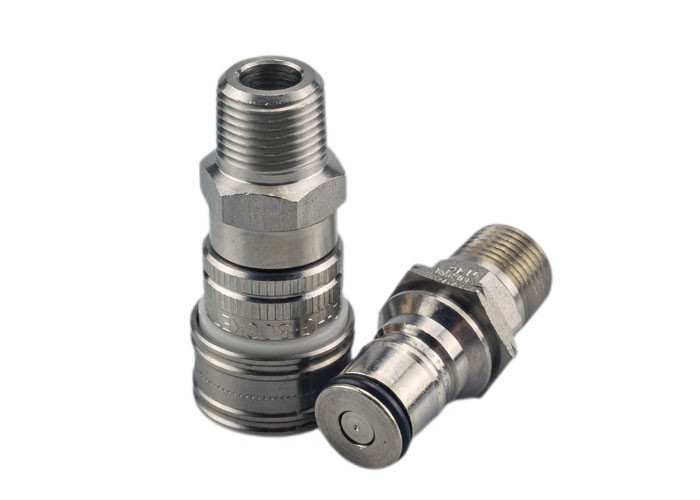

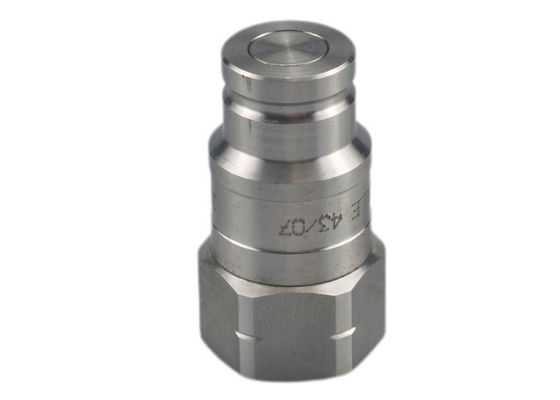

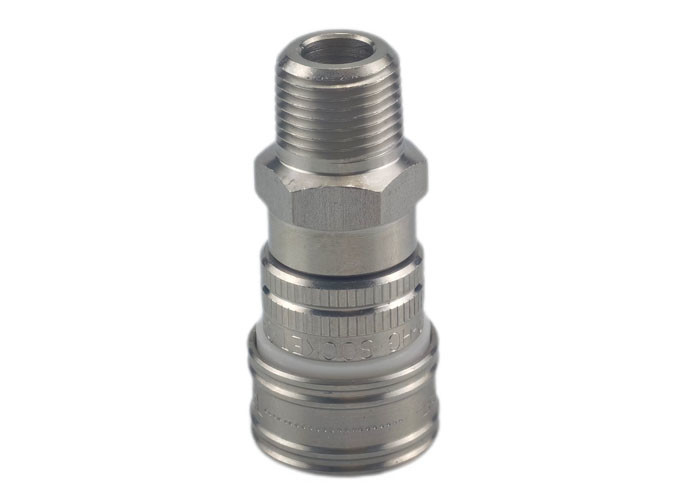

Used with various liquids and gases Stainless Steel Quick Coupling
Features
CB-9-A Series They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.Applications
• Chemical • Food and Beverage • Military • Aerospace
| Body Size | PARTNO. | Thread | A | B | Hex |
| 1/4" | CB-S1L-9FN-A | 1/8-27 | 2.18 | 1.06 | 0.81 |
| 1/4" | CB-S2L-9FN-A | 1/4-18 | 2.26 | 1.06 | 0.81 |
| Body Size | PARTNO. | Thread | C | D | Hex |
| 1/4" | CB-P2L-9FN-A | 1/4-18 | 1.84 | 1.01 | 0.69 |
| 1/4" | CB-P7L-9FN-A | 7/16-20* | 1.61 | 1.01 | 0.69 |
| 1/4" | CB-P9L-9FN-A | 9/16-18 | 1.17 | 1.01 | 0.88 |
