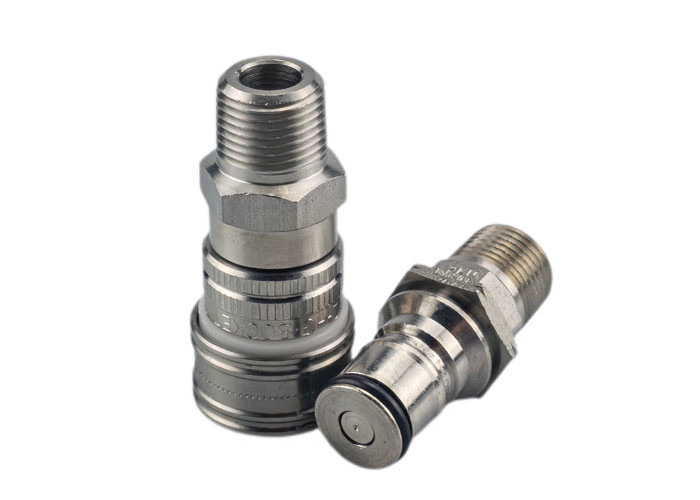

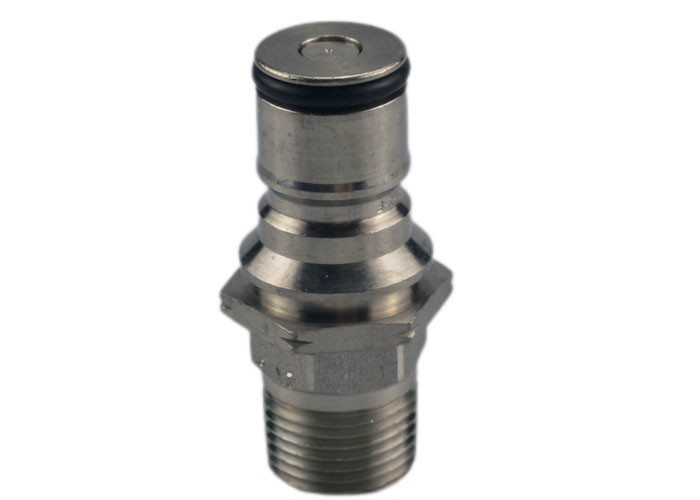

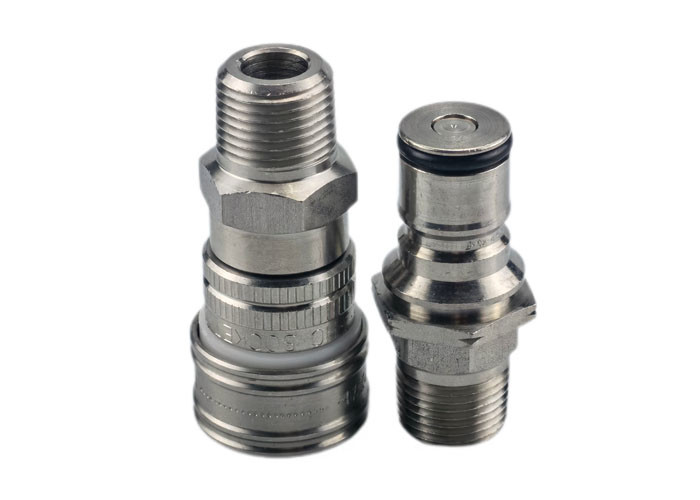

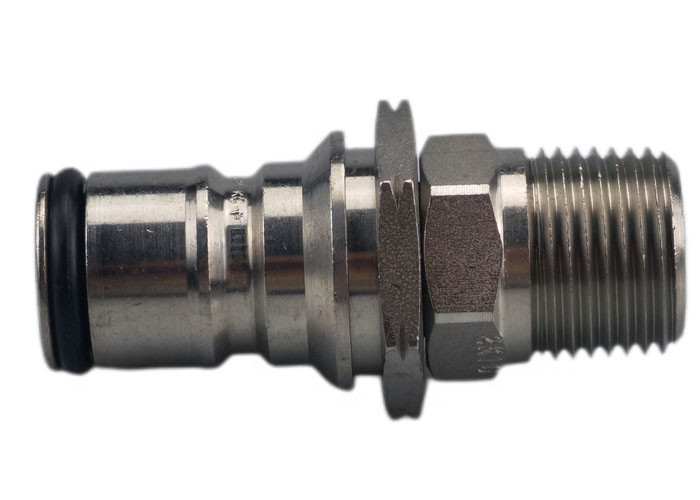

Used with various liquids and gases Stainless Steel Quick Coupling
Applications
• Chemical • Food and Beverage • Military • Aerospace
Features
CB-9-A Series stainless steel couplings can be used with various liquids and gases. They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines.
| Body Size | PARTNO. | Thread | A | B | Hex |
| 1/4" | CB-S1L-9MN-A | 1/8-27 | 2.18 | 1.06 | 0.81 |
| 1/4" | CB-S2L-9MN-A | 1/4-18 | 2.31 | 1.06 | 0.81 |
| 1/4" | CB-S3L-9MN-A | 3/8-18 | 2.31 | 1.06 | 0.81 |
| 1/4" | CB-S7L-9MN-A | 7/16-20* | 2.27 | 1.06 | 0.81 |
| Body Size | PARTNO. | Thread | C | D | Hex |
| 1/4" | CB-P2L-9MN-A | 1/4-18 | 1.98 | 1.01 | 0.69 |
| 1/4" | CB-P3L-9MN-A | 3/8-18 | 1.98 | 1.01 | 0.69 |
