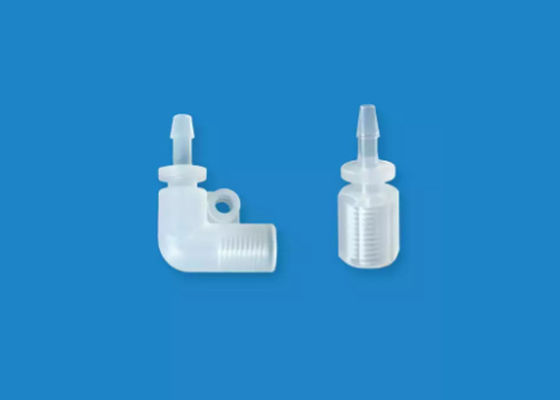

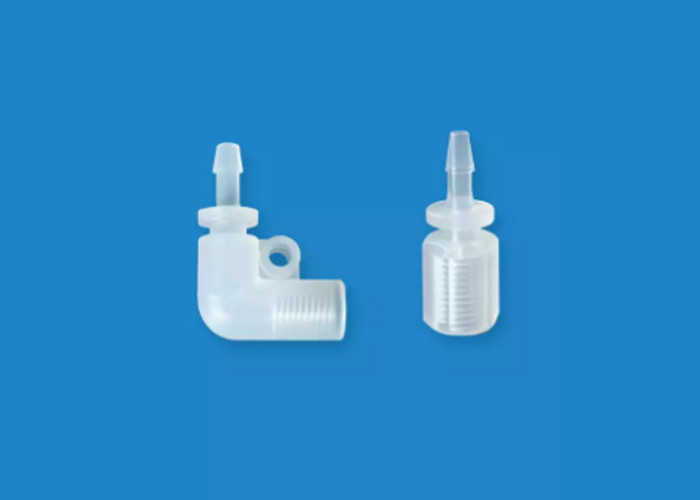

Plastic Union Threaded Screw Hydraulic Hose Couplings  For Rigid PTFE Tube

Plastic Union Threaded Screw Hydraulic Hose Couplings For Rigid PTFE Tube

  • High Light

    Plastic Union Hose Tube Connector

    ,

    Screw Hydraulic Hose Couplings

    ,

    Rigid PTFE Tube Quick Coupling

  • Connection
    Barb-to-Female
  • Application
    Liquid Instrument
  • Shape
    Equal
  • Technics
    Mould Injection
  • Medium
    Gas/Liquid
  • Head Code
    Rounded
  • Material
    PP And PTFE
  • Sterilization
    Gamma Ray
  • Place of Origin
    China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    Union
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

Plastic Union Threaded Screw Hydraulic Hose Couplings For Rigid PTFE Tube

Easy Installation Plastic Union Threaded Screw Connector for Rigid PTFE Tube



Fittings are a crucial component in setting up your fluid handling system with no leaks, flow restrictions or costly downtime. Our extensive selection includes barbed fittings for flexible tubing, threaded fittings for rigid tubing, quick-connect couplings, luer adapters and many other fittings. Fittings and adapters are available in sizing to connect anything from microbore tubing up to large pipes and in a variety of materials such as low-cost polypropylene (PP) for general applications to PTFE and PFA for corrosive media.



Product Function

Straight Barb-to-Female Adapters are used to navigate tight corners for flexible tubing transited to rigid tubing. One end is for connecting flexible tubing ID0.8-3.2mm, another end is for connecting flanged or flangeless fittings for rigid tubing.



Specification

Model No. Material Color Female Thread

Female

Tubing OD (mm)

Barbed End

(∅3.5/2.4/1.6)

Pressure Rating Room Temp. (psi /MPa)



Qty.

NI06-32-28P



PP (Medical Grade)

Natural PP





1/4-28 UNF





3.2/3.175

3.0/2.5/

2.0/1.6

Tubing ID 2.4-3.2mm 116/0.8

10-pk



NI06-32-28E



PTFE (Medical Grade)

Natural PTFE
NI06-24-28P



PP (Medical Grade)

Natural PP Tubing ID 1.6-2.4mm
NI06-24-28E



PTFE (Medical Grade)

Natural PTFE
NI06-16-28P



PP (Medical Grade)

Natural PP Tubing ID 1.0-1.6mm
NI06-16-28E PTFE (Medical Grade) Natural PTFE





Dimension (unit: mm)

Plastic Union Threaded Screw Hydraulic Hose Couplings  For Rigid PTFE Tube 0



Application Note



1. Straight thread to barbed adapters need to match with male fittings of same thread type.

2. One-Piece Fittings Installation Steps:

a. Prepare 1 pieces same male thread type flanged or flangeless fittings with tubing assembly

b. Insert the assembly into the receiving ports, pushing the tubing into the port until it bottoms out.

d. Finger tighten the nut into the port until snug.

e. After several uses (especially at high pressure) the ferrule or flanged tube should be replaced.

f. Connect the flexible tubing into the barbed end



Plastic Union Threaded Screw Hydraulic Hose Couplings  For Rigid PTFE Tube 1

Plastic Union Threaded Screw Hydraulic Hose Couplings  For Rigid PTFE Tube 2

Plastic Union Threaded Screw Hydraulic Hose Couplings  For Rigid PTFE Tube 3
