Name: 1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-12
Price: 500.00 USD
Availability: InStock

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Product Name: Pneumatic Coupler

Standard: NPT

Thread: Male/female

Pressure: 700/3000 Psi

Temperature: -20℃ ~ 100℃

Usage: Oil Gas Water Industrial

Size: Everything You Need

Material: Brass,Carbon Steel,Stainless Steel

Highlight:

gases Brass Pneumatic Quick Coupling

liquids Brass Pneumatic Quick Coupling

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: carterberg

Certification: IATF16949

Model Number: CB-12

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000~20000 pc/month

Gallery

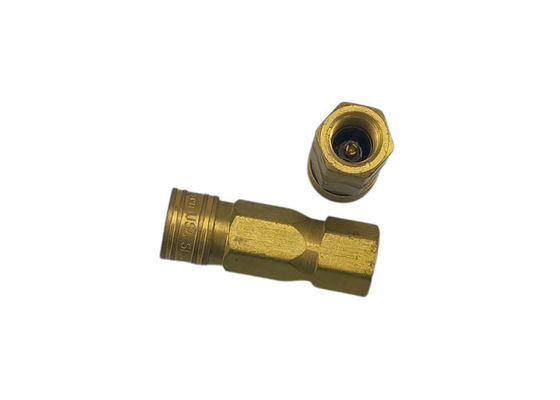

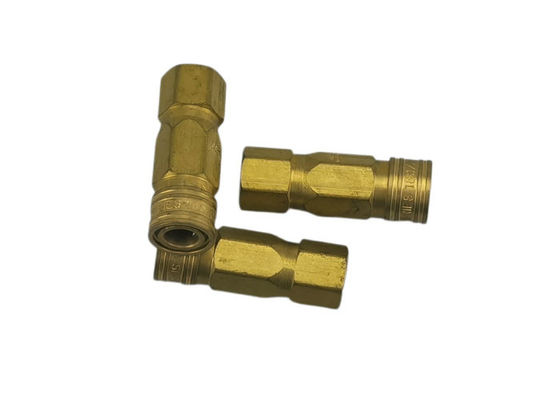

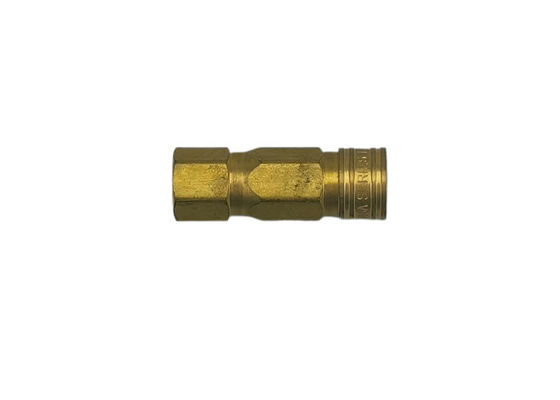

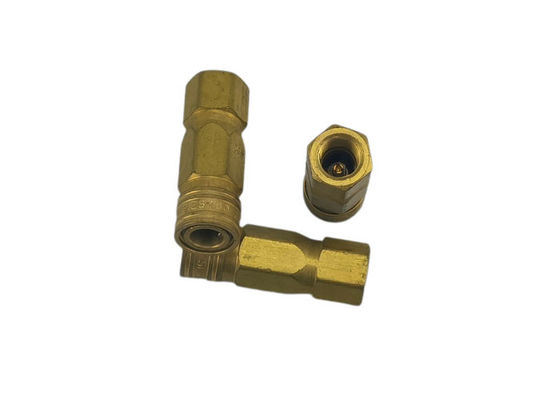

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling

Product Description

1/8 Nominal Use with compressed air, gases and liquids Pneumatic Quick Coupling

CB-12 Series Miniature Ball Lock Quick-Connect Couplings designed for use with compressed air, gases and liquids.

Standard Materials

Brass
Seals: NBR, Viton, EPDM

Features

Ball lock
Manual operation
Series A and B sockets mate with all Series A plugs
Series A socket has a tire valve. Series B socket has a other valve, which provides higher flow capacity.
Compatible with Hansen 180&280 Series

Rated Pressure and Flow Capacity

Series

Rated Pressure (PSI)

Rated Pressure (BAR)

Flow Capacity

(scfm)

Standard seal material

180

700

2.5

NBR

280

3000

207

10.0

NBR

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 0

Body Size	PARTNO.	Thread	A	B	HEX
1/8"	CB-S1B-12MN-A	1/8-27	1.41	0.63	0.56
1/8"	CB-S2B-12MN-B	1/4-18	1.38	0.63	0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 1

Body Size	PARTNO.	Thread	C	D	HEX
1/8"	CB-P1B-12MN-A	1/8-27	1.16	0.49	0.44
1/8"	CB-P2B-12MN-B	1/4-18	1.44	0.63	0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 2

Body Size	PARTNO.	Thread	A	B	HEX
1/8"	CB-S1B-12FN-B	1/8-27	1.78	0.63	0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 3

Body Size	PARTNO.	Thread	C	D	HEX
1/8"	CB-P1B-12FN-A	1/8-27	1.19	0.63	0.56

1/8 Nominal Use with compressed air, gases and liquids Brass Pneumatic Quick Coupling 4

Body Size	PARTNO.	Hose	C	D
1/8"	CB-P1B-12H-A	1/8’’	1.25	0.38
1/8"	CB-P2B-12H-B	3/16’’	1.50	0.38

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
