Hydraulics Medium High Pressure Clean Break Couplings Type FF-005

Hydraulics Medium High Pressure Clean Break Couplings Type FF-005

  • High Light

    Hydraulics Clean Break Couplings

    ,

    Medium High Pressure Clean Break Couplings

    ,

    High Pressure Hydraulic Couplings FF-005

  • Features
    Compact Design
  • Name
    Clean Break Couplings
  • Size
    5mm
  • Media
    Water
  • Seals
    FFKM
  • Material
    Stainless Steel
  • Application
    Hydraulic Controls
  • Working Pressure
    2500 Psi
  • Place of Origin
    Shanghai, China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    CB-2
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

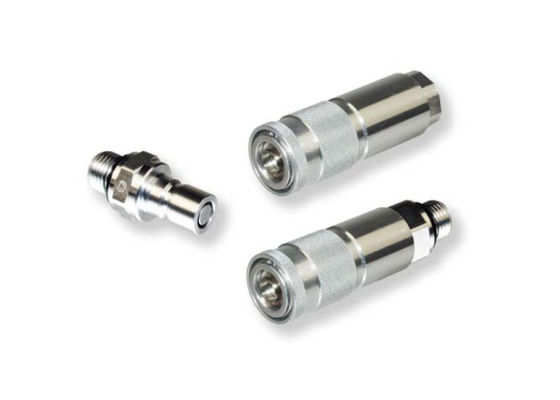

Hydraulics Medium High Pressure Clean Break Couplings Type FF-005

For Hydraulics Medium High Pressure Clean Break Couplings Type FF-005, 15-005



The Clean Break Coupling is available in sizes 5mm and port options BSP and NPT. The Clean Break Couplings, locking design and durable carbon steel material provide reliable quick connect solutions in applications with a working pressure of 700 – 720 bar up to 10,000 psi. The flat face design limits fluid leakage and contamination of hydraulic circuits in high pressure applications such as emergency cutting tools, mobile construction and industrial machinery and equipment.





Hydraulics Medium High Pressure Clean Break Couplings Type FF-005 0

Areas of application

• Hydraulic controls

• Teaching aggregate

• Tight installation spaces

Media

• Hydraulic fluids

• Self-lubricating substances

• Water

Features partly optionally, according to type

• Compact design

• Squirt-free operation

• Robust

• Low leakage

Size (mm) 5
Housing materials

• Zinc-plated steel, blue chromated / phosphated steel

• Stainless steel 1.4404 / 1.4571 (AISI 316 Li / 316 Ti) or equivalent

Max. static working pressure connected

• Up to 2,500 psi*

• For negative pressure when connected

Valve systems available • Both sides self sealing Clean Break technology (minimal loss or ingress during operation)
