| Brand Name: | carterberg |
| Model Number: | CB-9 |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000~20000 pc/month |

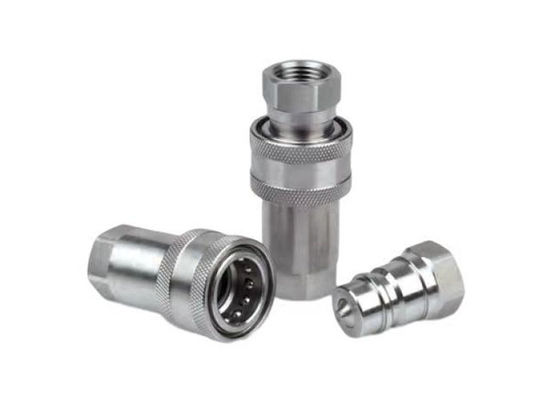

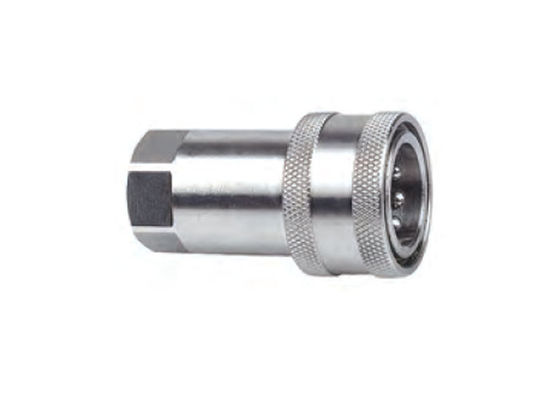

Compatible with PARKER 6600 Series Close type 316 Stainless Steel Quick Couplings
The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.
Specifications:
| Body Size (in) | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | 2 |
| Rated Pressure (PSI) | 3500 | 3000 | 3000 | 3000 | 2000 | 1000 | 1000 | 1000 |
| Rated Flow (GPM) | 3 | 6 | 12 | 28 | 50 | 88 | 120 | 240 |
| Temperature Range | -20℃to to +180℃ | |||||||
| Standard seal material | VITON | |||||||
Feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.The series conforms to the standard of ISO 7241-A.
6.Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
| ISO | PARTNO. | LS | ￠ D | HEX1 | A | T |
| 6.3 | CB-S2M-1SF | 50 | 26 | 19 | 13 | G1/4 NPT1/4 |
| 10 | CB-S3M-1SF | 56 | 31.5 | 22 | 14 | G3/8 NPT3/8 |
| 12.5 | CB-S4M-1SF | 66 | 38.5 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-S6M-1SF | 80 | 48 | 34 | 18 | G3/4 NPT3/4 |
| 25 | CB-S8M-1SF | 94 | 56 | 41 | 21 | G1 NPT1 |
| 31.5 | CB-S10M-1SF | 117 | 69.5 | 50 | 25 | G1-1/4 NPT1-1/4 |
| 40 | CB-S12M-1SF | 133 | 84 | 60 | 27 | G1-1/2 NPT1-1/2 |
| 50 | CB-S16M-1SF | 165 | 99 | 75 | 26 | G2 NPT2 |
| ISO | PARTNO. | LP | d | C | HEX2 | A | T |
| 6.3 | CB-P2M-1PF | 35.5 | 11.8 | 15 | 19 | 13 | G1/4 NPT1/4 |
| 10 | CB-P3M-1PF | 36.5 | 17.3 | 21.4 | 22 | 14 | G3/8 NPT3/8 |
| 12.5 | CB-P4M-1PF | 43.5 | 20.5 | 27 | 27 | 16 | G1/2 NPT1/2 |
| 20 | CB-P6M-1PF | 57 | 29 | 28 | 35 | 18 | G3/4 NPT3/4 |
| 25 | CB-P8M-1PF | 59.5 | 34.3 | 36 | 41 | 21 | G1 NPT1 |
| 31.5 | CB-P10M-1PF | 75 | 45 | 46 | 50 | 25 | G1-1/4 NPT1-1/4 |
| 40 | CB-P12M-1PF | 83.5 | 55 | 52 | 60 | 27 | G1-1/2 NPT1-1/2 |
| 50 | CB-P16M-1PF | 105 | 65 | 64 | 75 | 26 | G2 NPT2 |
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
