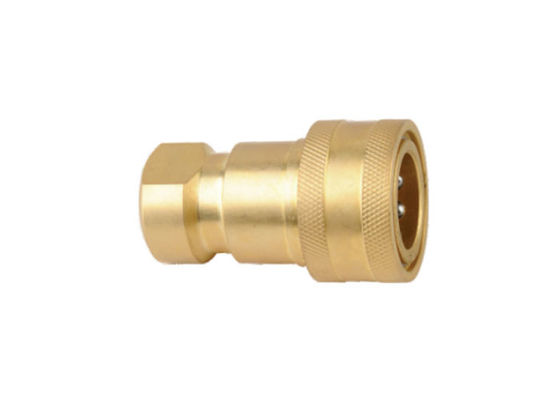

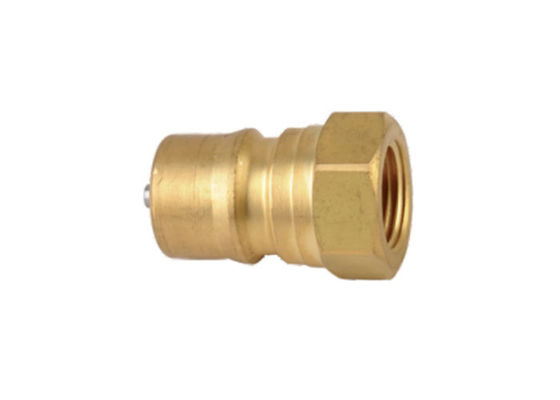

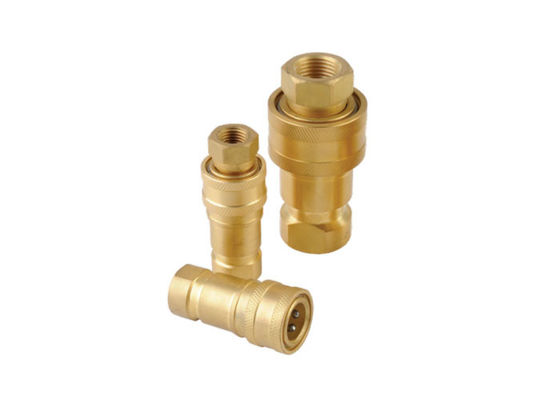

Open Close Type Brass Hydraulic Quick Couplings ISO7241B

Open Close Type Brass Hydraulic Quick Couplings ISO7241B

Brand Name: carterberg
Model Number: CB-13
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Detail Information
Place of Origin:
Shanghai, China
Certification:
IATF16949
Product Name:
Hydraulic Coupling
Application:
Pneumatic Tools
Standard:
BSP
Nominal:
1/4
Type:
Coupling
Pressure:
42Mpa
Temperature:
-20℃ ~ 80℃
Flow:
5
Packaging Details:
carton
Supply Ability:
5000~20000 pc/month
Highlight:

Close Type Hydraulic Quick Couplings

,

ISO7241B Hydraulic Quick Couplings

,

NBR Seal Hydraulic Quick Couplings

Product Description

ISO7241B Open and Close Type Brass Hydraulic Quick Couplings



hydraulic coupling is a device used for



Open and Close Type Hydraulic Quick Couplings

1.The Series hydraulic quick couplings are mainly used for construction equipment,forestry equipment, hydraulic machinery and oil equipment and other required hydraulic applications.

2. Poppet valves available to prevent uncoupled leakage . Poppet valves open automatically when

coupled within rated working pressure to keep the flow expeditely.

3. Material Brass

4. The series conforms to the standard of ISO7241- B

5. Compatible with PARKER 60 Series , FASTER HNV Series AEROQUIP FD45 Series and HANSEN HK Series.

BRASS

BODY SIZE Rated Pressure (PSI) Rated Flow (GPM) Temperature range(std seals) Standard seal material
1/4" 5000 3 -20℃~+80℃ NBR
3/8" 4000 6
1/2" 4000 12
3/4" 3000 28
1" 3000 50





Body Size PARTNO. LS Φ D HS A T
1/4" CB-S2B-1FG 58 28.5 19 13 G1/4
1/4" CB-S2B-1FN 58 28.5 19 13 NPT1/4
3/8" CB-S3B-1FG 65 35 22 14 G3/8
3/8" CB-S3B-1FN 65 35 22 14 NPT3/8
1/2" CB-S4B-1FG 74 44.5 28.5 18 G1/2
1/2" CB-S4B-1FN 74 44.5 28.5 18 NPT1/2
3/4" CB-S6B-1FG 92 54 36 22 G3/4
3/4" CB-S6B-1FN 92 54 36 22 NPT3/4
1" CB-S8B-1FG 105 65 41 23 G1
1" CB-S8B-1FN 105 65 41 23 NPT1



Body Size PARTNO. LP C HP A T
1/4" CB-P2B-1FG 35.5 22.8 19*6角 13 G1/4
1/4" CB-P2B-1FN 35.5 22.8 19*6角 13 NPT1/4
3/8" CB-P3B-1FG 40 25 22*6角 14 G3/8
3/8" CB-P3B-1FN 40 25 22*6角 14 NPT3/8
1/2" CB-P4B-1FG 46.5 28 27*6角 18 G1/2
1/2" CB-P4B-1FN 46.5 28 27*6角 18 NPT1/2
3/4" CB-P6B-1FG 56 36 36*6角 22 G3/4
3/4" CB-P6B-1FN 56 36 36*6角 22 NPT3/4
1" CB-P8B-1FG 65 45 41*6角 23 G1
1" CB-P8B-1FN 65 45 41*6角 23 NPT1
