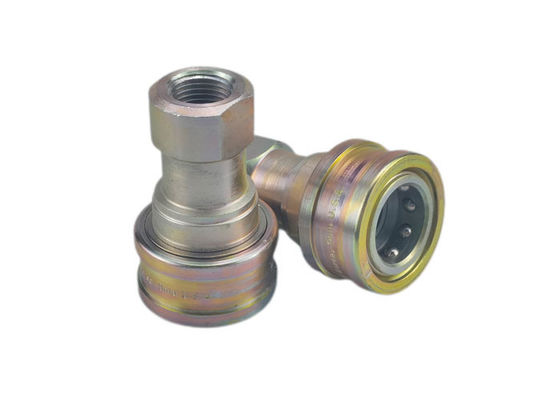

CB-1-B 10,000psi Hydraulic Quick Coupler for Rugged High Pressure Applications

Negotiation
MOQ
Negotiation
Price
CB-1-B 10,000psi Hydraulic Quick Coupler for Rugged High Pressure Applications
Features Gallery Product Description Request A Quote
Features
Specifications
Rated Pressure: 10,000psi
Rated Flow: 8lpm
Application: 10,000 Psi Hydraulic Applications
Type: Fittings
Material: Carbon Steel
Product Name: Hydraulic Quick Coupler
Standard: ISO9001
Oem: Avaliable
Highlight:

ISO Hydraulic Couplers

,

10000psi ISO Hydraulic Couplers

,

IATF16949 iso quick coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-1
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

10,000 psi ball latch contact area for long surface life in rugged high pressure applications hydraulic coupling



where fluid coupling is used?



CB-1-B Series ball latch has a greater surface contact area for long surface life in rugged high pressure applications. The maximum operating pressure is 10,000 psi.

Applications & Markets • 10,000 psi hydraulic applications • Hydraulic tool • Hydraulic ram and work loading



Features

  1. Safety sleeve lock prevents accidental disconnection
  2. Heavy duty back-up ring prevents O-Ring extrusion
  3. Heat treated and plated steel for greater wear and corrosion resistance
  4. Self-sealing poppet valves provide excellent high and low pressure sealing
  5. Standard seal material: FKM
  6. Standard body material: High resistance carbon steel with zinc trivalent plating

  1.



CB-1-B 10,000psi Hydraulic Quick Coupler for Rugged High Pressure Applications 0CB-1-B 10,000psi Hydraulic Quick Coupler for Rugged High Pressure Applications 1



Body Size PARTNO. Thread A B HEX
3/8" CB-S3S-1FN-B 3/8-18 2.56 1.27 0.94
3/8" CB-P3S-1FN-B 3/8-18 2.12 - 0.94


Our Services:



1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
