| Brand Name: | CEJN |
| Model Number: | H951400 |
| MOQ: | Negotiation |
| Price: | Negotiation |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 5000~20000 pc/month |

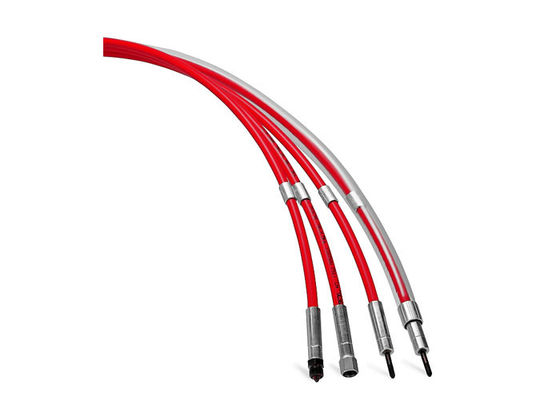

Custom made assemblies In accordance DIN EN1829-2 Hose 400 MPa DN5 8 layers Ultra High Pressure Hose
Hose 400 MPa DN5 8 layers
Water jetting / HydraulicHydraulicCoupling compatible
Top operator safety
Great flexibility
Wide range of hydraulic and water jetting applications
Certified and traceable with CiS
Custom made assemblies
In accordance DIN EN1829-2
The 400 MPa hose is for applications operating at extremely high pressures that requires maximum safety. This unique hose goes past where conventional products stop, working flawlessly at 400MPa, making it a real 'stand-out' product on the market. Its extreme working pressure is due to the eight spiralized layers of maximum strength tensile steel wire with a polyoxymethylene (POM) inner and the polyamide cover. In hydraulic systems, its low volumetric expansion provides fast response time while the smooth inner bore (4.8mm) gives a minimized pressure drop and the change in length is +/-2%. The highly kink-resistant steel-reinforced construction, abrasion-resistant covers together with a superior chemical resistance gives a hose with long-lasting service life, even in the most demanding hydraulic applications. Benchmark testing shows this hose is capable of withstanding over 10000 MWP impulses at 70°C.
Applications: 1. Wind power installations 2. Hydraulic tooling for railway rolling stock axle/wheel separation 3. Mining rock-face cracking 4. Ultra high-pressure testing equipment 5. Hydraulic pre-tensioning systems 6. Hydro-forming 7. Water jet cutting
The lowest rated component of the assembly will decide the Maximum Working Pressure (MWP). For example, if a hose has a lower MWP than the selected fitting, the MWP of the hose is the MWP of the hose kit.
| Design |
Inner tube of polyoxymethylene (POM), 8 spiral layers of maximum tensile steel wire, outer sheath of polymide (PA) |
| ID x OD | 4.8 x 15.1 mm |
| Max. working pressure | 400 MPa |
| Min. burst pressure | 800 MPa |
| Min. bend radius | 200 mm (7.9") |
| Weight | 633 g/m (22.3 oz) |
| Temperature range Hydraulic | -10°C — +70°C (14°F — +158°F) |
| Temperature range Water Jetting | -10°C — +70°C (14°F — +158°F) |
