Wide range of applications Hose 280MPa DN5 6 layers Ultra High Pressure Hose
Hose 280MPa DN5 6 layers
Applications: 1. Pressure vessel and heat exchanger tube cleaning in the chemical and oil refining industries. 2. Industrial cleaning including the construction and shipbuilding sectors. 3. Effective in the removal of built-up layer of sealants, paints or sealed in grime from large areas of concrete, asphalt and metal exteriors. 4. Hydro-demolition of concrete, road services and other constructions. 5. High pressure water cutting. 6. Hydroforming of sheet steel.
Water jetting / HydraulicHydraulicCoupling compatible
Top operator safety.
Great flexibility.
Wide range of applications.
Certified and traceable with CiS.
Custom made assemblies.
In accordance DIN EN1829-2.

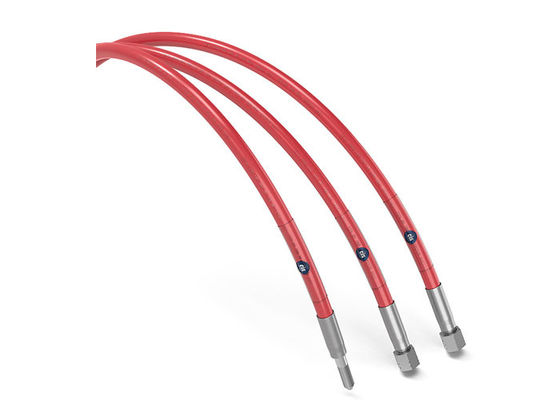

This high pressure hose is designed for general water cleaning, blasting applications as well as hydraulic applications in both on and offshore environments. The 6 layers of high tensile steel make this an extremely safe and robust hose to work with for the operator, without compromising on flexibility. Minimal volumetric expansion means the overall length of the hose does no vary more than +/-2%. The smooth POM (4.8mm) helps to keep pressure drops to a minimum in tight routing and provide robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 30000 MWP impulses at 70°C.
| Design |
Inner tube polyoxymethylene, 6 spiral layers of maximum tensile steel wire, outer sheath of polyamide. |
| ID x OD | 4.8 x 13.3 mm |
| Max. working pressure | 280 MPa |
| Min. burst pressure | 700 MPa |
| Min. bend radius | 200 mm (7.9") |
| Weight | 470 g/m (16.5 oz) |
| Temperature range Hydraulic | -10°C — +100°C (14°F — +212°F) |
| Temperature range Water Jetting | -10°C — +70°C (14°F — +158°F) |
