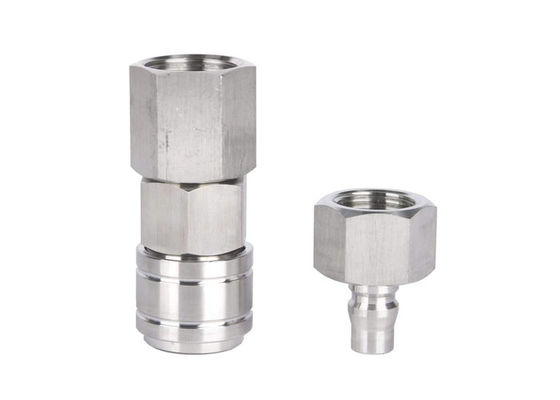

C-type quick connector stainless steel 304 316L self-locking connector PU trachea pagoda thread pneumatic coupling
Advantages: Simple structure, light weight, various of connection.
Application: pneumatic tools, automotive, compressed air, machinery equipments and compressor.
Interchangeability: Nitto HI-CUPLA series, CEJN 315 Series. Rectus 13KA series.
Working Pressure:1.5MPa.
Working Temperature: -20℃ to +120℃.
SS304 and brass material is optional
| PARTNO. | Body Size |
| SM20 | Stainless steel Male thread, diameter 13mm(R1/4”) |
| SM30 | Stainless steel Male thread, diameter 16mm(R3/8”) |
| SM40 | Stainless steel Male thread, diameter 21mm(R1/2”) |
| SM400 | Stainless steel Male thread, diameter 21mm(R1/2”) |
| SM600 | Stainless steel Male thread, diameter 26mm(R3/4”) |
| SM800 | Stainless steel Male thread, diameter 33mm(R1”) |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
