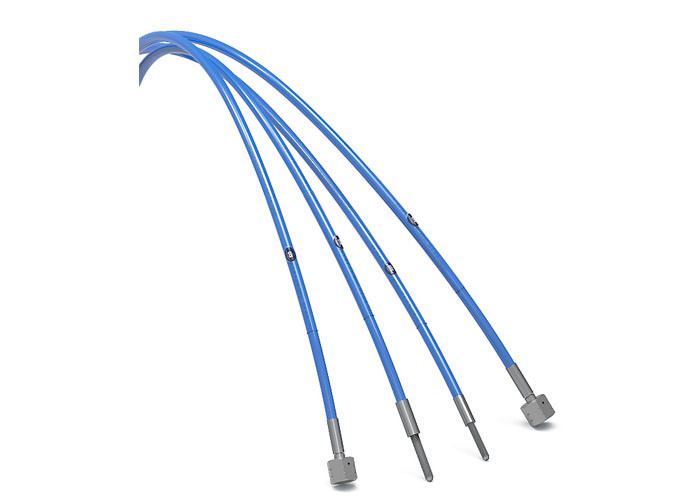

Water jetting Hose 210MPa, DN3 4 layers Ultra High Pressure Hose
Hose 210MPa, DN3 4 layers
Water jetting / HydraulicHydraulicCoupling compatible
Applications: 1. Heat exchanger tube cleaning in the chemical and oil refining industries. 2. Combination with waterblast lances in industrial cleaning including the construction and shipbuilding sectors. 3. Small bore high pressure tube cleaning in petrochemical and power plants. 4. Removal of built-up layer of sealants, paints or sealed in grime from concrete, asphalt and metal exteriors. 5. Hydro-demolition concrete, road services and other constructions. 6. Suitable for hydraulic control systems.
This high pressure hose is designed for heat exchanger tube cleaning, blasting applications as well as hydraulic applications in both on and offshore environments. The 4 layers of high tensile steel make this an extremely safe hose to work with for the operator, without compromising on flexibility. Low volumetric expansion (12%) means the overall length of the hose does no vary more than +/-2%. The smooth Polyoxymethylene bore (3.0mm) helps to keep pressure drops to a minimum and provide robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 30000 impulses at 70°C.
Top operator safety.
Flexible and light weight to work with into difficult areas.
Wide range of applications.
Certified and traceable with CiS.
Custom made assemblies.
Standard assemblies (see drawing specifications).
In accordance DIN EN1829-2.
| Design |
Inner tube polyoxymethylene, 4 spiral layers of maximum tensile steel wire, outer sheath of polyamide. |
| ID x OD | 3.0 x 7.9 mm |
| Max. working pressure | 210 MPa |
| Min. burst pressure | 525 MPa |
| Min. bend radius | 100 mm (3.9") |
| Weight | 120 g/m (4.2 oz) |
| Temperature range Hydraulic | -40°C — +100°C (-40°F — +212°F) |
| Temperature range Water Jetting | -10°C — +70°C (14°F — +158°F) |
