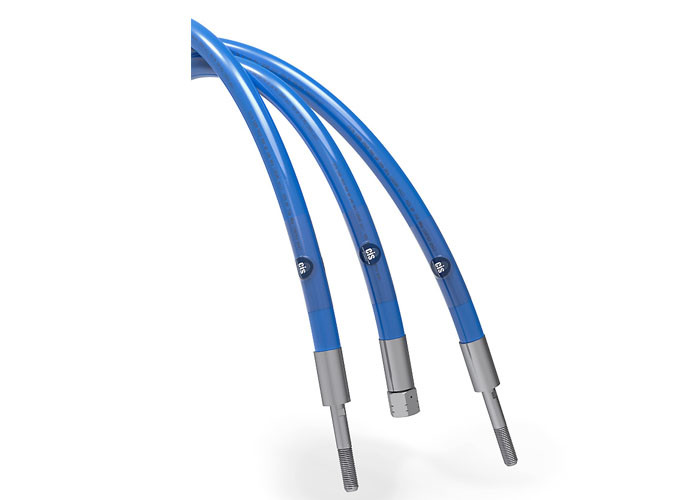

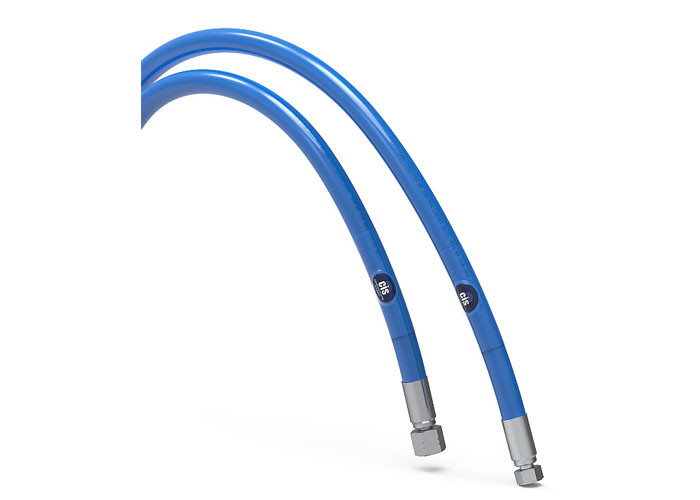

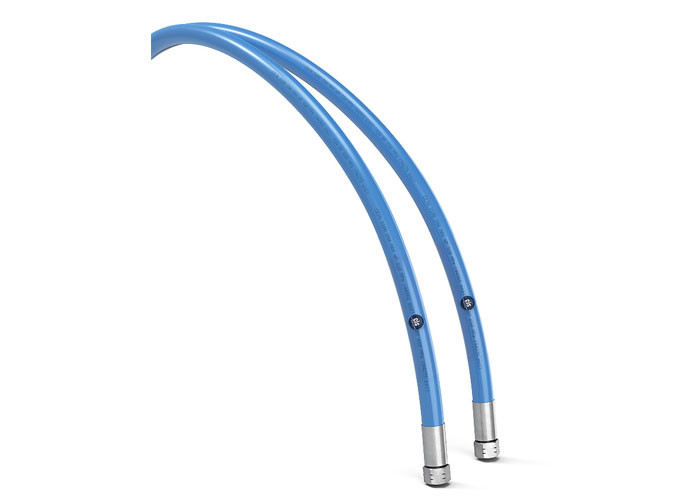

Hose 140 MPa, DN4 4 layer Super flexible, light weight 4 layer construction Ultra High Pressure Hose
Water jetting / HydraulicHydraulicCoupling compatible
This high pressure hose is designed for flexible routing in tight spaces in water jetting as well as hydraulic applications, in both on and offshore environments. The kink resistant 2 spiral layers of high tensile steel make this an extremely safe hose bonded together with 2 open layers of steel wire strengthening the outer cover of polyurethane giving outstanding resistance to wear. Low volumetric expansion (15%) means the overall length of the hose does not vary more than +/-2% and maintains fast response times in hydraulic circuits. The smooth polyamide bore (4.0mm) helps to keep pressure drops to a minimum despite its compact size (9.7mm) and provides robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 30000 impulses at MWP and 70°C.
Applications: 1. Flexible hydraulic connections in the chemical and oil refining industries 2. Industrial cleaning including the shipbuilding and construction sectors 3. Effective in the removal of built-up layer of sealants, paints or sealed in grime from tight spaces 4. Flexible whip hoses for hydraulic tooling 5. Promoting safe and flexible operation of chemical fluids systems
| Design |
Inner tube polyamide, 6 spiral layers of maximum tensile steel wire, outer sheath of polyamide. |
| ID x OD | 19.6 x 33.0 mm |
| Max. working pressure | 140 MPa |
| Min. burst pressure | 350 MPa |
| Min. bend radius | 350 mm (13.8") |
| Weight | 2100 g/m (73.9 oz) |
| Temperature range Hydraulic | -40°C — +100°C (-40°F — +212°F) |
| Temperature range Water Jetting | -10°C — +70°C (14°F — +158°F) |
