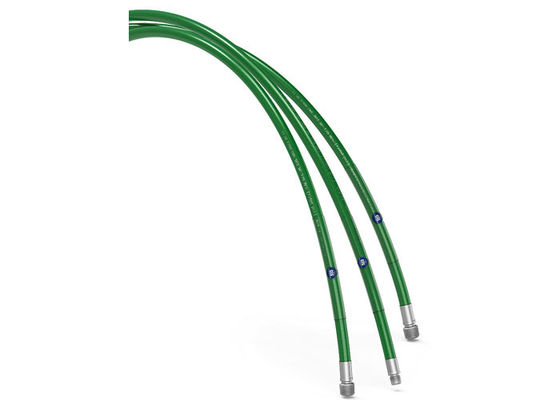

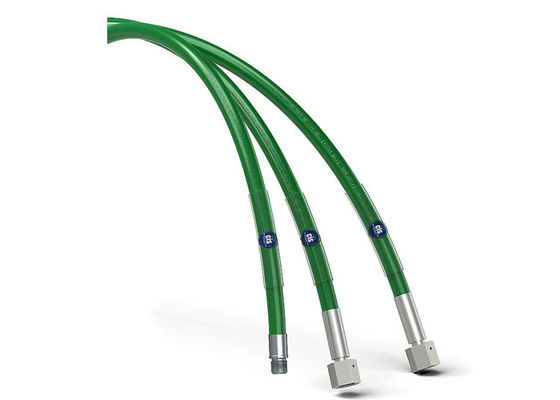

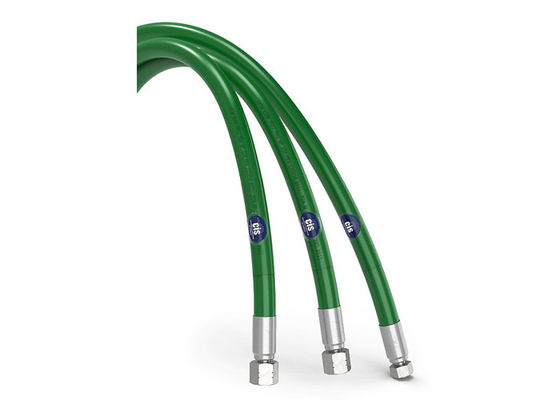

High pressure service for tube cleaning in the chemical and oil refining Hose 110 Mpa Ultra High Pressure Hose
Water jetting / HydraulicHydraulicCoupling compatible
This high pressure hose is designed for water cleaning and blasting applications in tight spaces as well as hydraulic applications in both on and offshore environments. The 2 layers of high tensile steel makes this a light weight and safe hose to work with, without compromising on flexibility. Low volumetric expansion means the overall length of the hose does no vary more than +/-2%. The smooth POM bore (6.4mm) helps to keep pressure drops to a minimum despite its compact size (11.6mm) and provides robust chemical resistance. Benchmark testing shows this hose is capable of withstanding over 30000 MWP impulses at 70°C.
Applications: 1. High pressure service for tube cleaning in the chemical and oil refining industries 2. Industrial cleaning including the shipbuilding and construction sectors 3. Effective in the removal of built-up layer of sealants, paints or sealed in grime 4. Flexible lance applicaions at 75MPa to MWP 5. Promoting safe and flexible operation of chemical fluids systems
| Design |
Inner tube polyoxymethylene, 2 spiral layers of maximum tensile steel wire, outer sheath of polyamide. |
| ID x OD | 6.4 x 11.6 mm |
| Max. working pressure | 110 MPa |
| Min. burst pressure | 275 MPa |
| Min. bend radius | 110 mm (4.3") |
| Weight | 200 g/m (7.0 oz) |
| Temperature range Hydraulic | -40°C — +100°C (-40°F — +212°F) |
| Temperature range Water Jetting | -10°C — +70°C (14°F — +158°F) |
