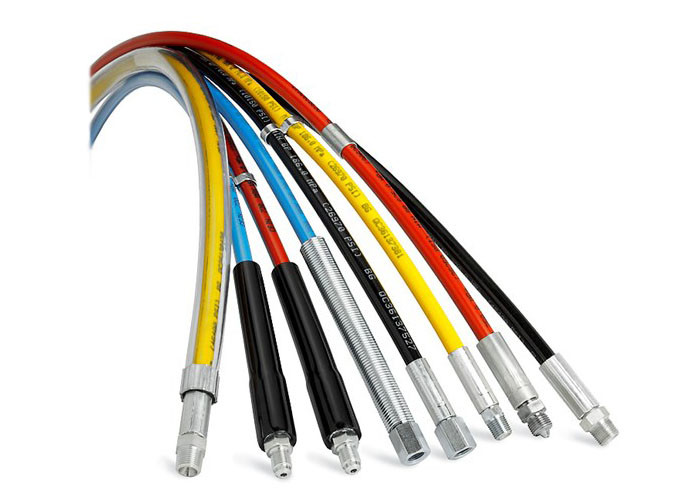

70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant

Negotiation
MOQ
Negotiation
Price
70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Hydraulic Hose
Color: Various
ID X OD: 9.8 X 17.9 Mm
Max. Working Pressure: 70 MPa
Min. Burst Pressure: 230 MPa
Min. Bend Radius: 120 Mm
Weight: 440 G/m
Temperature: -40°C — +100°C
Highlight:

70Mpa Ultra High Pressure Hose

,

Ultra High Pressure Hose DN10

,

PA12 Kink Resistant Ultra High Pressure Hose

Basic Infomation
Place of Origin: Sweden
Brand Name: CEJN
Certification: IATF16949
Model Number: H95170
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Hydraulic Coupling compatible Hose 70 Mpa DN10 4 layer Ultra High Pressure Hose

HydraulicCoupling compatible

  • Suitable for hydraulic 70MPa applications
  • DN10 bore high flow
  • Kink-resistant steel wire reinforced construction
  • Excellent chemical resistance due to polyamide core tube
  • Wide range of fittings available







This CEJN high pressure hydraulic hose has a spiral steel reinforced, polymer construction, that picks up the requirement for a larger bore. The 2 spiral layers of high tensile steel make this an extremely safe hose. Together with the outstanding resistance to wear from the 2 additional open layers of steel wire minimising the spread of any tears in the polyurethane cover and giving stronger kink-resistance. Low volumetric expansion (8.6%) means the overall length of the hose does no vary more than +/-2% and gives fast response times in hydraulic systems. The smooth polyamide large bore (9.8mm) helps to keep pressure drops to a minimum and provide robust chemical resistance. The superior wear resistance and large bore makes this hose ideal for application requiring higher volumes of hydraulic fluid transmission in rough environments. Benchmark testing shows this hose is capable of withstanding over 200000 impulses at 70MPa and 100°C.





Applications: 1. High pressure service for general industrial and mobile hydraulic applications as well as with gases 2. Promoting flexible operation of jacking systems 3. Usable for a wide variety of fluids due to the polyamide core tube 4. For working pressure from 46.5 MPa (6.740 psi) to 70MPa (10153 psi)

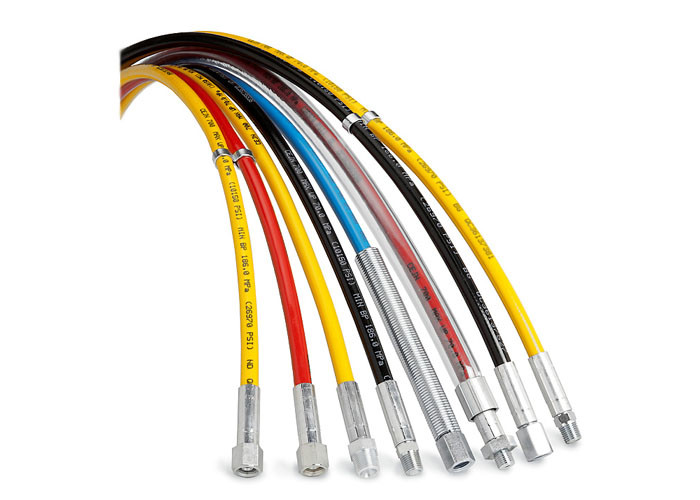

70Mpa Ultra High Pressure Hose DN10 4 Layer Kink Resistant 0





Design

Inner tube of Polyamide (PA12) Two spiral layers and two open spiral

layers of tensile steel wire. Outer sheath of polyurethane (PUR)

ID x OD 9.8 x 17.9 mm
Max. working pressure 70 MPa
Min. burst pressure 230 MPa
Min. bend radius 120 mm (4.7")
Weight 440 g/m (15.5 oz)
Temperature range Hydraulic -40°C — +100°C (-40°F — +212°F)



Our Services:



1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
