DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa

DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa

  • High Light

    DN5 Ultra High Pressure Hose


    Ultra High Pressure Hose 180MPa


    OD 11.6mm Ultra High Pressure Hose

  • Name
  • Color
  • ID X OD
    4.8 X 11.6 Mm
  • Max. Working Pressure
    180 MPa
  • Min. Burst Pressure
    450 MPa
  • Min. Bend Radius
    130 Mm
  • Weight
    280 G/m
  • Temperature
    -40°C — +100°C
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

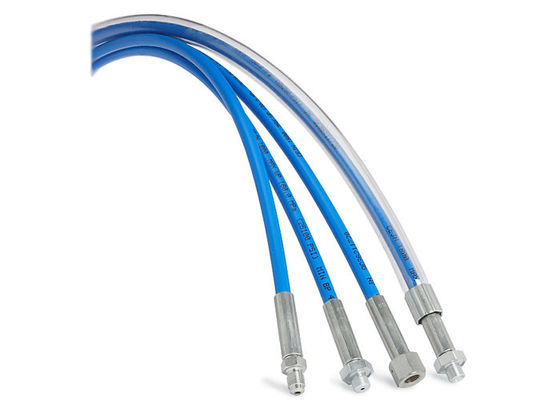

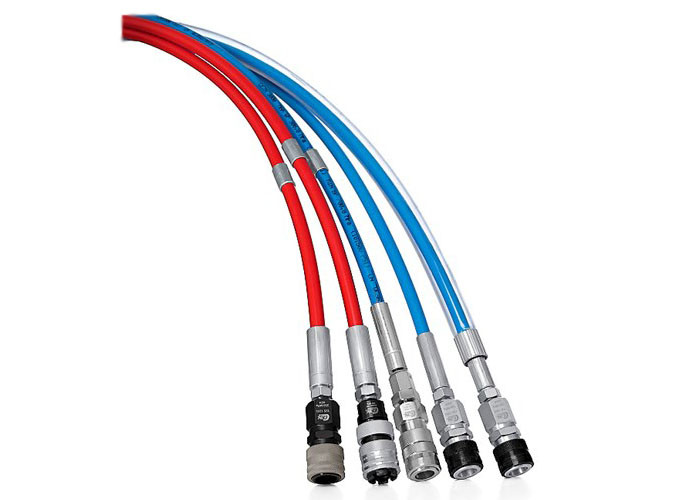

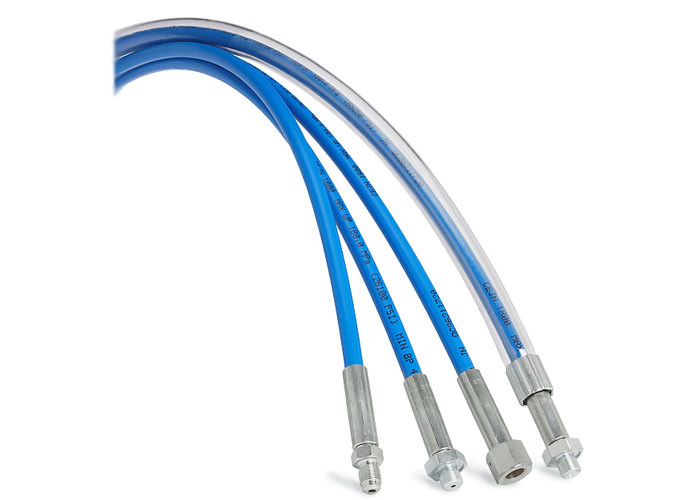

DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa

In accordance DIN EN1829-2 Hose 180 MPa DN5 4 layer Ultra High Pressure Hose

  • Top operator safety
  • Robust design
  • Light weight
  • Certified and traceable with CiS
  • Custom made assemblies
  • In accordance DIN EN1829-2


This 180MPa high pressure hose is designed for hydraulic applications such as bolt tensioning and is also suitable for water jetting applications in both on and offshore environments. The 4 layers of high tensile steel makes this robust and safe hose to work with, without compromising on flexibility. Low volumetric expansion (18%) means the overall length of the hose does no vary more than +/-2% at MWP giving fast response times in hydraulic systems.

Applications: 1. High pressure hydraulic service including bolt tensioning 2. Industrial cleaning including the shipbuilding and construction sectors 3. Tube cleaning in process industries 4. Hydrostatic test bench accessories 5. Promoting safe and flexible operation of chemical fluids systems


DIN EN1829-2 DN5 4 Layer Ultra High Pressure Hose 180MPa 0



Inner tube of polyoxymethylene (POM), 4 spiral layers of high

tensile steel wire, outer sheath of polymide (PA)

ID x OD 4.8 x 11.6 mm
Max. working pressure 180 MPa
Min. burst pressure 450 MPa
Min. bend radius 130 mm (5.1")
Weight 280 g/m (9.9 oz)
Temperature range Hydraulic -40°C — +100°C (-40°F — +212°F)
Temperature range Water Jetting -10°C — +70°C (14°F — +158°F)
