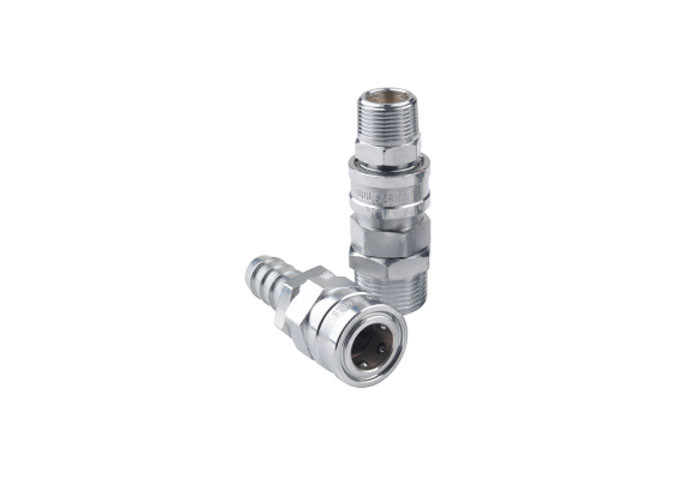

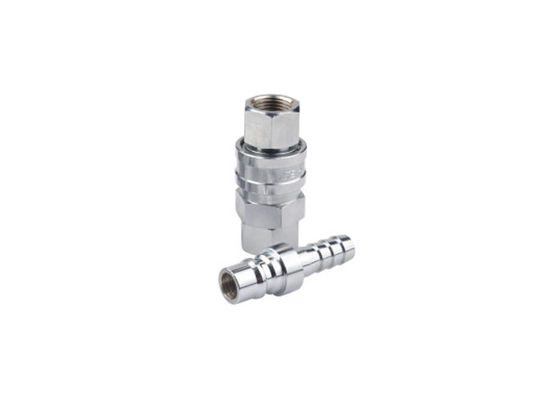

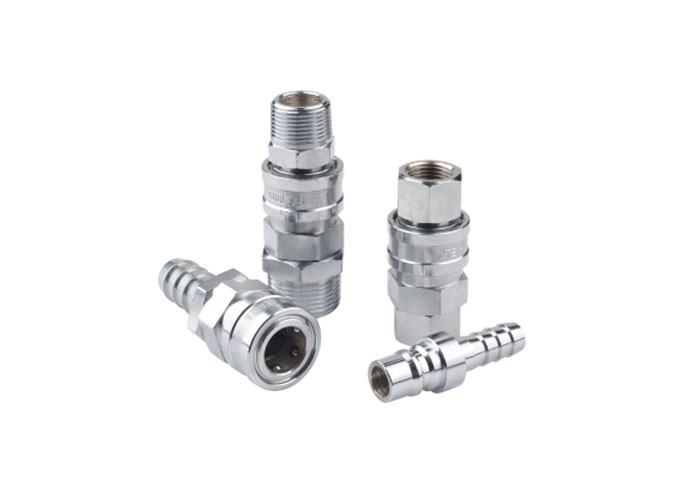

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler

Negotiation
MOQ
Negotiation
Price
NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Application: Pneumatic Tools
Product Name: Pneumatic Coupler
Standard: NPT
Nominal: 1/2-1
Type: Coupling
Pressure: 1.5Mpa
Temperature: -20℃ ~ 100℃
Flow: 28scfm
Highlight:

Shipbuilding Pneumatic Quick Coupling

,

NPT Pneumatic Quick Coupling

,

1.5Mpa Compressed Air Pneumatic Coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-12
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Steel Large Flow Application in Pneumatic tools,automotive,compressed air,shipbuilding Pneumatic Quick Couplings



Description: It is widely used in China market.

Features: Simple structure,various of connections.

Application: Pneumatic tools,automotive,compressed air,shipbuilding.

Working Pressure:1.5MPa

Working Temperature:-20 ℃ to +100 ℃



NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 0

PARTNO. LS Φ D HS A Φ T d
CB-S2S-12H-L 83 35 6 32*36.7 35 15 10
CB-S3S-12H-L 87 35 6 32*36.7 39 21 14
CB-S4S-12H-L 90 35 6 32*36.7 42 27 19.5

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 1

PARTNO. LS Φ D HS A T(PT) d
CB-S2S-12FN-L 58.5 35 6角32*36.7 16 PT1/2’’ 14P 13
CB-S3S-12FN-L 60 35 6角32*36.7 17 PT3/4’’ 14P 15
CB-S4S-12FN-L 60 35 6角32*36.7 19 PT1’’ 11P 15

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 2

PARTNO. LS Φ D HS A T(PT) d
CB-S2S-12MN-L 64 35 6 32*36.7 16 PT1/2’’ 14P 13
CB-S3S-12MN-L 66 35 6 32*36.7 18 PT3/4’’ 14P 15
CB-S4S-12MN-L 68 35 6 32*36.7 20 PT1’’ 11P 15

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 3

PARTNO. Lp C Hp A Φ T d
CB-P2S-12H-L 68 23.5 22 35 15 12.5
CB-P3S-12H-L 72 23.5 25 39 21 12.5
CB-P4S-12H-L 75 23.5 30 42 27 12.5

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 4

PARTNO. Lp C Hp A T(PT) d
CB-P2S-12FN-L 42 23.5 6 32*36.7 12 PT1/2’’ 14P 12.5
CB-P3S-12FN-L 43.5 23.5 6 32*36.7 15 PT3/4’’ 14P 12.5
CB-P4S-12FN-L 45.5 23.5 6 32*36.7 15 PT1’’ 11P 12.5

NPT Shipbuilding Pneumatic Quick Coupling Compressed Air Pneumatic Coupler 5

PARTNO. Lp C Hp A T(PT) d
CB-P2S-12MN-L 49 23.5 6 21*24 16 PT1/2’’ 11P 12.5
CB-P3S-12MN-L 51 23.5 6 27*31 18 PT3/4’’ 14P 12.5
CB-P4S-12MN-L 53 23.5 6 35*40 20 PT1’’ 11P 12.5





Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
