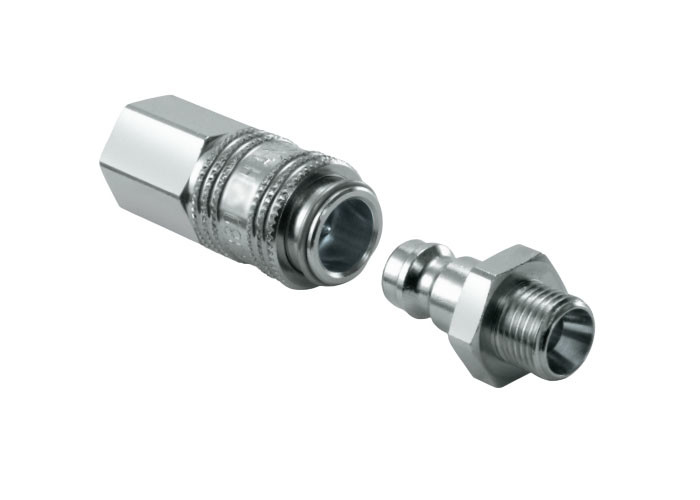

Premium Automatic One Way Shut Off Quick Disconnect Coupling Pneumatic Quick Coupling

Premium Automatic One Way Shut Off Quick Disconnect Coupling Pneumatic Quick Coupling

Brand Name: carterberg
Model Number: CB-12
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Detail Information
Place of Origin:
Shanghai, China
Certification:
IATF16949
Material:
316 Stainless Steel
Size:
1/4"-1''
Application:
Construction
Pressure:
250bar
Packing:
Carton
Technics:
Casting
Standard:
ISO
Name:
Quick Connect Couplings
Packaging Details:
carton
Supply Ability:
5000~20000 pc/month
Highlight:

Automatic Quick Disconnect Coupling

,

Pneumatic Quick Disconnect Coupling

,

One Way Shut Off Quick Coupling

Product Description

Premium automatic one-way shut off quick disconnect coupling Pneumatic Quick Coupling



CB-12-L Series is a premium automatic one-way shutoff quick disconnect coupling. Two sleeves must be actuated in sequence to bleed off back pressure and release the connector, preventing accidental uncoupling.

Applications & Markets • Construction • Maintenance and Repair • In-Plant/Industrial • Railyards • General Pneumatics

Features

  1. Pressure relieving feature fully vents downstream air, making connection/disconnection fast and easy, and eliminating hose whip
  2. Unique straight through design eliminates restrictive springs and poppet valves, allowing unimpeded air flow
  3. Two sleeve activation prevents accidental disconnect
  4. Standard body material: Zinc trivalent plated carbon steel
  5. Standard seal material: Buna-N

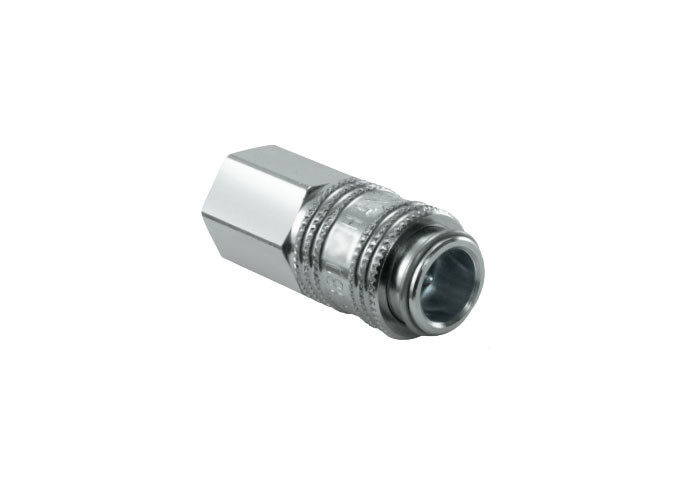

Premium Automatic One Way Shut Off Quick Disconnect Coupling Pneumatic Quick Coupling 0

Body Size PARTNO. Thread A B HEX
3/8" CB-S3S-12MN-L 3/8-18 3.80 1.25 1.00
3/8" CB-S3S-12MN-L 1/2-14 4.10 1.25 1.00
1/2" CB-S4S-12MN-L 1/2-14 4.43 1.38 1.13
1/2" CB-S4S-12MN-L 3/4-14 4.67 1.38 1.13

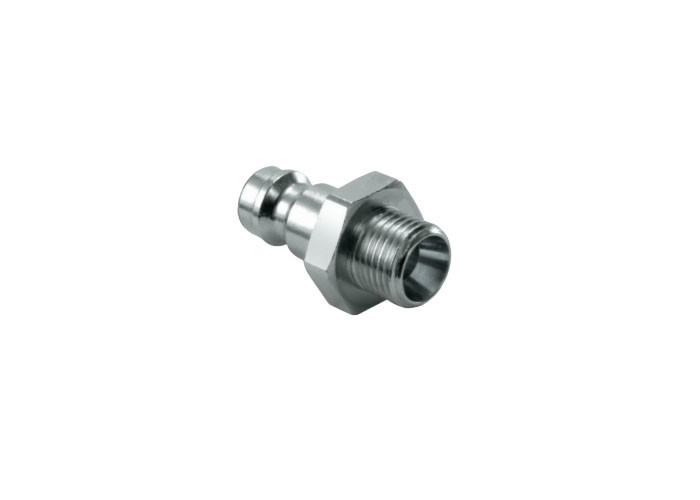

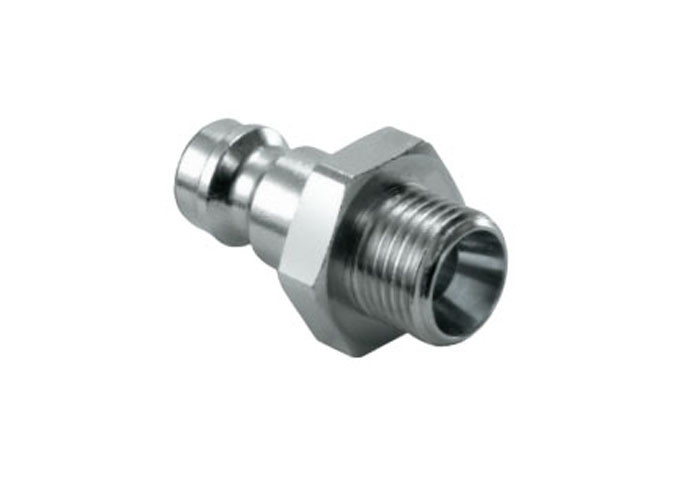

Premium Automatic One Way Shut Off Quick Disconnect Coupling Pneumatic Quick Coupling 1

Body Size PARTNO. Thread C D HEX
3/8" CB-P3S-12MN-L 1/4-18 1.88 0.72 0.63
3/8" CB-P3S-12MN-L 3/8-18 1.88 0.79 0.69
3/8" CB-P3S-12MN-L 1/2-14 2.09 1.01 0.88
1/2" CB-P4S-12MN-L 3/8-18 2.25 0.87 0.75
1/2" CB-P4S-12MN-L 1/2-14 2.44 1.01 0.88
1/2" CB-P4S-12MN-L 3/4-14 2.50 1.23 1.06
