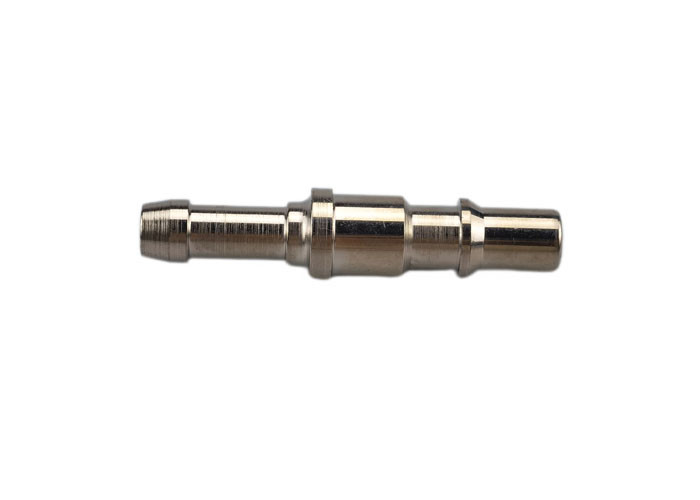

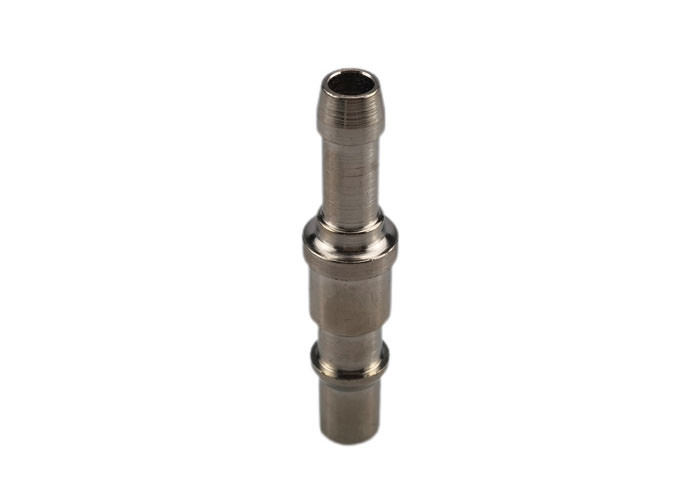

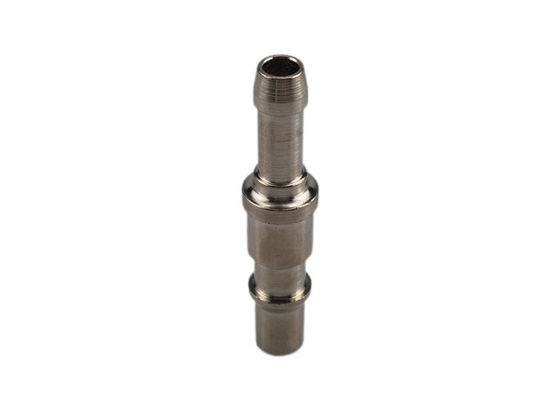

Zinc Plated Steel Valve Ring Lock High Flow Capacity Pneumatic Quick Connect

Zinc Plated Steel Valve Ring Lock High Flow Capacity Pneumatic Quick Connect

Brand Name: carterberg
Model Number: CB-12
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Detail Information
Place of Origin:
Shanghai, China
Certification:
IATF16949
Application:
Marine
Material:
Zinc Plated Steel
Connection:
Hose
Temperature:
-20℃ ~ 100℃
Size:
3/8''
Type:
Ring Lock
Head Code:
Round
Usage:
Joining Pipe Lines
Packaging Details:
carton
Supply Ability:
5000~20000 pc/month
Highlight:

Zinc Plated Steel Valve Ring Lock

,

Quick Connect Steel Valve Ring Lock

Product Description

Zinc Plated Steel Valve Ring lock High flow capacity pneumatic quick connect​



CB-12 Series Ring-Lock Quick-Connect Couplings have a unique interchange which Hansen designed for use with compressed air. Body sizes are 1/4" and 3/8".



Applications • Shipyards • General Pneumatics • Mining • Marine



Standard Materials

  • Zinc trivalent plated stee
  • Seals: NBR, Viton, EPDM

Features

  1. High Flow capacity
  2. Push to connect with a ring lock Sleeve
  3. Ring lock design prevents accidental disconnection
  4. To disconnect rotate sleeve 20 degrees
  5. Compatible with Hansen 3RL Series

Zinc Plated Steel Valve Ring Lock High Flow Capacity Pneumatic Quick Connect 0

Body Size PARTNO. Hose A B
1/4" CB-S2S-12H-K 1/4’’ 2.63 1.06
1/4" CB-S3S-12H-K 3/8’’ 2.63 1.06
1/4" CB-S3S-12H-K 1/2’’ 2.63 1.06
1/4" CB-S5S-12H-K 5/16’’ 2.63 1.06





Zinc Plated Steel Valve Ring Lock High Flow Capacity Pneumatic Quick Connect 1



Body Size PARTNO. Hose C D
1/4" CB-P2S-12H-K 1/4’’ 2.13 0.56
1/4" CB-P3S-12H-K 3/8’’ 2.13 0.56
1/4" CB-S4S-12H-K 1/2’’ 2.13 0.56
1/4" CB-P5S-12H-K 5/16’’ 2.50 0.81
