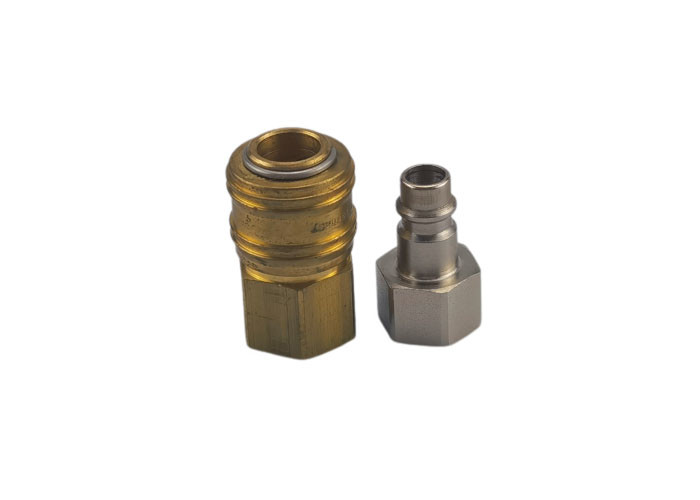

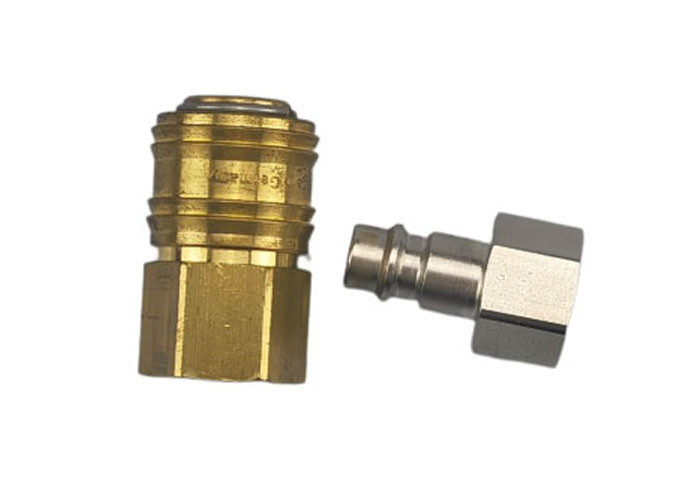

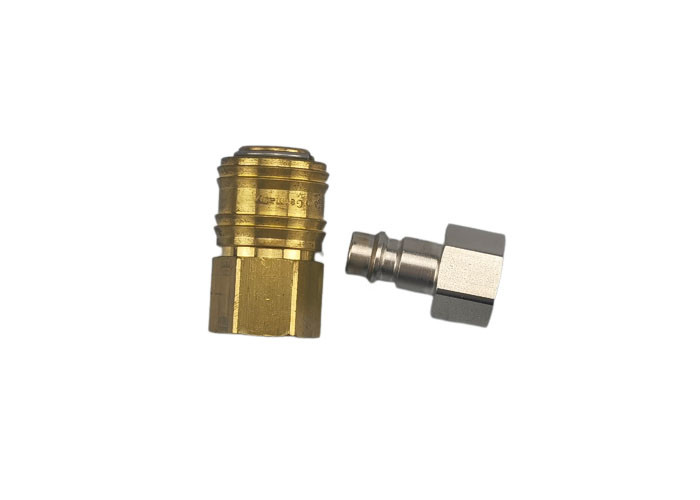

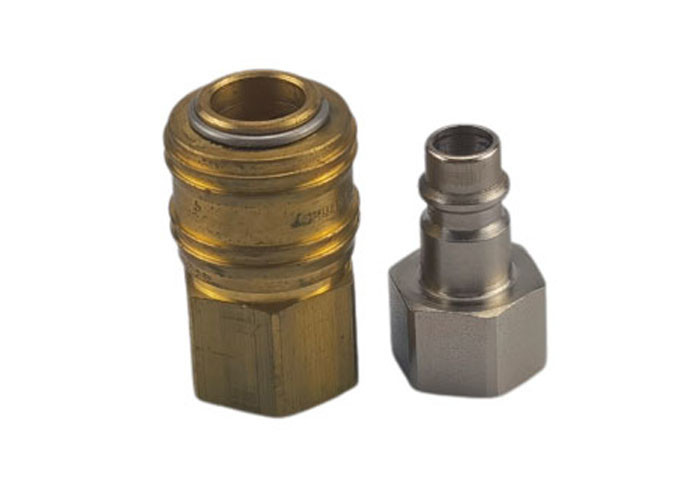

20 Bar Female Shut Off Pneumatic Quick Coupling

Negotiation
MOQ
Negotiation
Price
20 Bar Female Shut Off Pneumatic Quick Coupling
Features Gallery Product Description Request A Quote
Features
Specifications
Pressure: 20 Bar
Thread: Female
Temperature: -20℃ ~ 120℃
Product Name: Coupling
Application: Mining
Nominal: 3/8"
Type: Fittings
Flow: 80scfm
Highlight:

IATF 16949 Pneumatic Quick Coupling

,

0.25'' Pneumatic Quick Coupling

,

20 Bar female quick release coupling
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-12
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Pneumatic disconnect SHUT-OFF High flow capacity female quick release air connector



CB-12 Series Ring-Lock Quick-Connect Couplings have a unique interchange which Hansen designed for use with compressed air. Body sizes are 1/4" and 3/8".



Features

  1. High Flow capacity
  2. Push to connect with a ring lock Sleeve
  3. Ring lock design prevents accidental disconnection
  4. To disconnect rotate sleeve 20 degrees
  5. Compatible with Hansen 3RL Series

20 Bar Female Shut Off Pneumatic Quick Coupling 0



Body Size PARTNO. Thread A B HEX
1/4" CB-S1S-12FN-K 1/8-27 1.91 1.06 0.88
1/4" CB-S2S-12FN-K 1/4-18 1.91 1.06 0.88
1/4" CB-S3S-12FN-K 3/8-18 2.16 1.06 0.88
1/4" CB-S4S-12FN-K 1/2-14 2.43 1.06 1.00

20 Bar Female Shut Off Pneumatic Quick Coupling 1

Body Size PARTNO. Thread C D HEX
1/4" CB-P1S-12FN-K 1/8-27 1.36 0.65 0.56
1/4" CB-P2S-12FN-K 1/4-18 1.54 0.79 0.69
1/4" CB-P3S-12FN-K 3/8-18 1.88 0.94 0.81
1/4" CB-P4S-12FN-K 1/2-14 2.18 1.15 1.00







Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
