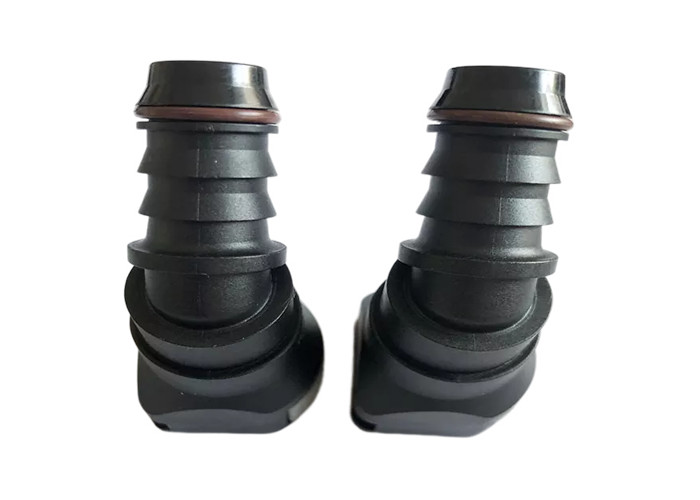

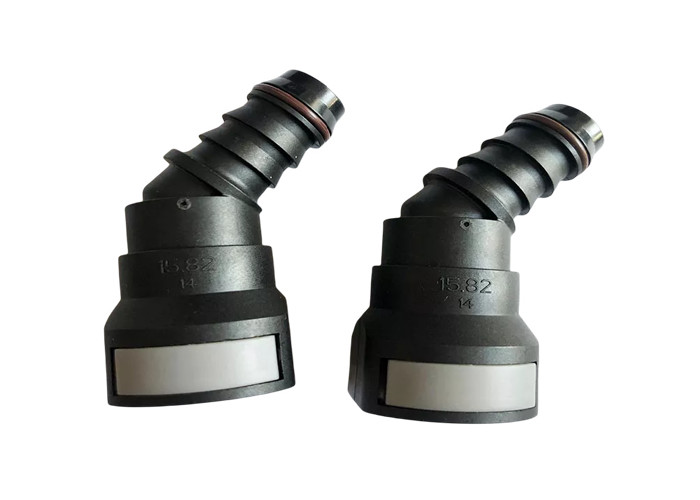

Fast assembly without tool 15.82mm fuel liquid plastic quick connectors
The design and production QCs are strictly accord with SAE J2044-2009 quick connector coupling specification for liquid fuel and vapor or emissions systerm. If the product does not meet customer needs,We can design and manufacture according to customers' requirements. Plug-in and self-locking structure enables connect and disconnect more quicker and easier.The space required for the operation is only the width of a finger on both sides,These features ensure quick connector can be high-density arrangement and an increase in customers design flexibility.
| Model | CB- H6 |
| Endform | Fir tree or rib |
| Certificate | IATF 16949:2016 |
| Excutive Standard | SAE J2044,TS 16949 |
| Shape | 45degree |
| Max barb end | 15.82mm-ID14 |
| Coupling | Female + male end piece |
| Type | Quick connector/quick disconnect/Fuel adapter/fuel fitting |
| Working pressure | 5 to 7 bar |
| Medium | Fuels,air,oil&oil vapours,water,water gasoline... |
| In O-ring | EPDM |
| Out O-ring | EPDM |
| Product advantages |
Fast assembly without tool -> time and cost reduction · robot assembly possible -> automated processes · compact building method -> employment in extremely close installation conditions possible · integrated seal - > optimal tightness |
Our Services:
|
1. Customized design, OEM is available. |
|
2. In-time & professional after sales service. |
|
3. Low MOQ, standard package, fast delivery. |
|
4. Special discount and protection are provided to our distributors. |
|
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |
