Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting

  • High Light

    Plastic Hydraulic Hose Couplings M6

    ,

    28UNF Male Plastic Quick Coupling

    ,

    Thread Flanged Hydraulic Hose Couplings

  • Connection
    Male
  • Application
    Lab, Industrial, Medical
  • Shape
    Equal
  • Technics
    Mould Injection
  • Thread Type
    M6 Male
  • Head Code
    Rounded
  • Material
    PTFE ,PP ,PFA
  • Feature
    Corrosive Resistant, Non-toxic
  • Place of Origin
    China
  • Brand Name
    carterberg
  • Certification
    IATF16949
  • Model Number
    Union
  • Minimum Order Quantity
    Negotiation
  • Price
    Negotiation
  • Packaging Details
    carton
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

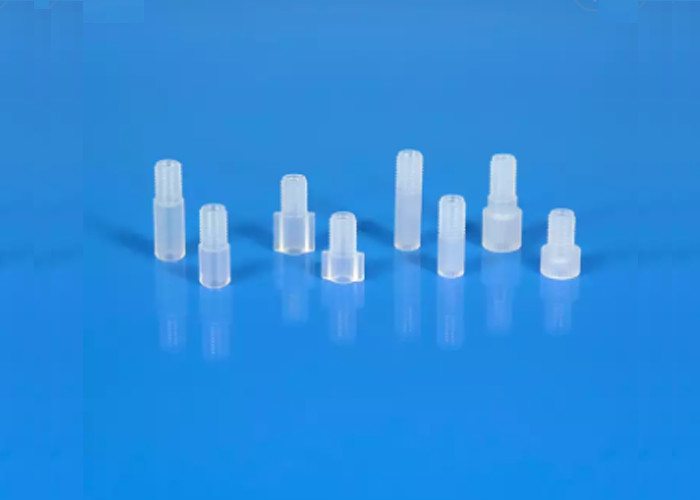

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting

Imported Material Plastic Connector M6 1/4-28UNF Male Thread Flanged Fitting



Product Feature

Flanged fittings perform well in high pressure (up to 1.5Mpa even higher) and non-movable systems.

PP or PTFE, 1/4-28UNF or M6 flangeless nut

Compatible with flat bottom receiving port

Finger-tight convenience, no wrenches require

User for standard rigid tubing OD2.5mm, 3.0mm, 1/18"(3.175mm), 3.2mm, 4.0mm

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting 0



Specification

Model No. Material Color Thread Pressure Rating (psi/Mpa) Tubing OD Qty.
Z-710-1/4-28P PP Blue 1/4-28UNF ≥ 217.5/1.5 3.2/3.175/ 3.0/2.5mm 10-pk
Z-710-1/4-28E PTFE
WD020A-1/4-28P PP



4.0mm

WD020A-1/4-28E PTFE
Z-710-M6P PP M6 3.2/3.175/ 3.0/2.5mm
Z-710-M6E PTFE
WD020A-M6P PP



4.0mm

WD020A-M6E

PTFE





Application Note



1. Choose 1/4-28 nut when receiving port is 1/4-28; Choose M6 nut when receiving port is M6.

2. Before flange the tubing, ensure the end of the tubing has a clean, square, burr-free cut. This is very important, as the square cut helps the tubing make full contact with the bottom of the mating port. Neglecting to properly cut the tubing could lead to dead volume, resulting in peak distortion such as fronting, tailing or broadening.

3. Two-Piece Fittings Installation Steps:

a. Flange the tubing end with exclusive flange tool

b. Silide the nut, insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.

c. Finger tighten the nut into the port until snug.

4. PP material is for non-corrosive or weak corrosive liquid; PTFE is for strong corrosive liquid.

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting 1

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting 2

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting 3

Plastic Hydraulic Hose Couplings M6 1/4 - 28UNF Male Thread Flanged Fitting 4



Our Services:



1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
