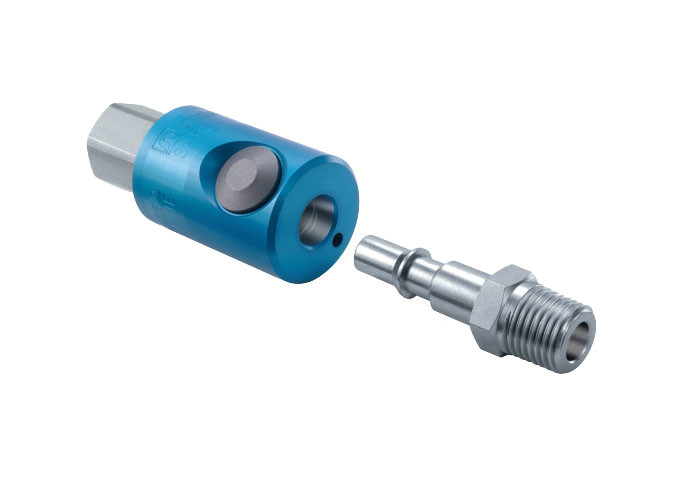

Industrial Plants Safe and easy to connect and disconnect female quick release coupling Pneumatic Quick Coupling
CB-12 Series is an Industrial Interchange pneumatic coupling with push button safety feature designed for use with compressed air. Two-step disconnect procedure shuts off air supply and releases downstream air pressure before plug can be removed from socket/female, which prevents hose whip.
Standard Materials
Features

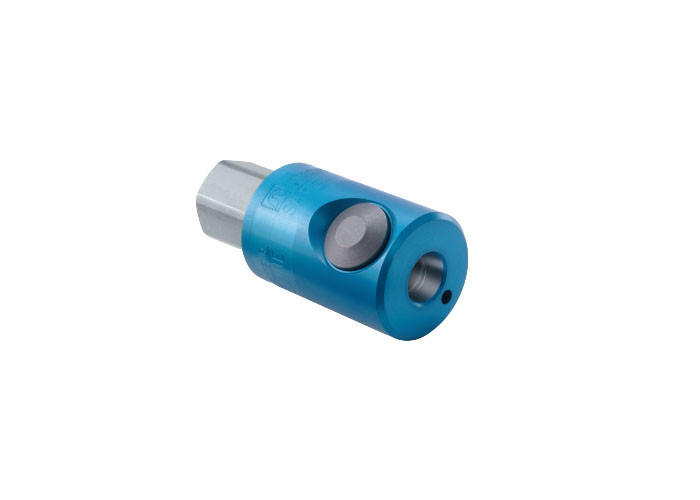

| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/4" | CB-S2S-12FN-F | 1/4-18 | 2.97 | 1.02 | 0.67 |
| 1/4" | CB-S3S-12FN-F | 3/8-18 | 3.18 | 1.02 | 0.87 |

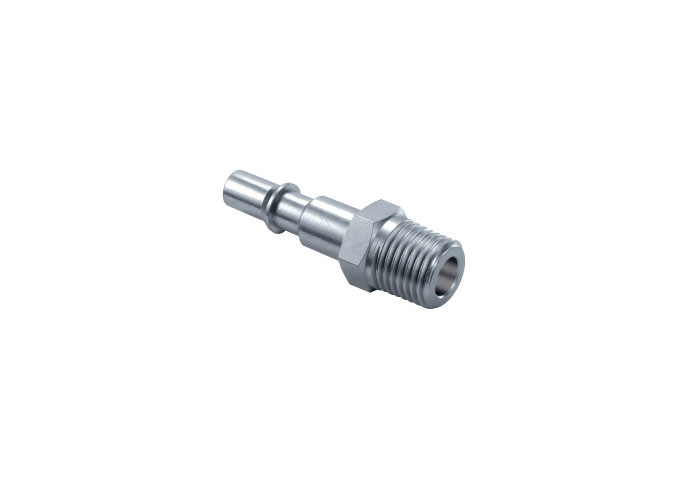

| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/4" | CB-P1S-12FN | 1/8-27 | 1.47 | 0.65 | 0.56 |
| 1/4" | CB-P2S-12FN | 1/4-18 | 1.63 | 0.79 | 0.69 |
| 1/4" | CB-P3S-12FN | 3/8-18 | 1.69 | 0.94 | 0.81 |
| 1/4" | CB-P2B-12FN | 1/4-18 | 1.63 | 0.78 | 0.69 |
| 1/4" | CB-P2L-12FN | 1/4-18 | 1.63 | 0.79 | 0.69 |
