1/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter

Negotiation
MOQ
Negotiation
Price
1/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter
Features Gallery Product Description Request A Quote
Features
Specifications
Connection: Female
Adapted Tube: Rigid Tubing
Shape: Equal
Technics: Mould Injection
Pressure: 0.8MPa
Color: Natural PP
Material: PP/PTFE
Adapted Medium: Gas/Liquid
Highlight:

Female Tee Plastic Connectors

,

Plastic Thread Adapter Tee Connectors

,

28UNF Thread Plastic Connectors

Basic Infomation
Place of Origin: China
Brand Name: carterberg
Certification: IATF16949
Model Number: HDPE
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Female Thread Adapter 1/4-28UNF Thread Tee Plastic Connectors



Application Note:



1. Female T connector need to match with male connector of same thread.

2. One-Piece Fittings Installation Steps:

a. Choose same male thread connector (coned nut with ferrule or flange joint with flanged tubing)

b. Slide the male nut, followed by the ferrule or flared tube end, at least 3/16” (4.7625mm) from the ferrule or flanged tubing end.

c. Insert the assembly into the receiving port, pushing the tubing into the port until it bottoms out.

d. Finger tighten the nut into the port until snug.

e. After several uses (especially at high pressure) the ferrule or flared tube should be replaced

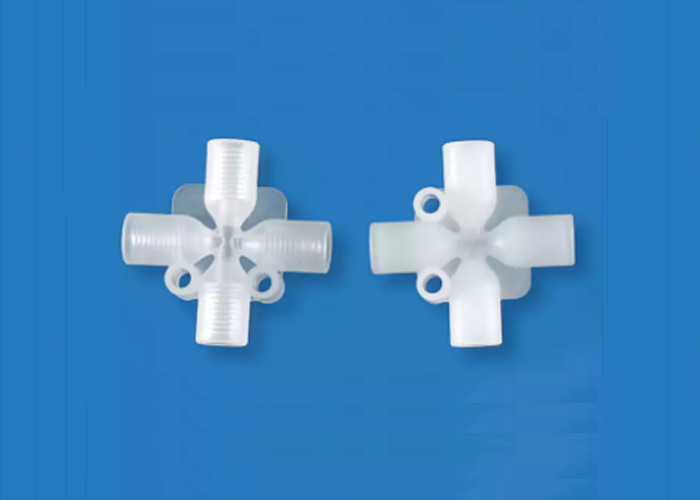

3. female cross connector = 1/4-28UNF female*4 = OD1.6/2.0/2.5/3.0/3.175/3.2mm tubing = PP or PTFE material, please choose right collocation for your application.

4. PP material is for non-corrosive and weak corrosive liquid; PTFE is for strong corrosive liquid.



Collocated Connectors

1/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter 01/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter 11/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter 2


1. Male 1/4-28UNF Nut+ferrule

2. Male 1/4-28UNF Flange connector

3. Male 1/4-28 Straight connector



1/4 - 28UNF Thread Tee Plastic Connectors Female Thread Adapter 3



Our Services:



1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
