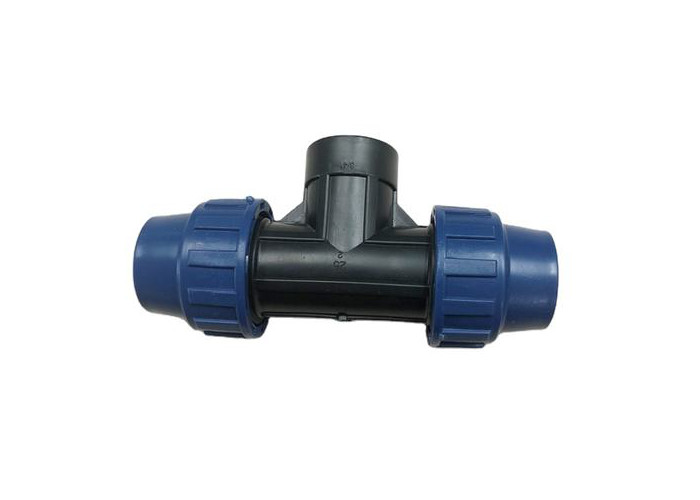

Application Water Supplying 32mm female thread tee fast joint HDPE Compression Fittings
The maximum working pressure is 16bar for diameters from 20-63mm and 10bar for diameters from 75-110mm in temperature of 20℃. The maximum working pressure is realted to the duration of pressure and temperature.
| Product Name | HDPE PIPE FITTING |
| Color | Black, blue |
| Standard | GB/T13663-2000,ISO 4427-1:2007 |
| Specification | 20-110mm |
| Pressure | 1.6MPa SDR 11 |
| Main application | Water Supplying and Draining |
A. Pe tube
B. Nut, PP material with high stability to UV rays
C. Clinching ring, POM material of high mechnical resistance of hardness
D. Blocking bush, PE material
E. O ring gasket, acrylonitile rubber
F. Body, PP-B material
