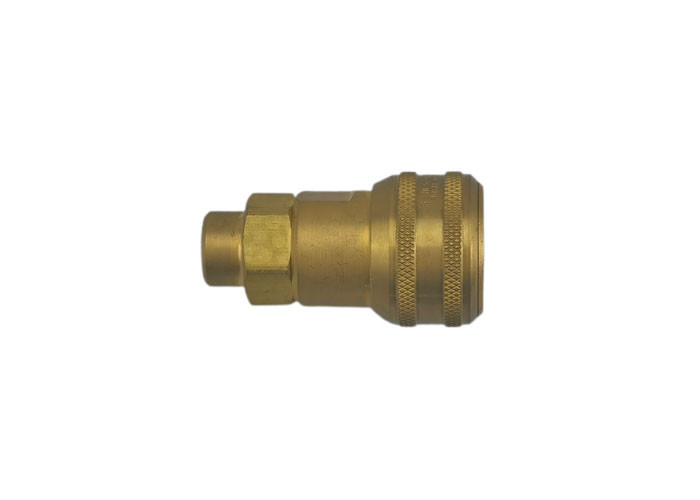

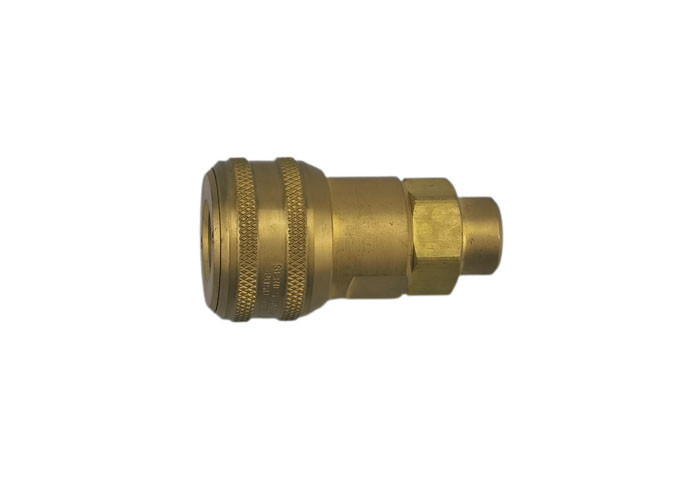

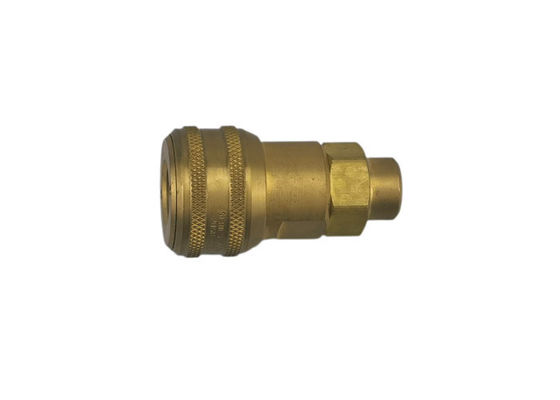

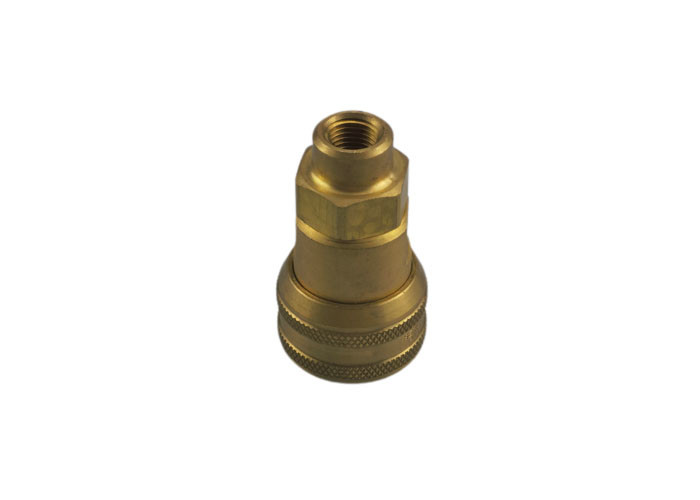

1/2'' Nominal Female End Connections compressed air quick release coupling Pneumatic Quick Coupling
CB12 Series are used compressed air, gases, and liquids.
Standard Materials
Features
| Body Size | PARTNO. | Thread | A | B | HEX |
| 1/2" | CB-S2B-12FN-B | 1/4-18 | 2.72 | 1.50 | 1.00 |
| 1/2" | CB-S3B-12FN-B | 3/8-18 | 2.79 | 1.50 | 1.00 |
| 1/2" | CB-S4B-12FN-B | 1/2-14 | 3.07 | 1.50 | 1.00 |
| 1/2" | CB-S6B-12FN-B | 3/4-14 | 3.10 | 1.50 | 1.19 |

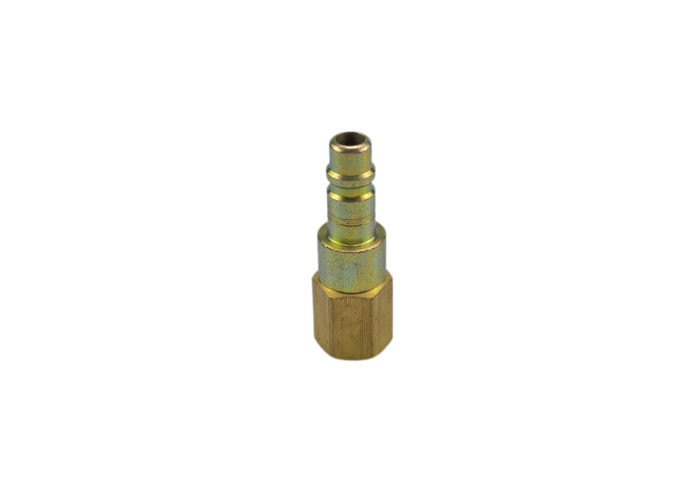

| Body Size | PARTNO. | Thread | C | D | HEX |
| 1/2" | CB-P2S-12FN-B | 1/4-18 | 1.92 | 0.79 | 0.69 |
| 1/2" | CB-P3S-12FN-B | 3/8-18 | 2.06 | 0.94 | 0.81 |
| 1/2" | CB-P4S-12FN-B | 1/2-14 | 2.34 | 1.15 | 1.00 |
| 1/2" | CB-P6S-12FN-B | 3/4-14 | 2.44 | 1.37 | 1.19 |
