250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

  • High Light

    250MPa Hydraulic Hose Couplings


    Hydraulic Hose Couplings 5.8L/Min


    TS16949 High Pressure Hose Couplings

  • Name
    High-pressure Coupling
  • Material Seal
    Nitrile (NBR)
  • Flow Capacity
    5.8 L/min
  • Working Pressure
    250 MPa
  • Temperature
    -30°C — +100°C
  • Material
    Hardened, Zinc-nickel, Zinc-iron
  • Size
    All Size
  • Standard
    SAE J20/ TS16949
  • Certification
  • Feature
    High Pressure
  • Place of Origin
  • Brand Name
  • Certification
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
  • Delivery Time
    7-20 work days
  • Payment Terms
    L/C, D/A, D/P, T/T, Western Union
  • Supply Ability
    5000~20000 pc/month

250MPa Ultra High Pressure Hydraulic Hose Couplings 5.8L/Min

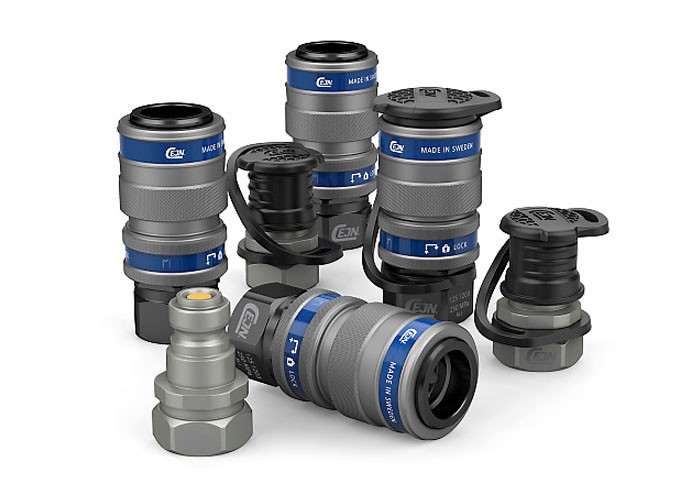

250 MPa Series 125 ultra high-pressure hydraulics hose couplings


A CEJN original that customers have relied on for over 40 years, Series 125 features extremely small outside dimensions and a patented seal design. The series is a dependable performer on bolt tensioners, bearing pullers and other applications. Non-Drip connection and disconnection are standard, as are plastic dust caps that extend the service life of the entire hydraulic system. The safety lock comes as standard and it adds an extra layer of safety by eliminating any risks of accidental disconnections. All exposed components are made of zinc-plated steel.


Nominal flow diameter 2.5 mm (0.1")
Flow capacity 5.8 l/min (1.3 GPM UK)
Max. working pressure 250 MPa
Min. burst pressure 500 MPa
Temperature range -30°C — +100°C (-22°F — +212°F)
Material coupling Hardened, zinc-nickel, zinc-iron
Material nipple Hardened, zinc-nickel
Material seal Nitrile (NBR) other sealing materials on request


Flow capacity is measured at 0.4 MPa pressure drop.


*CMS= Cejn metal seal (120° cone), T1= rubber metal seal (19 950 0061), T2= rubber metal seal (19 950 0062), T3= rubber metal seal (19 950 0064), T4= high strength rubber metal seal (19 950 0083), W= copper washer (09 950 4600).
