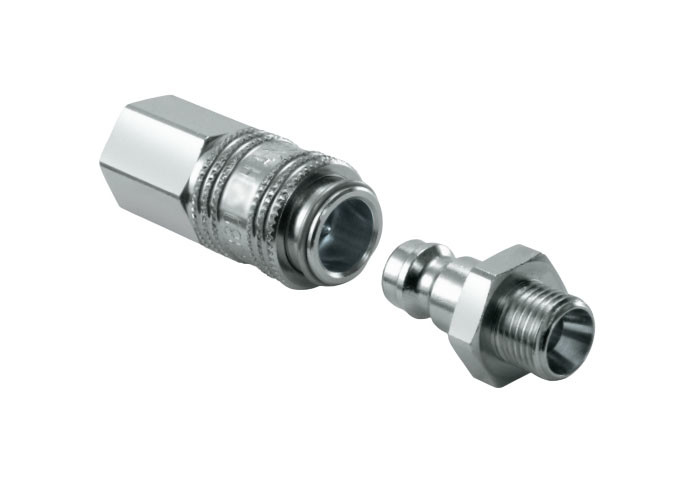

1/4'' Nominal Hose Stem End Connections Pneumatic Quick Coupling
Features
CB-S2B-12FN are used compressed air, gases, and liquids.
Standard Materials
Rated Pressure and Flow Capacity
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) |
Flow Capacity (scfm) |
Standard seal material |
| 1/4" | 2000 | 138 | 28 | NBR |
| Body Size | PARTNO. | Hose | A | B |
| 1/4" | CB-S2B-12H | 1/4’’ | 2.70 | 1.19 |
| 1/4" | CB-S3B-12H | 3/8’’ | 2.69 | 1.19 |
| 1/4" | CB-S4B-12H | 5/16’’ | 2.70 | 1.19 |

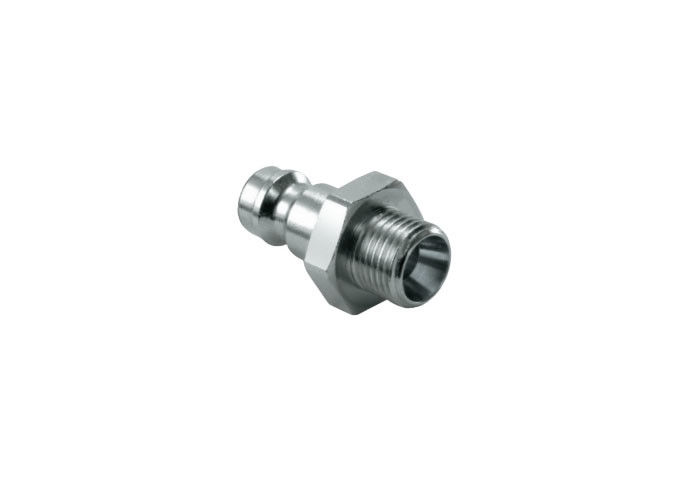

| Body Size | PARTNO. | Hose | A | B |
| 1/4" | CB-P2S-12H | 1/4’’ | 2.22 | 0.50 |
| 1/4" | CB-P3S-12H | 3/8’’ | 2.31 | 0.50 |
| 1/4" | CB-P4S-12H | 5/16’’ | 2.22 | 0.50 |
| 1/4" | CB-P3B-12H | 3/8’’ | 2.31 | 0.50 |
