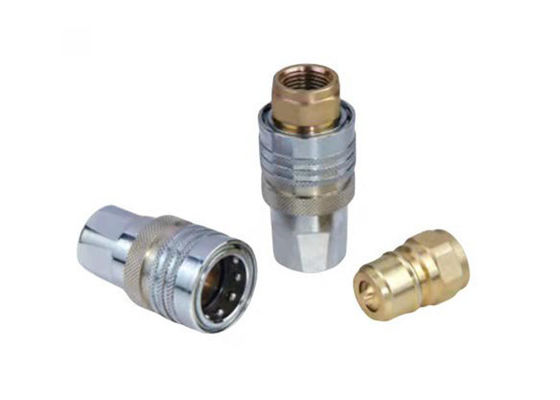

TEMA IATF16949 Steel Hydraulic Quick Coupling Straight Through Close Type

Negotiation
MOQ
Negotiation
Price
TEMA IATF16949 Steel Hydraulic Quick Coupling Straight Through Close Type
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Connection: Close Type
Application: Industry A Proven
Size: 1/4-1inch
Rated Flow: 4785GPM
Compatible With: TEMA TH5000 Series
Name: Hydraulic Coupling
Temperature: -30~120°C
Highlight:

Steel Close Type Straight Through Coupler

,

Straight Through Hydraulic Quick Coupling IATF16949

,

TEMA Hydraulic Quick Connect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-11
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Compatible with TEMA TH5000 Series close type hydraulic quick coupling



Applications: The Series brings to the industry a proven design for use on construction equipment, forestry equipment, agricultural machinery, oil tools, steel mill machinery, and other demanding hydraulic applications.



Specifications:

Body Size(in) 1/4 3/8 1/2 3/4 1
Rated Pressure(PSI) 5800 5000 4785 4785 4785
Rated Flow(GPM) 4 10 12 28 50
Temperature Range(std seals) -20℃ to +120℃
Standard seal NBR



Features:

1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Critical parts are hardened for durability.
4.Dependable ball-locking mechanism holds the mating halves together.
5.Socked and plug are precision machined from solid bar stock.
6.Compatible with TEMA TH5000 Series.



TEMA IATF16949 Steel Hydraulic Quick Coupling Straight Through Close Type 0

PARTNO. T D HEX1 HEX2 L LS LP
CB-S2S-TM G1/4 26 S18 S18 81.8 60 48.2
CB-S3S-TM G3/8 35 S24 S22 76.7 61 38
CB-S4S-TM G1/2 41 S30 S27 85.5 67.5 42.5
CB-S6S-TM G3/4 52 S38 S36 94.5 76.4 47
CB-S8S-TM G1 62 S45 S45 113.8 92.4 56.5







Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
