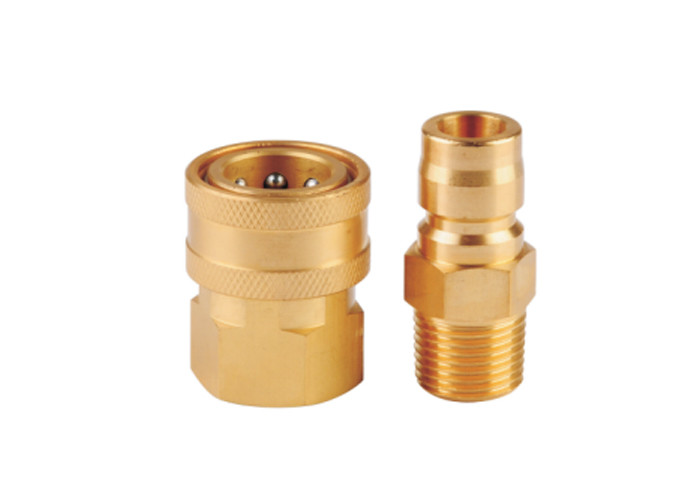

Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings

Negotiation
MOQ
Negotiation
Price
Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Brass
Connection: Male,Female,Hose
Application: Nitto TSP Series
Size: 1/8''-1''
Rated Flow: 3 To 100
Compatible With: Nitto TSP Series
Product Name: Straight-through
Temperature: -20~120°C
Highlight:

Open Type Hydraulic Quick Couplings

,

Brass Straight Through Quick Couplings

,

Non valved Straight Through Coupler
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-11
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Japanese Style Open Type Hydraulic Quick Couplings straight-through coupler



Features:

1. Non-valved couplers have minimum flow resistance for maximum cooling

2. Couplers and nipple are precision machined from solid bar stock.

3. Steel,Brass ,Stainless steel are available upon request

4. Interchange:Nitto TSP series



BODY SIZE Rated Pressure (Mpa) Rated Flow (L/min) Temperature Range(NBR)
1/8" 15 15 -20℃~+80℃
1/4" 15 25
3/8" 15 40
1/2" 15 120
3/4" 15 350
1" 15 550

Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings 0

Body Size PARTNO. Brass PARTNO. Stainless Thread A B HEX
1/8" CB-S1B-11MN CB-S1L-11MN 1/8-27 1.06 0.69 0.50
1/8" CB-S1B-11MG CB-S1L-11MG 1/8-28 1.00 0.69 0.56
1/4" CB-S2B-11MN CB-S2L-11MN 1/4-18 1.72 0.94 0.81
1/4" CB-S2B-11MG CB-S2L-11MG 1/4-19 1.56 0.94 0.81
3/8" CB-S3B-11MN CB-S3L-11MN 3/8-18 1.75 1.13 1.00
3/8" CB-S3B-11MG CB-S3L-11MG 3/8-19 1.62 1.13 1.00
1/2" CB-S4B-11MN CB-S4L-11MN 1/2-14 2.03 1.31 1.13
1/2" CB-S4B-11MG CB-S4L-11MG 1/2-14 1.80 1.31 1.13
3/4" CB-S6B-11MN CB-S6L-11MN 3/4-14 2.22 1.69 1.44
3/4" CB-S6B-11MG CB-S6L-11MG 3/4-14 2.03 1.69 1.44
1" CB-S8B-11MN CB-S8L-11MN 1-11Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings 1 2.53 2.00 1.75
1" CB-S8B-11MG CB-S8L-11MG 1-11 2.37 2.00 1.75

Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings 2

Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Thread C D HEX
1/8" CB-P1B-11MN CB-P1S-11MN CB-P1L-11MN 1/8-27 1.09 0.51 0.44
1/8" CB-P1B-11MG CB-P1S-11MG CB-P1L-11MG 1/8-28 0.89 0.65 0.56
1/4" CB-P2B-11MN CB-P2S-11MN CB-P2L-11MN 1/4-18 1.61 0.65 0.56
1/4" CB-P2B-11MG CB-P2S-11MG CB-P2L-11MG 1/4-19 1.35 0.87 0.75
3/8" CB-P3B-11MN CB-P3S-11MN CB-P3L-11MN 3/8-18 1.69 0.79 0.69
3/8" CB-P3B-11MG CB-P3S-11MG CB-P3L-11MG 3/8-19 1.69 1.01 0.88
1/2" CB-P4B-11MN CB-P4S-11MN CB-P4L-11MN 1/2-14 2.03 1.01 0.88
1/2" CB-P4B-11MG CB-P4S-11MG CB-P4L-11MG 1/2-14 1.77 1.15 1.00
3/4" CB-P6B-11MN CB-P6S-11MN CB-P6L-11MN 3/4-14 2.25 1.23 1.06
3/4" CB-P6B-11MG CB-P6S-11MG CB-P6L-11MG 3/4-14 2.00 1.44 1.25
1" CB-P8B-11MN CB-P8S-11MN CB-P8L-11MN 1-11Brass Japanese Style Straight Through Coupler Hydraulic Quick Couplings 1 2.53 1.59 1.38
1" CB-P8B-11MG CB-P8S-11MG CB-P8L-11MG 1-11 2.30 2.02 1.75



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
