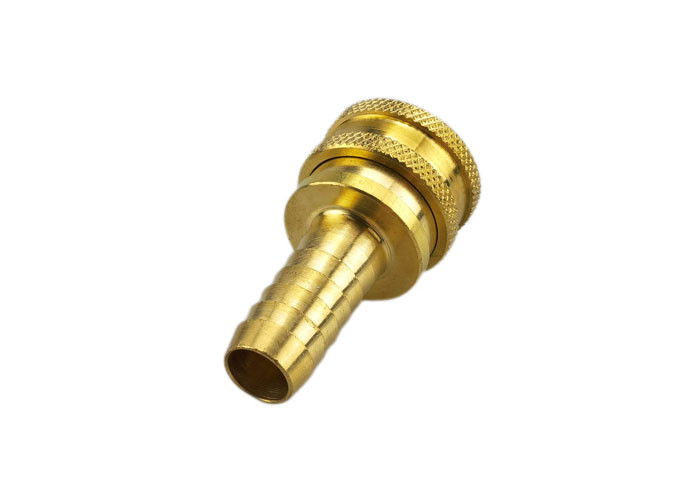

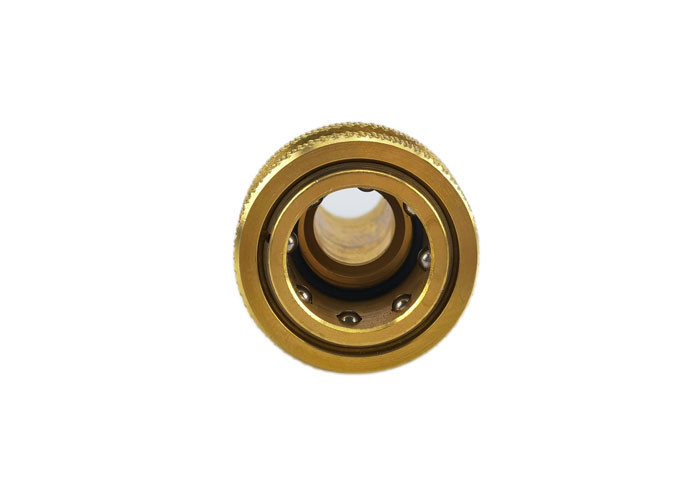

1'' Hose Stem Connections straight-through coupler
Standard Materials
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
Features
| Body Size | PARTNO. Brass | PARTNO. Stainless | Hose I.D. | A | B |
| 1/8" | CB-S1B-11H | CB-S1L-11H | 3/16’’ | 1.41 | 0.69 |
| 1/8" | CB-S1B-11H | CB-S1L-11H | 1/4’’ | 1.41 | 0.69 |
| 1/4" | CB-S2B-11H | CB-S2L-11H | 1/4’’ | 2.10 | 0.94 |
| 3/8" | CB-S3B-11H | CB-S3L-11H | 3/8’’ | 2.09 | 1.13 |
| 1/2" | CB-S4B-11H | CB-S4L-11H | 1/2’’ | 2.19 | 1.31 |
| 3/4" | CB-S6B-11H | CB-S6L-11H | 3/4’’ | 3.19 | 1.69 |
| 1" | CB-S8B-11H | CB-S8L-11H | 1’’ | 3.32 | 2.00 |
| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Hose I.D. | A | B |
| 1/8" | CB-P1B-11H | CB-P1S-11H | CB-P1L-11H | 3/16’’ | 1.28 | 0.44 |
| 1/8" | CB-P1B-11H | CB-P1S-11H | CB-P1L-11H | 1/4’’ | 1.28 | 0.44 |
| 1/4" | CB-P2B-11H | CB-P2S-11H | CB-P2L-11H | 1/4’’ | 1.93 | 0.56 |
| 3/8" | CB-P3B-11H | CB-P3S-11H | CB-P3L-11H | 3/8’’ | 2.09 | 0.69 |
| 1/2" | CB-P4B-11H | CB-P4S-11H | CB-P4L-11H | 1/2’’ | 2.17 | 0.88 |
| 3/4" | CB-P6B-11H | CB-P6S-11H | CB-P6L-11H | 3/4’’ | 3.17 | 1.19 |
| 1" | CB-P8B-11H | CB-P8S-11H | CB-P8L-11H | 1’’ | 3.28 | 1.50 |
