Hose Stem Connections straight-through coupler
Phidix Motion Controls (PMC) started the business in 2004, originally as an international trading company-Shanghai Phidix Trading Co., Ltd (Headquarter of PMC), and became the only authorized Cable Assembler in China by the American based company Cablecraft Motion Controls (CMC) in 2011. CMC was originally a subsidiary of Tuthill Group (more than 100 years history), headquartered in New Haven Indiana US and became independent in 2011. CMC can offer diverse high-end drive control products and engineering solutions.
Standard Materials
Features
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.

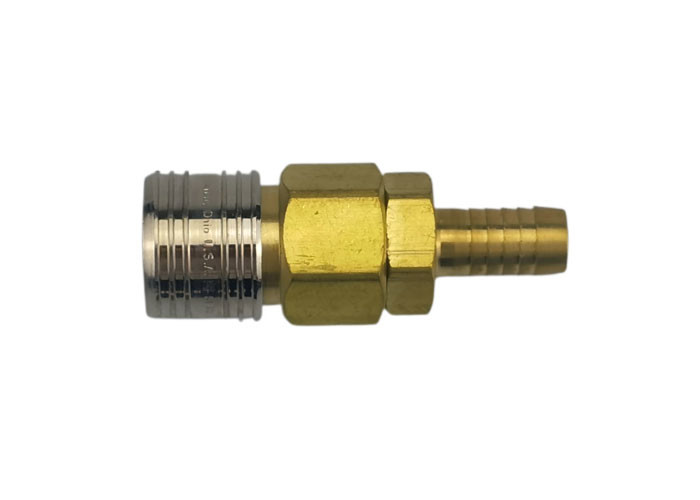

| Body Size | PARTNO. Brass | PARTNO. Stainless | Hose I.D. | A | B |
| 1/8" | CB-S1B-11H | CB-S1L-11H | 3/16’’ | 1.41 | 0.69 |
| 1/8" | CB-S1B-11H | CB-S1L-11H | 1/4’’ | 1.41 | 0.69 |
| 1/4" | CB-S2B-11H | CB-S2L-11H | 1/4’’ | 2.10 | 0.94 |
| 3/8" | CB-S3B-11H | CB-S3L-11H | 3/8’’ | 2.09 | 1.13 |
| 1/2" | CB-S4B-11H | CB-S4L-11H | 1/2’’ | 2.19 | 1.31 |
| 3/4" | CB-S6B-11H | CB-S6L-11H | 3/4’’ | 3.19 | 1.69 |
| 1" | CB-S8B-11H | CB-S8L-11H | 1’’ | 3.32 | 2.00 |

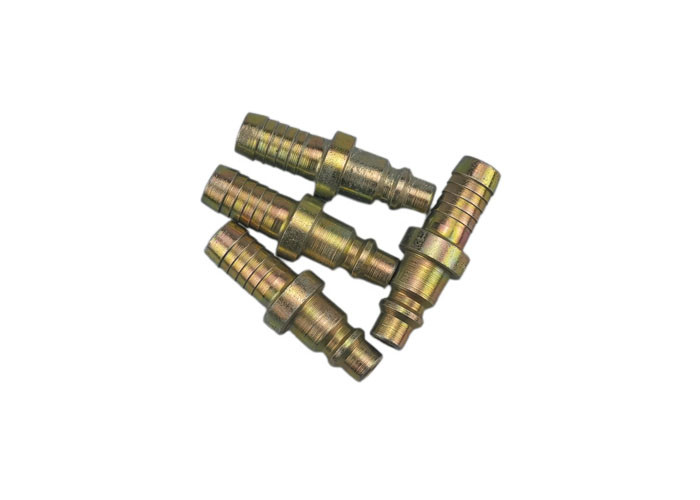

| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Hose I.D. | A | B |
| 1/8" | CB-P1B-11H | CB-P1S-11H | CB-P1L-11H | 3/16’’ | 1.28 | 0.44 |
| 1/8" | CB-P1B-11H | CB-P1S-11H | CB-P1L-11H | 1/4’’ | 1.28 | 0.44 |
| 1/4" | CB-P2B-11H | CB-P2S-11H | CB-P2L-11H | 1/4’’ | 1.93 | 0.56 |
| 3/8" | CB-P3B-11H | CB-P3S-11H | CB-P3L-11H | 3/8’’ | 2.09 | 0.69 |
| 1/2" | CB-P4B-11H | CB-P4S-11H | CB-P4L-11H | 1/2’’ | 2.17 | 0.88 |
| 3/4" | CB-P6B-11H | CB-P6S-11H | CB-P6L-11H | 3/4’’ | 3.17 | 1.19 |
| 1" | CB-P8B-11H | CB-P8S-11H | CB-P8L-11H | 1’’ | 3.28 | 1.50 |
