Home /Products/Quick Connect Products/Hose Stem Connections 0.25'' Straight Through Coupler

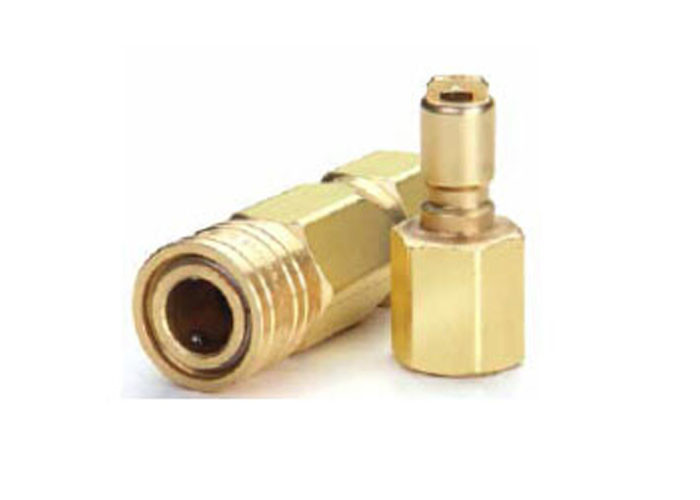

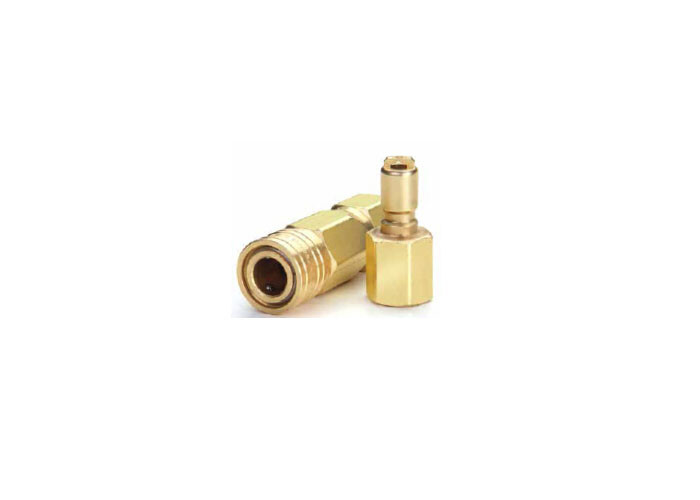

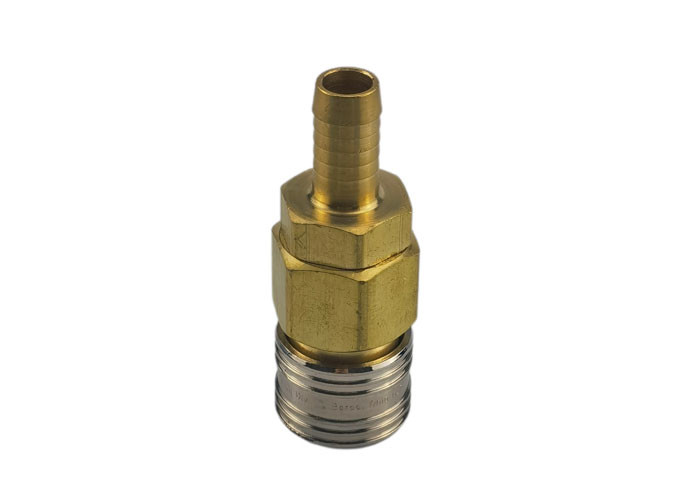

Hose Stem Connections 0.25'' Straight Through Coupler

Negotiation
MOQ
Negotiation
Price
Hose Stem Connections 0.25'' Straight Through Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Compatible With: PARKER ST Series, HANSEN ST Series, FOSTER FST Series
Connection: Hose
Size: 1/8''-1''
Material: Stainless
Product Name: Hose Coupler
Temperature: -20~120°C
Type: Fittings
Rated Flow: 45L/min
Highlight:

0.25'' Straight Through Coupler

,

EPDM Straight Through Coupler

,

NBR brass quick disconnect fittings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-11
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

1/4'' Hose Stem Connections straight-through coupler



As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.



Standard Materials

  • Brass, zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual operation
  3. Smooth bore permits free flow of liquid or gas
  4. Male and female NPTF, BSPP and hose stem connections
  5. Compatible with PARKER ST Series, HANSEN ST Series, FOSTER FST Series.
BODY SIZE Rated Pressure (PSI) Rated Pressure (BAR) Standard seal material
1/8" 2800 193 NBR
1/4" 5200 359
3/8" 2800 193
1/2" 2200 152
3/4" 1700 117
1" 1300 90





CB-11 Series straight-through couplings are non-valced couplings for applications where maximum flow is required. Their smooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.

Hose Stem Connections 0.25'' Straight Through Coupler 0

Body Size PARTNO. Brass PARTNO. Stainless Hose I.D. A B
1/8" CB-S1B-11H CB-S1L-11H 3/16’’ 1.41 0.69
1/8" CB-S1B-11H CB-S1L-11H 1/4’’ 1.41 0.69
1/4" CB-S2B-11H CB-S2L-11H 1/4’’ 2.10 0.94
3/8" CB-S3B-11H CB-S3L-11H 3/8’’ 2.09 1.13
1/2" CB-S4B-11H CB-S4L-11H 1/2’’ 2.19 1.31
3/4" CB-S6B-11H CB-S6L-11H 3/4’’ 3.19 1.69
1" CB-S8B-11H CB-S8L-11H 1’’ 3.32 2.00

Hose Stem Connections 0.25'' Straight Through Coupler 1



Body Size PARTNO. Brass PARTNO. Steel PARTNO. Stainless Hose I.D. A B
1/8" CB-P1B-11H CB-P1S-11H CB-P1L-11H 3/16’’ 1.28 0.44
1/8" CB-P1B-11H CB-P1S-11H CB-P1L-11H 1/4’’ 1.28 0.44
1/4" CB-P2B-11H CB-P2S-11H CB-P2L-11H 1/4’’ 1.93 0.56
3/8" CB-P3B-11H CB-P3S-11H CB-P3L-11H 3/8’’ 2.09 0.69
1/2" CB-P4B-11H CB-P4S-11H CB-P4L-11H 1/2’’ 2.17 0.88
3/4" CB-P6B-11H CB-P6S-11H CB-P6L-11H 3/4’’ 3.17 1.19
1" CB-P8B-11H CB-P8S-11H CB-P8L-11H 1’’ 3.28 1.50



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
