Non-Valved Series maximum flow straight-through couplings
Our Services:
| 1. Customized design, OEM is available. |
| 2. In-time & professional after sales service. |
| 3. Low MOQ, standard package, fast delivery. |
| 4. Special discount and protection are provided to our distributors. |
| 5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature. |

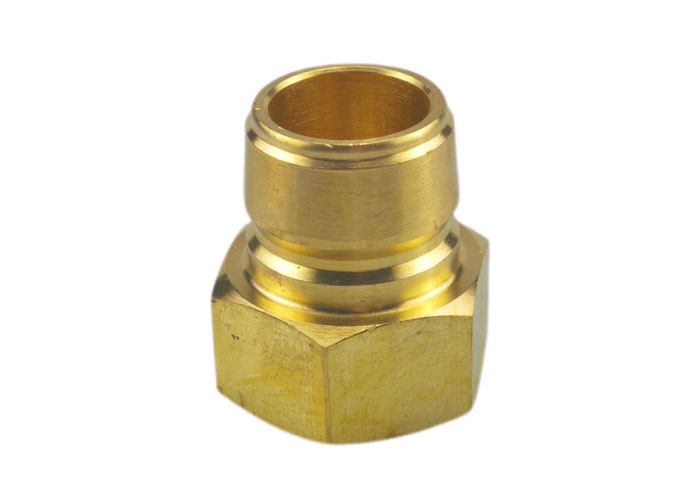

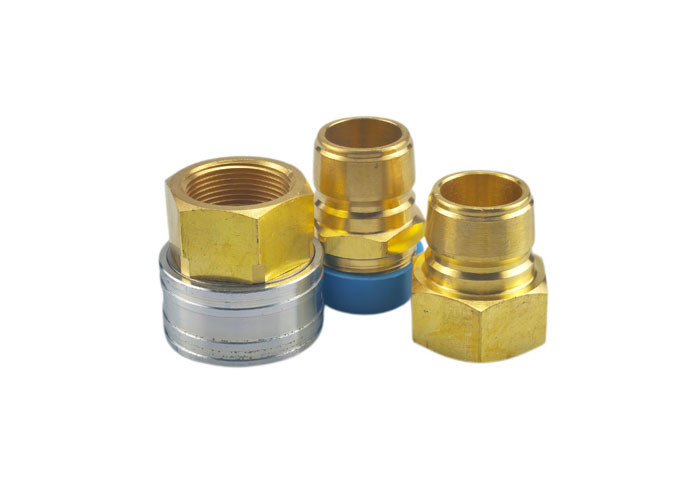

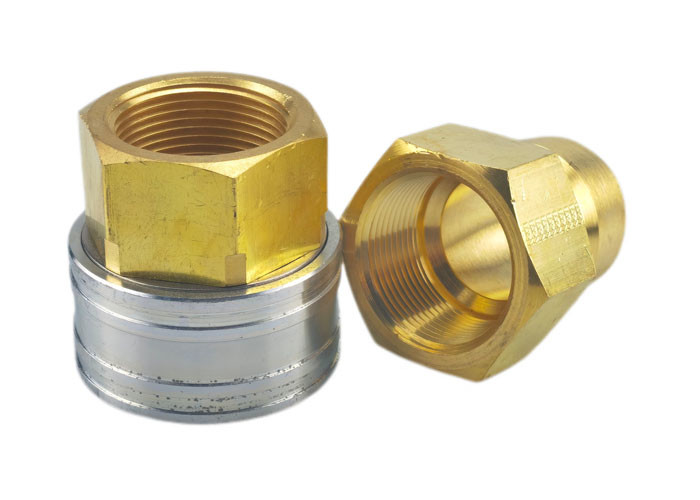

CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 1".
Standard Materials
Features
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
| Body Size | PARTNO. Brass | PARTNO. Stainless | Thread | A | B | HEX |
| 1/8" | CB-S1B-11FN | CB-S1L-11FN | 1/8-27 | 1.06 | 0.69 | 0.50 |
| 1/8" | CB-S1B-11FG | CB-S1L-11FG | 1/8-28 | 1.03 | 0.69 | 0.56 |
| 1/4" | CB-S2B-11FN | CB-S2L-11FN | 1/4-18 | 1.50 | 0.94 | 0.81 |
| 1/4" | CB-S2B-11FG | CB-S2L-11FG | 1/4-19 | 1.50 | 0.94 | 0.81 |
| 3/8" | CB-S3B-11FN | CB-S3L-11FN | 3/8-18 | 1.59 | 1.13 | 1.00 |
| 3/8" | CB-S3B-11FG | CB-S3L-11FG | 3/8-19 | 1.59 | 1.13 | 1.00 |
| 1/2" | CB-S4B-11FN | CB-S4L-11FN | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 1/2" | CB-S4B-11FG | CB-S4L-11FG | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 3/4" | CB-S6B-11FN | CB-S6L-11FN | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 3/4" | CB-S6B-11FG | CB-S6L-11FG | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 1" | CB-S8B-11FN | CB-S8L-11FN | 1-11 | 2.31 | 2.00 | 1.75 |
| 1" | CB-S8B-11FG | CB-S8L-11FG | 1-11 | 2.33 | 2.00 | 1.75 |
| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Thread | C | D | HEX |
| 1/8" | CB-P1B-11FN | CB-P1S-11FN | CB-P1L-11FN | 1/8-27 | 1.00 | 0.58 | 0.50 |
| 1/8" | CB-P1B-11FG | CB-P1S-11FG | CB-P1L-11FG | 1/8-28 | 0.97 | 0.65 | 0.56 |
| 1/4" | CB-P2B-11FN | CB-P2S-11FN | CB-P2L-11FN | 1/4-18 | 1.50 | 0.79 | 0.69 |
| 1/4" | CB-P2B-11FG | CB-P2S-11FG | CB-P2L-11FG | 1/4-19 | 1.45 | 0.87 | 0.75 |
| 3/8" | CB-P3B-11FN | CB-P3S-11FN | CB-P3L-11FN | 3/8-18 | 1.63 | 0.94 | 0.81 |
| 3/8" | CB-P3B-11FG | CB-P3S-11FG | CB-P3L-11FG | 3/8-19 | 1.63 | 1.01 | 0.88 |
| 1/2" | CB-P4B-11FN | CB-P4S-11FN | CB-P4L-11FN | 1/2-14 | 1.94 | 1.15 | 1.00 |
| 1/2" | CB-P4B-11FG | CB-P4S-11FG | CB-P4L-11FG | 1/2-14 | 1.92 | 1.23 | 1.06 |
| 3/4" | CB-P6B-11FN | CB-P6S-11FN | CB-P6L-11FN | 3/4-14 | 2.06 | 1.37 | 1.19 |
| 3/4" | CB-P6B-11FG | CB-P6S-11FG | CB-P6L-11FG | 3/4-14 | 2.01 | 1.52 | 1.31 |
| 1" | CB-P8B-11FN | CB-P8S-11FN | CB-P8L-11FN | 1-11 | 2.21 | 1.80 | 1.56 |
| 1" | CB-P8B-11FG | CB-P8S-11FG | CB-P8L-11FG | 1-11 | 2.23 | 1.80 | 1.56 |
