1-1/2'' CB-11 Series Non-Valved Series maximum flow straight-through couplings
Features
Standard Materials

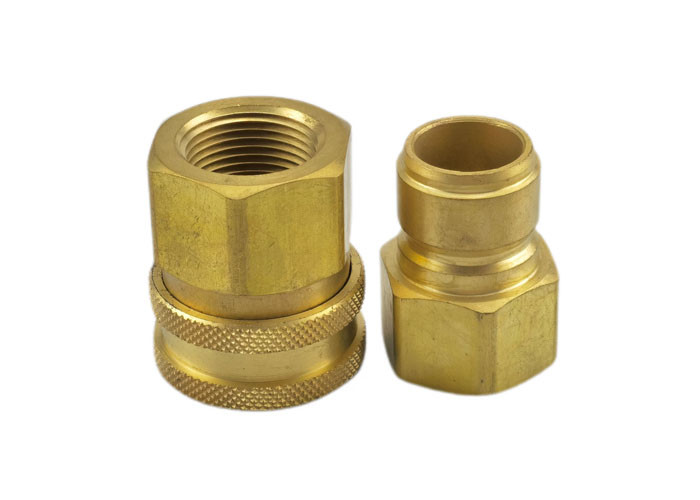

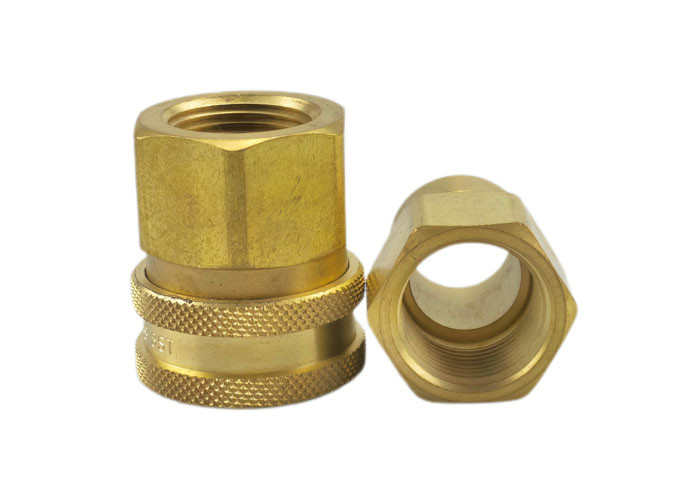

CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed. They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. Body sizes range from 1/8" to 1".
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
| Body Size | PARTNO. Brass | PARTNO. Stainless | Thread | A | B | HEX |
| 1/8" | CB-S1B-11FN | CB-S1L-11FN | 1/8-27 | 1.06 | 0.69 | 0.50 |
| 1/8" | CB-S1B-11FG | CB-S1L-11FG | 1/8-28 | 1.03 | 0.69 | 0.56 |
| 1/4" | CB-S2B-11FN | CB-S2L-11FN | 1/4-18 | 1.50 | 0.94 | 0.81 |
| 1/4" | CB-S2B-11FG | CB-S2L-11FG | 1/4-19 | 1.50 | 0.94 | 0.81 |
| 3/8" | CB-S3B-11FN | CB-S3L-11FN | 3/8-18 | 1.59 | 1.13 | 1.00 |
| 3/8" | CB-S3B-11FG | CB-S3L-11FG | 3/8-19 | 1.59 | 1.13 | 1.00 |
| 1/2" | CB-S4B-11FN | CB-S4L-11FN | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 1/2" | CB-S4B-11FG | CB-S4L-11FG | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 3/4" | CB-S6B-11FN | CB-S6L-11FN | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 3/4" | CB-S6B-11FG | CB-S6L-11FG | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 1" | CB-S8B-11FN | CB-S8L-11FN | 1-11 |
2.31 | 2.00 | 1.75 |
| 1" | CB-S8B-11FG | CB-S8L-11FG | 1-11 | 2.33 | 2.00 | 1.75 |
| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Thread | C | D | HEX |
| 1/8" | CB-P1B-11FN | CB-P1S-11FN | CB-P1L-11FN | 1/8-27 | 1.00 | 0.58 | 0.50 |
| 1/8" | CB-P1B-11FG | CB-P1S-11FG | CB-P1L-11FG | 1/8-28 | 0.97 | 0.65 | 0.56 |
| 1/4" | CB-P2B-11FN | CB-P2S-11FN | CB-P2L-11FN | 1/4-18 | 1.50 | 0.79 | 0.69 |
| 1/4" | CB-P2B-11FG | CB-P2S-11FG | CB-P2L-11FG | 1/4-19 | 1.45 | 0.87 | 0.75 |
| 3/8" | CB-P3B-11FN | CB-P3S-11FN | CB-P3L-11FN | 3/8-18 | 1.63 | 0.94 | 0.81 |
| 3/8" | CB-P3B-11FG | CB-P3S-11FG | CB-P3L-11FG | 3/8-19 | 1.63 | 1.01 | 0.88 |
| 1/2" | CB-P4B-11FN | CB-P4S-11FN | CB-P4L-11FN | 1/2-14 | 1.94 | 1.15 | 1.00 |
| 1/2" | CB-P4B-11FG | CB-P4S-11FG | CB-P4L-11FG | 1/2-14 | 1.92 | 1.23 | 1.06 |
| 3/4" | CB-P6B-11FN | CB-P6S-11FN | CB-P6L-11FN | 3/4-14 | 2.06 | 1.37 | 1.19 |
| 3/4" | CB-P6B-11FG | CB-P6S-11FG | CB-P6L-11FG | 3/4-14 | 2.01 | 1.52 | 1.31 |
| 1" | CB-P8B-11FN | CB-P8S-11FN | CB-P8L-11FN | 1-11 |
2.21 | 1.80 | 1.56 |
| 1" | CB-P8B-11FG | CB-P8S-11FG | CB-P8L-11FG | 1-11 | 2.23 | 1.80 | 1.56 |
