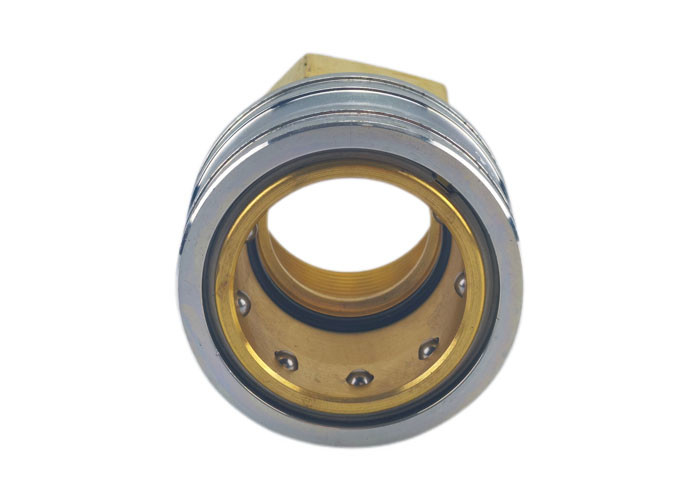

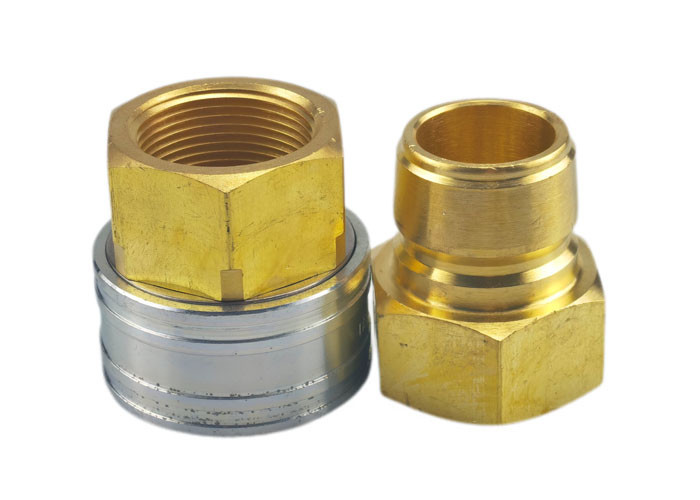

1-1/4'' CB-11 Series Non-Valved Series maximum flow straight-through couplings
Body sizes range from 1/8" to 1". They are well suited for use on pressure wash, steam cleaning and carpet cleaning equipment, and many fluid transfer systems. CB-11 Series straight-through couplings are designed for use where minimum pressure drop is required and valving is not needed.
Standard Materials
Features
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/8" | 2800 | 193 | NBR |
| 1/4" | 5200 | 359 | |
| 3/8" | 2800 | 193 | |
| 1/2" | 2200 | 152 | |
| 3/4" | 1700 | 117 | |
| 1" | 1300 | 90 |
| Body Size | PARTNO. Brass | PARTNO. Stainless | Thread | A | B | HEX |
| 1/8" | CB-S1B-11FN | CB-S1L-11FN | 1/8-27 | 1.06 | 0.69 | 0.50 |
| 1/8" | CB-S1B-11FG | CB-S1L-11FG | 1/8-28 | 1.03 | 0.69 | 0.56 |
| 1/4" | CB-S2B-11FN | CB-S2L-11FN | 1/4-18 | 1.50 | 0.94 | 0.81 |
| 1/4" | CB-S2B-11FG | CB-S2L-11FG | 1/4-19 | 1.50 | 0.94 | 0.81 |
| 3/8" | CB-S3B-11FN | CB-S3L-11FN | 3/8-18 | 1.59 | 1.13 | 1.00 |
| 3/8" | CB-S3B-11FG | CB-S3L-11FG | 3/8-19 | 1.59 | 1.13 | 1.00 |
| 1/2" | CB-S4B-11FN | CB-S4L-11FN | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 1/2" | CB-S4B-11FG | CB-S4L-11FG | 1/2-14 | 1.91 | 1.31 | 1.13 |
| 3/4" | CB-S6B-11FN | CB-S6L-11FN | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 3/4" | CB-S6B-11FG | CB-S6L-11FG | 3/4-14 | 2.06 | 1.69 | 1.44 |
| 1" | CB-S8B-11FN | CB-S8L-11FN | 1-11 | 2.31 | 2.00 | 1.75 |
| 1" | CB-S8B-11FG | CB-S8L-11FG | 1-11 | 2.33 | 2.00 | 1.75 |
| Body Size | PARTNO. Brass | PARTNO. Steel | PARTNO. Stainless | Thread | C | D | HEX |
| 1/8" | CB-P1B-11FN | CB-P1S-11FN | CB-P1L-11FN | 1/8-27 | 1.00 | 0.58 | 0.50 |
| 1/8" | CB-P1B-11FG | CB-P1S-11FG | CB-P1L-11FG | 1/8-28 | 0.97 | 0.65 | 0.56 |
| 1/4" | CB-P2B-11FN | CB-P2S-11FN | CB-P2L-11FN | 1/4-18 | 1.50 | 0.79 | 0.69 |
| 1/4" | CB-P2B-11FG | CB-P2S-11FG | CB-P2L-11FG | 1/4-19 | 1.45 | 0.87 | 0.75 |
| 3/8" | CB-P3B-11FN | CB-P3S-11FN | CB-P3L-11FN | 3/8-18 | 1.63 | 0.94 | 0.81 |
| 3/8" | CB-P3B-11FG | CB-P3S-11FG | CB-P3L-11FG | 3/8-19 | 1.63 | 1.01 | 0.88 |
| 1/2" | CB-P4B-11FN | CB-P4S-11FN | CB-P4L-11FN | 1/2-14 | 1.94 | 1.15 | 1.00 |
| 1/2" | CB-P4B-11FG | CB-P4S-11FG | CB-P4L-11FG | 1/2-14 | 1.92 | 1.23 | 1.06 |
| 3/4" | CB-P6B-11FN | CB-P6S-11FN | CB-P6L-11FN | 3/4-14 | 2.06 | 1.37 | 1.19 |
| 3/4" | CB-P6B-11FG | CB-P6S-11FG | CB-P6L-11FG | 3/4-14 | 2.01 | 1.52 | 1.31 |
| 1" | CB-P8B-11FN | CB-P8S-11FN | CB-P8L-11FN | 1-11 | 2.21 | 1.80 | 1.56 |
| 1" | CB-P8B-11FG | CB-P8S-11FG | CB-P8L-11FG | 1-11 | 2.23 | 1.80 | 1.56 |
