Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings

Negotiation
MOQ
Negotiation
Price
Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: IATF16949
Material: Brass
Usage: For Hot Oil
Type: Fittings
Shape: In-line
Technics: Machining
Connection: Male,Female
Product Name: Straight Through Coupler
Highlight:

IATF 16949 Hydraulic Quick Disconnect Couplings

,

0.25'' Hydraulic Quick Disconnect Couplings

,

0.5'' hydraulic quick connects
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-11
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

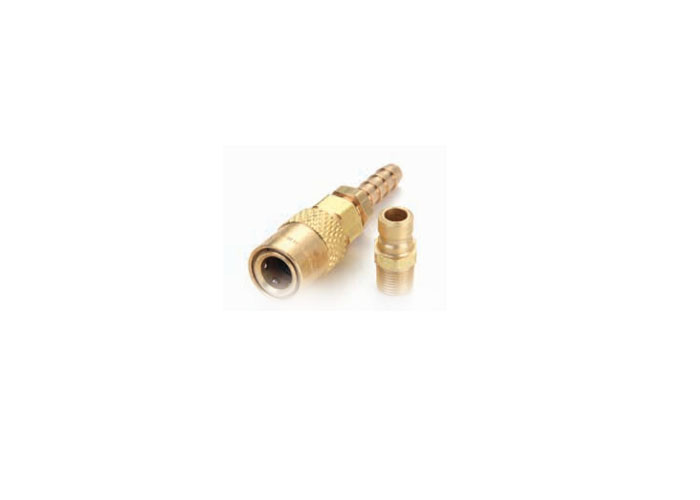

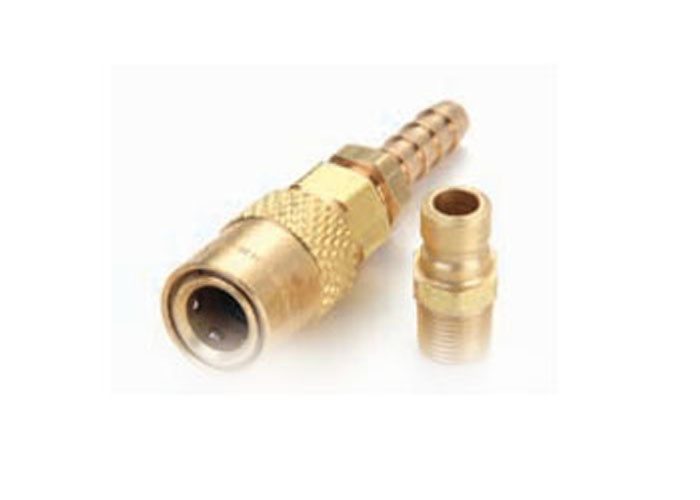

Valved sockets for automatic shut off when line is disconnected Brass Straight Through Coupler



CB-11-B Series couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".

couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected.



Features

  1. Valved sockets for automatic shut off when line is disconnected
  2. Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
  3. Compatible with Flo-Temp Series.

Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings 0

Body Size PARTNO. Thread A B Hex
1/4" CB-S2B-11FN-C 1/8-27 1.68 0.67 0.56
3/8" CB-S3B-11FN-C 1/4-18 2.18 0.89 0.75
1/2" CB-S4B-11FN-C 1/2-14 2.00 1.17 1.13





Hot Oil IATF 16949 Hydraulic Quick Disconnect Couplings 1



Body Size PARTNO. Thread D E Hex
1/4" CB-P2B-11FN-C 1/8-27 1.00 0.58 0.50
3/8" CB-P3B-11FN-C 1/4-18 1.38 0.72 0.63
1/2" CB-P4B-11FN-C 1/2-14 1.72 1.08 0.94




Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
