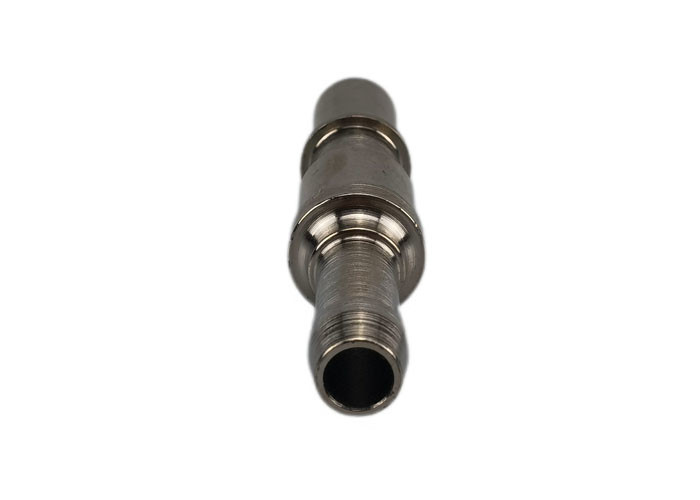

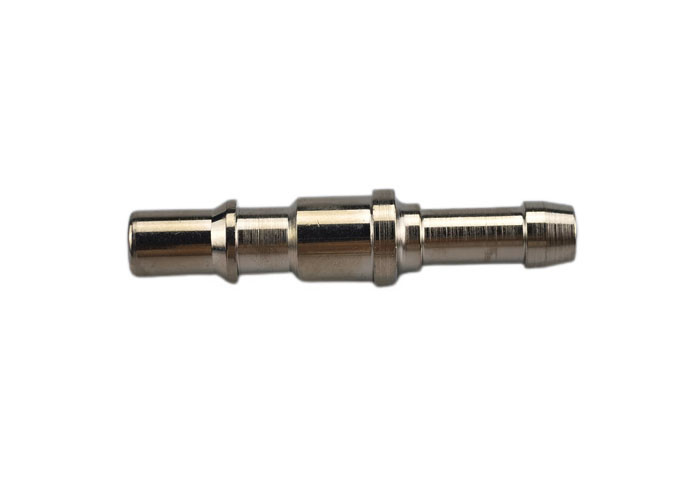

200psi Water Glycol Brass Straight Through Coupler

Negotiation
MOQ
Negotiation
Price
200psi Water Glycol Brass Straight Through Coupler
Features Gallery Product Description Request A Quote
Features
Specifications
Standard: IATF16949
Material: Brass
Usage: For Hot Water
Pressure: 200psi
Type: Fittings
Color: Yellow
Connection: Hose
Temperature: -20~100°C
Highlight:

200psi Straight Through Coupler

,

0.5'' Straight Through Coupler

,

IATF1 6949 hydraulic quick connect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-11
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Used with water-glycol, hot water and hot oil straight-through non-valved for maximum flow Brass couplings



Features

  1. Non-valved straight-through models for maximum flow
  2. Valved sockets for automatic shut off when line is disconnected
  3. Sockets with straight, 90° and 45° hose stems and without hose stem
  4. Brass plugs with male pipe thread for recessed mounting to avoid damage to plugs when molds are being changed or stored
  5. Compatible with Flo-Temp Series.



CB-11-B Series couplings provide the flow needed to cool or heat injection molds and die casting dies. Sockets are available non-valved for maximum flow, and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil. Body sizes are 1/4", 3/8" and 1/2".



200psi Water Glycol Brass Straight Through Coupler 0

Body Size PARTNO. Hose A B C
1/4" CB-S2B-11H-C 1/4" 1.20 0.67 2.25
3/8" CB-S3B-11H-C 3/8" 1.60 0.91 2.68
1/2" CB-S4B-11H-C 1/2" 2.25 1.18 3.42

200psi Water Glycol Brass Straight Through Coupler 1

Body Size PARTNO. Thread D E Hex
1/4" CB-P2B-11MN-C 1/8-27 0.94 0.49 0.44
3/8" CB-P3B-11MN-C 1/4-18 1.40 0.63 0.56
1/2" CB-P4B-11MN-C 1/2-14 1.75 0.98 0.88




Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
