Name: Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa
Brand: Phidix Motion Controls (Shanghai) Co., Ltd.
SKU: CB-9
Price: 500.00 USD
Availability: InStock

Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa

Negotiation

MOQ

Negotiation

Price

Features Gallery Product Description Request A Quote

Features

Specifications

Material: Stainless Steel,304

Technics: CNC Machining

Type: Botton

Product Name: Coupling

Thread: BSPP

Size: G1/4

Working Pressure: 6Mpa

Temperature: -20℃ ~ +120℃

Highlight:

Ss304 Press Button Hydraulic Quick Coupling

6Mpa High Pressure Quick Release Coupling

Semi Automatic Iso Hydraulic Couplers

Basic Infomation

Place of Origin: Shanghai, China

Brand Name: carterberg

Certification: IATF16949

Model Number: CB-9

Payment & Shipping Terms

Packaging Details: carton

Delivery Time: 7-20 work days

Payment Terms: L/C, D/A, D/P, T/T, Western Union

Supply Ability: 5000~20000 pc/month

Gallery

Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa

Product Description

304 Stainless Steel press botton semiau tomatic type hydraulic quick coupling

The press botton semiau tomatic type quick coupling(stainless steel)
→ Features: Single handed operation press botton type.
→ Advantages: Single handed insert directly into coupling. Press button to disconnect, it suitable used in restricted space.
→ Application: Oil, Chemical line.
→ Working pressure:6Mpa.
→ Working temperature: -20℃ to +120℃

Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa 0

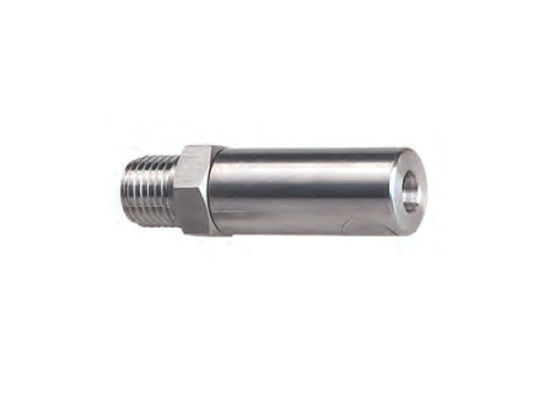

PARTNO.	LS	￠D	HEX1	A	T	d
CB-AN-02SF	53.5	16.6	17	11.5	G1/4	￠3

Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa 1

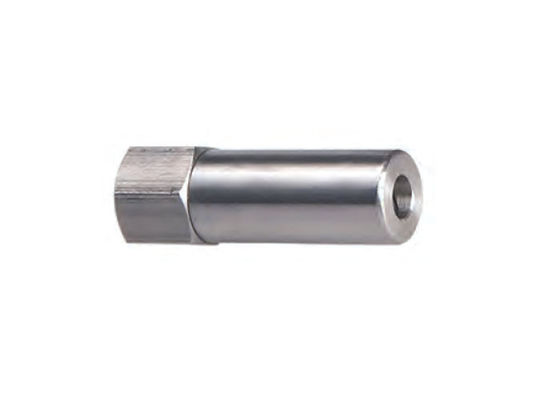

PARTNO.	LS	￠D	HEX1	A	T	d
CB-AN-02SM	58.3	16.6	17	12.5	M14*1.5	￠3

Semi Automatic Type Hydraulic Quick Coupling 304 Stainless Steel Press Button 6Mpa 2

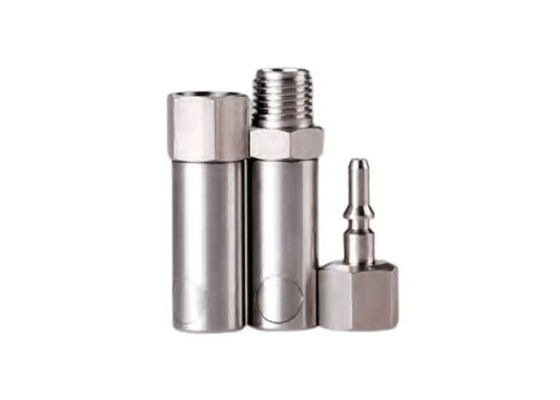

PARTNO.	LP	C	HEX2	A	T	d
CB-AN-02PF	38	23.2	17	11.5	G1/4	￠2.5

Our Services:

1. Customized design, OEM is available.

2. In-time & professional after sales service.

3. Low MOQ, standard package, fast delivery.

4. Special discount and protection are provided to our distributors.

5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
