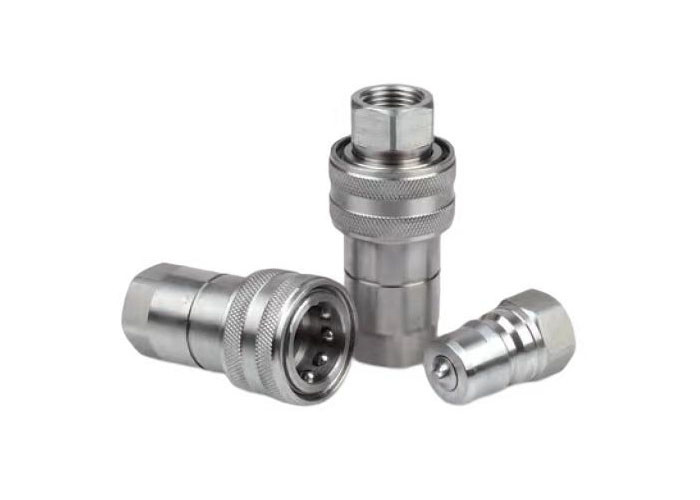

316 Stainless Steel Used in oil tools Stainless Steel Hydraulic Quick Couplings
Applications: They are used in construction equipment, hydraulic applications. These Double Shut-Off couplings can be found anywhere that fluid transfer lines need to be connected and disconnected for operation or maintenance of equipment, and a loss of fluid is undesirable. They are used in construction quipment, Forestry equipment, agricultural machinery, oil tools, Oil equipment, steel mill machinery, and other demanding hydraulic applications
Specifications:
| BODY SIZE | Rated Pressure (PSI) | Rated Flow (GPM) | Temperature range(std seals) | Standard seal material |
| 1/8" | 3500 | 1 | -20℃~+180℃ | VITON |
| 1/4" | 3500 | 3 | ||
| 3/8" | 3000 | 6 | ||
| 1/2" | 3000 | 12 | ||
| 3/4" | 3000 | 28 | ||
| 1" | 2000 | 50 |
Feature:
1.Poppet valves available to prevent uncoupled leakage.
2.Poppet valves open automatically when coupled, within rated working pressure, to keep the flow expeditely.
3.Dependable ball-locking mechanism holds the mating halves together.
4.Socket and plug are precision machined from solid bar stock.
5.The series conforms to the standard of ISO 7241-B.
6.Compatible with PARKER 60 Series, FASTER HNV Series, AEROQUIP FD45 Series and HANSEN HK Series
| Body Size | PARTNO. | LS | Φ D | HEX1 | A | T |
| 1/8" | CB-S1M-1F | 50 | 24 | 17 | 10 | G1/8 NPT1/8 |
| 1/4" | CB-S2M-1F | 58 | 28.5 | 19 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-S3M-1F | 65 | 35 | 24 | 13 | G3/8 NPT3/8 |
| 1/2" | CB-S4M-1F | 73.4 | 42 | 30 | 17 | G1/2 NPT1/2 |
| 3/4" | CB-S6M-1F | 92 | 54 | 36 | 22 | G3/4 NPT3/4 |
| 1" | CB-S8M-1F | 103 | 65 | 41 | 23 | G1 NPT1 |
| Body Size | PARTNO. | LP | d | C | HEX2 | A | T |
| 1/8" | CB-P2M-1F | 31 | 10.8 | 19 | 14 | 10 | G1/8 NPT1/8 |
| 1/4" | CB-P2M-1F | 36 | 14.2 | 22.8 | 19 | 13 | G1/4 NPT1/4 |
| 3/8" | CB-P3M-1F | 40 | 19 | 25 | 24 | 13 | G3/8 NPT3/8 |
| 1/2" | CB-P4M-1F | 45.5 | 23.5 | 28 | 27 | 17 | G1/2 NPT1/2 |
| 3/4" | CB-P6M-1F | 56 | 31.5 | 36 | 36 | 22 | G3/4 NPT3/4 |
| 1" | CB-P8M-1F | 63 | 37.8 | 35.5 | 45 | 23 | G1 NPT1 |
