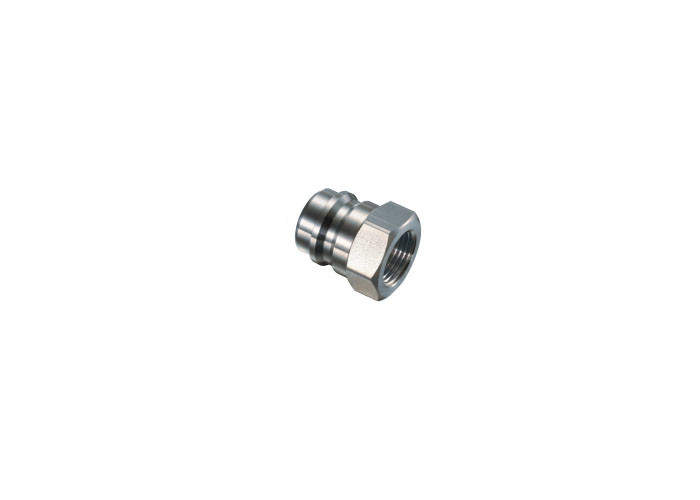

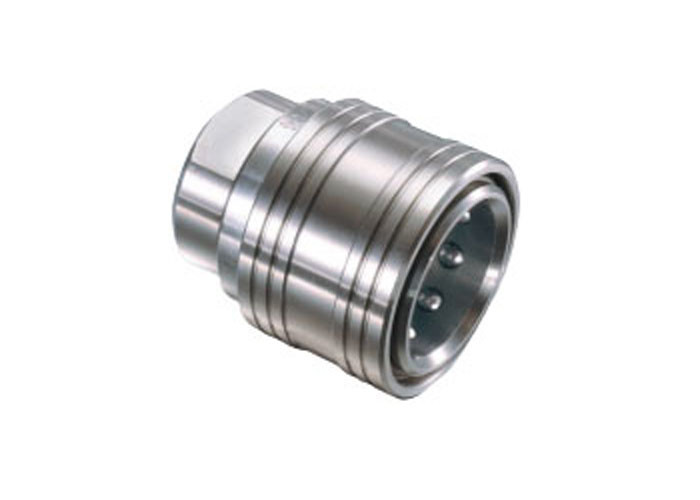

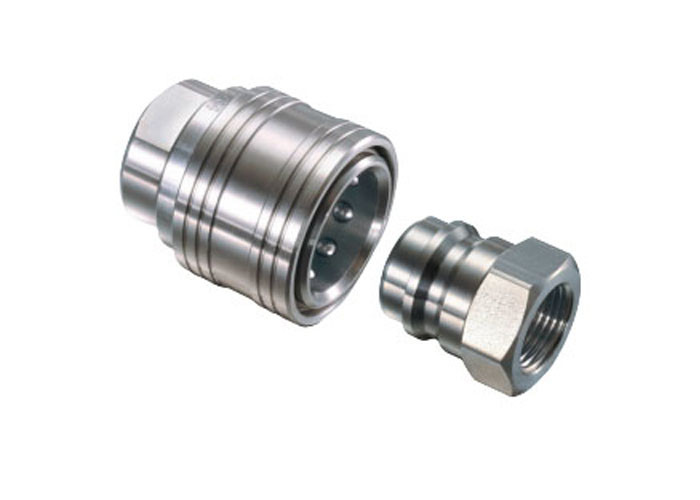

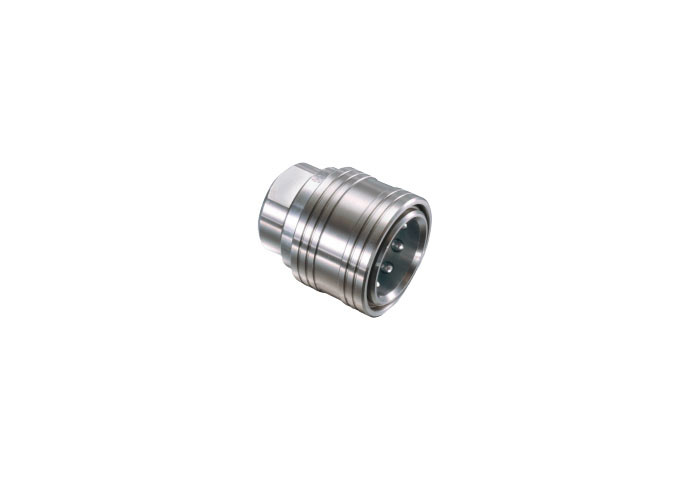

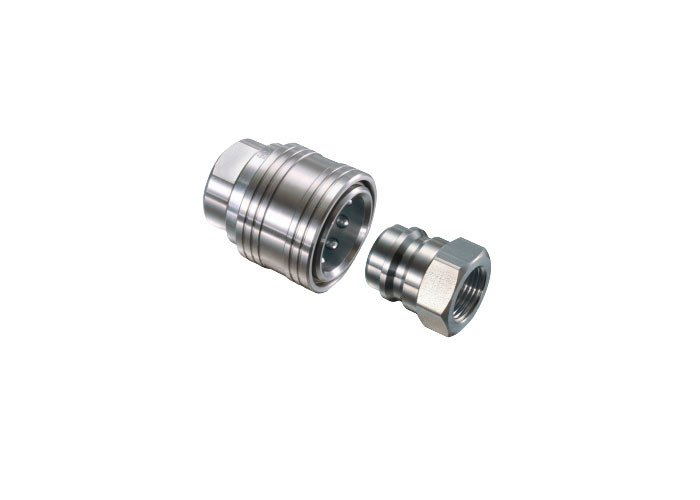

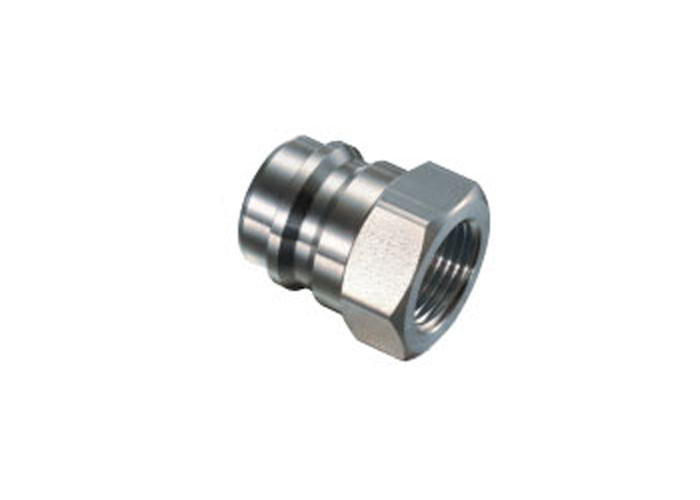

BSPP 0.75 Inch Stainless Steel Hydraulic Couplings

Negotiation
MOQ
Negotiation
Price
BSPP 0.75 Inch Stainless Steel Hydraulic Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Steel
Product Name: Straight-through Coupling
Thread: BSPP
Size: 1/8" To 1"
Pressure: 100-1000bar
Connection: Female
Shape: Equal,Other,Round,Panel Mount,In-line
Standard: IATF16949
Highlight:

BSPP Stainless Steel Hydraulic Couplings

,

0.75'' Stainless Steel Hydraulic Couplings

,

NBR stainless steel quick connect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-9
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Applications where maximum flow capacity is required Stainless Steel Quick Coupling



CB-9 Series Couplings with nominal diameters greater than 25 mm are designed and manufactured in accordance with the stipulations of Module D1 of the European Pressure Equipment Directive 97/23 EC. They should not be used to convey volatile gases.



Applications



Applications where maximum flow capacity is required Pressure washing Some steam-cleaning equipment Fluid transfer lines Refrigerant circuits Hydraulic fluids (water, steam, oil, …)



Standard Materials

  • Steel, Brass, AISI 316L stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Straight-through couplings
  2. Pull-to-connect couplings
  3. Ball-locking
  4. Dust caps and plugs
  5. Excellent flow capacity
  6. Compatible with HANSEN L7000 Series.

BSPP 0.75 Inch Stainless Steel Hydraulic Couplings 0

Body Size

PARTNO.

Steel

PARTNO.

Brass

PARTNO.

Stainless

 Thread A B HEX
1/8" CB-S1S-9FG CB-S1B-9FG CB-S1M-9FG 1/8-28 41.5 24 16
1/4" CB-S2S-9FG CB-S2B-9FG CB-S2M-9FG 1/4-19 36 28 19
3/8" CB-S3S-9FG CB-S3B-9FG CB-S3M-9FG 3/8-19 38 34 23
1/2" CB-S4S-9FG CB-S4B-9FG CB-S4M-9FG 1/2-14 45 38 27
3/4" CB-S6S-9FG CB-S6B-9FG CB-S6M-9FG 3/4-14 56 48 35
1" CB-S8S-9FG CB-S8B-9FG CB-S8M-9FG 1-11 61 52 41

BSPP 0.75 Inch Stainless Steel Hydraulic Couplings 1

Body Size

PARTNO.

Steel

PARTNO.

Brass

PARTNO.

Stainless

 Thread C D HEX
1/8" CB-P1S-9FG CB-P1B-9FG CB-P1M-9FG 1/8-28 26 11 16
1/4" CB-P2S-9FG CB-P2B-9FG CB-P2M-9FG 1/4-19 25.5 14.2 19
3/8" CB-P3S-9FG CB-P3B-9FG CB-P3M-9FG 3/8-19 28 19 23
1/2" CB-P4S-9FG CB-P4B-9FG CB-P4M-9FG 1/2-14 33 20.6 27
3/4" CB-P6S-9FG CB-P6B-9FG CB-P6M-9FG 3/4-14 40 27.9 35
1" CB-P8S-9FG CB-P8B-9FG CB-P8M-9FG 1-11 44 32.4 41



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
