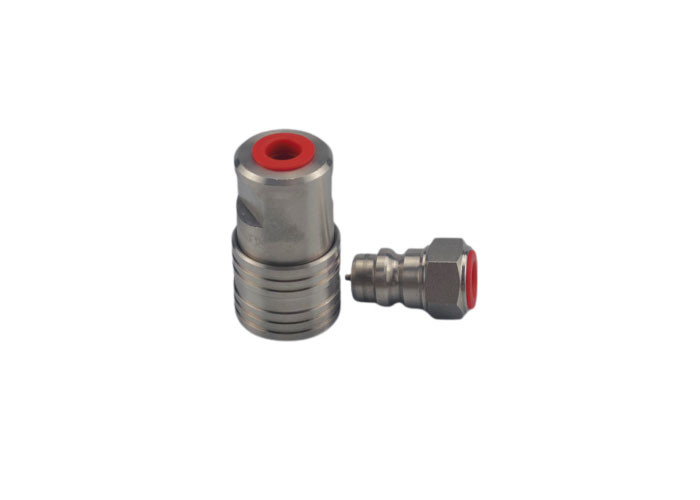

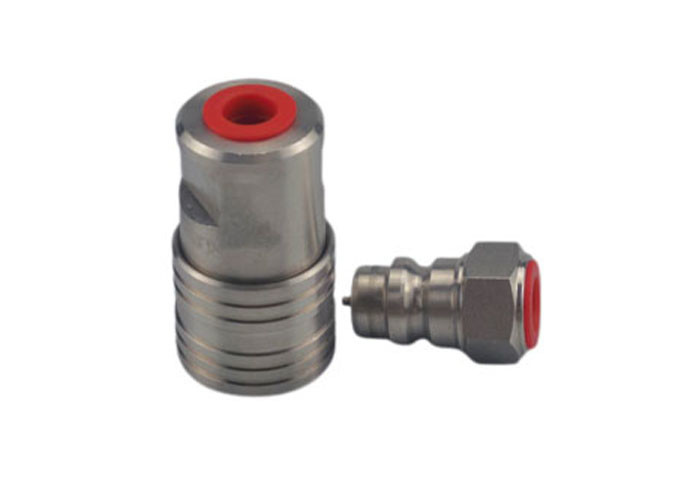

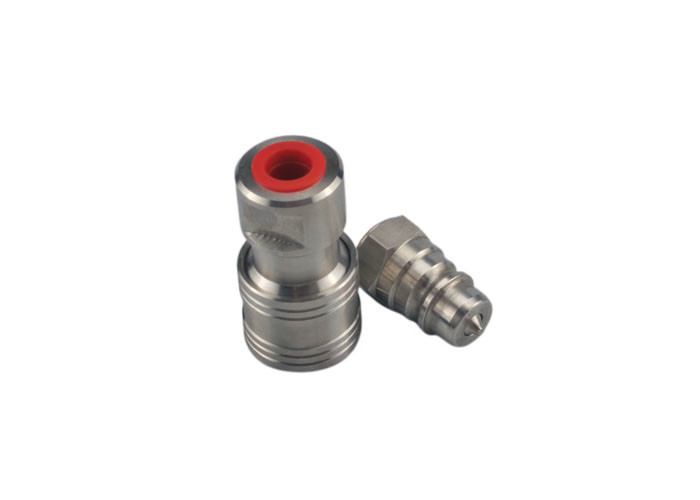

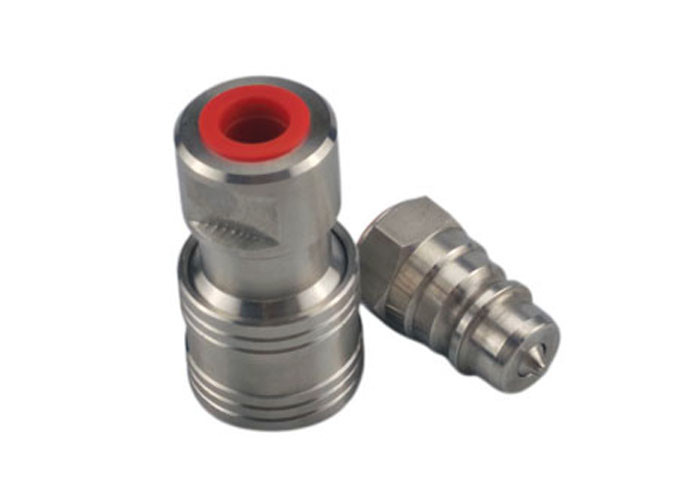

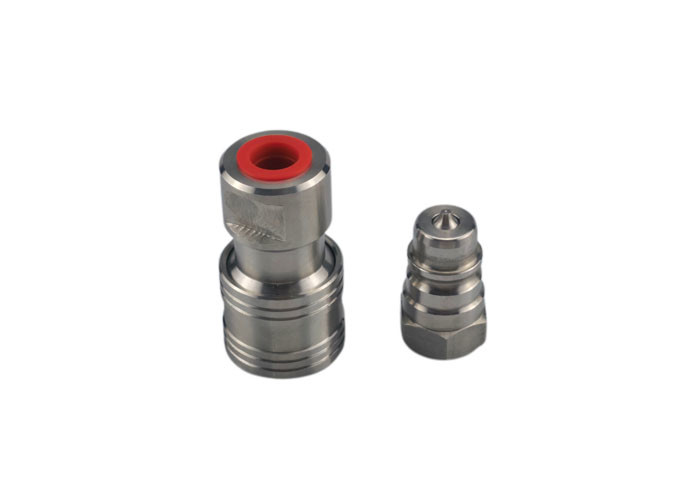

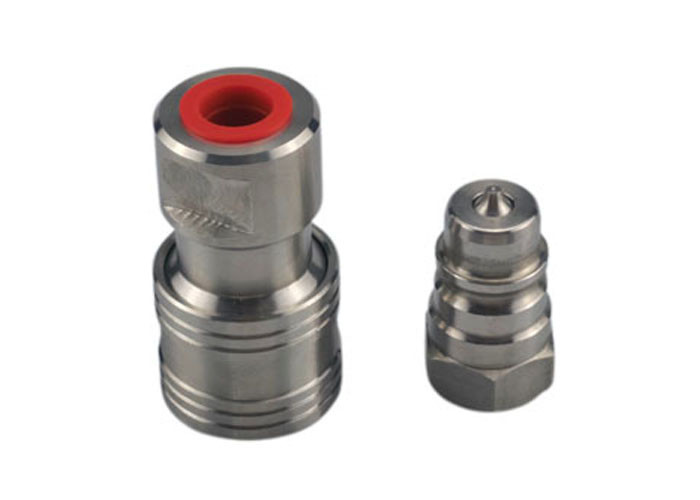

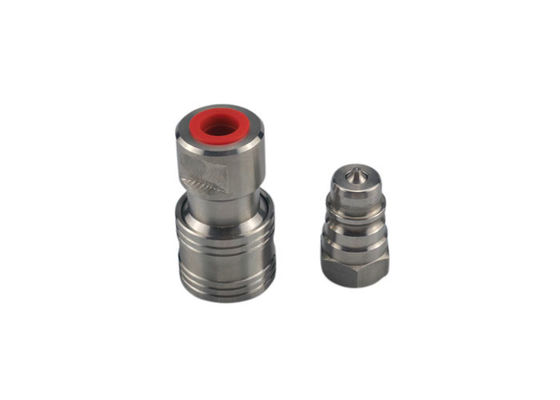

0.75 Inch Stainless Steel Close ISO 7241 A Quick Couplings

Negotiation
MOQ
Negotiation
Price
0.75 Inch Stainless Steel Close ISO 7241 A Quick Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Zinc-plated Steel, Stainless Steel
Rated Pressure: 20.7 Mpa
Connection: Female/Male
Rated Flow: 190 L/min
Type: ISO 7241A
Size: 1/4''-1''
Valves: Ball / Poppet
Interchange: PARKER 6600 Series/HANSEN HA 15000 Series
Highlight:

0.75'' ISO 7241 A Quick Couplings

,

IATF 16949 ISO 7241 A Quick Couplings

,

ISO 7241 A stainless steel quick disconnect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-10
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

316 stainless steel Close Type Series Hydraulic Quick couplings



Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.



CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.



Standard Materials

  • stainless steel
  • Seals: NBR, Viton, EPDM

0.75 Inch Stainless Steel Close ISO 7241 A Quick Couplings 0

Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2L-10FN/CB-S2M-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2L-10FG/CB-S2M-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3L-10FN/CB-S3M-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3L-10FG/CB-S3M-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4L-10FN/CB-S4M-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4L-10FG/CB-S4M-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6L-10FN/CB-S6M-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6L-10FG/CB-S6M-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8L-10FN/CB-S8M-10FN 1-11 3.86 2.08 1.62
1" CB-S8L-10FG/CB-S8M-10FG 1-11 3.86 2.08 1.62

0.75 Inch Stainless Steel Close ISO 7241 A Quick Couplings 1

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2L-10FN/ CB-P2M-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2L-10FG/ CB-P2M-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3L-10FN/ CB-P3M-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3L-10FG/ CB-P3M-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4L-10FN/ CB-P4M-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4L-10FG/ CB-P4M-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6L-10FN/ CB-P6M-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6L-10FG/ CB-P6M-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8L-10FN/ CB-P8M-10FN 1-11 2.83 1.85 1.19 1.62
1" CB-P8L-10FG/ CB-P8M-10FG 1-11 2.83 1.85 1.19 1.62



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
