Food And Beverage 0.25'' Stainless Steel Quick Coupling

Negotiation
MOQ
Negotiation
Price
Food And Beverage 0.25'' Stainless Steel Quick Coupling
Features Gallery Product Description Request A Quote
Features
Specifications
Material: 316 Stainless Steel
Size: 1/4"-1''
Application: Construction
Pressure: 250bar
Packing: Carton
Technics: Casting
Standard: ISO
Name: Quick Connect Couplings
Highlight:

ISO Stainless Steel Quick Coupling

,

3625 psi Stainless Steel Quick Coupling

,

0.25'' stainless steel hydraulic couplings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-9
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

Applications in Food and Beverage 1/4’’ Nominal Stainless Steel Quick Coupling

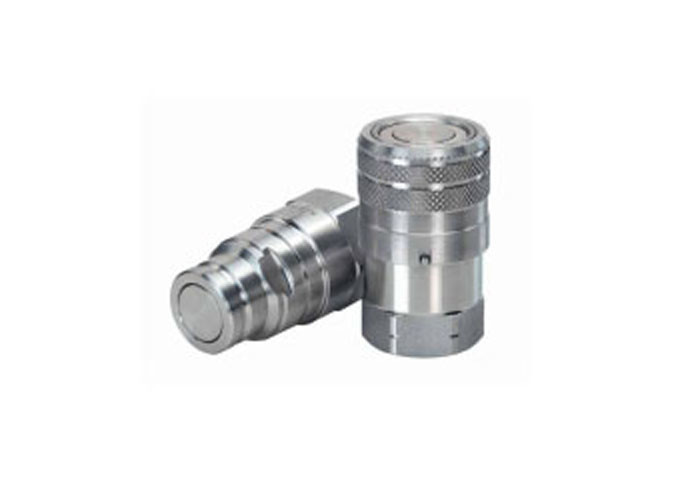

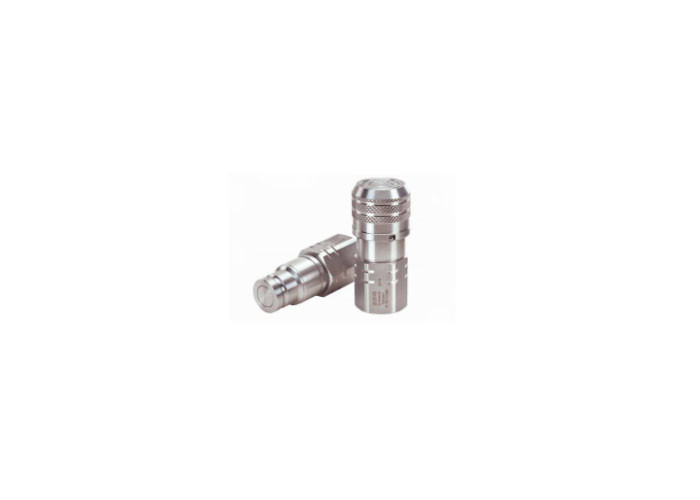

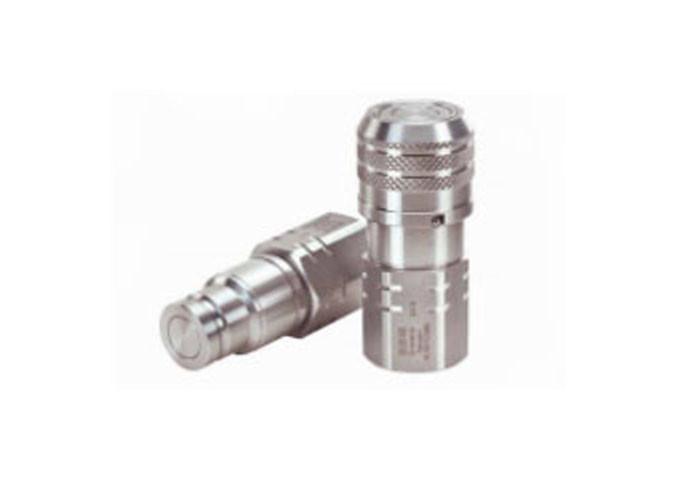

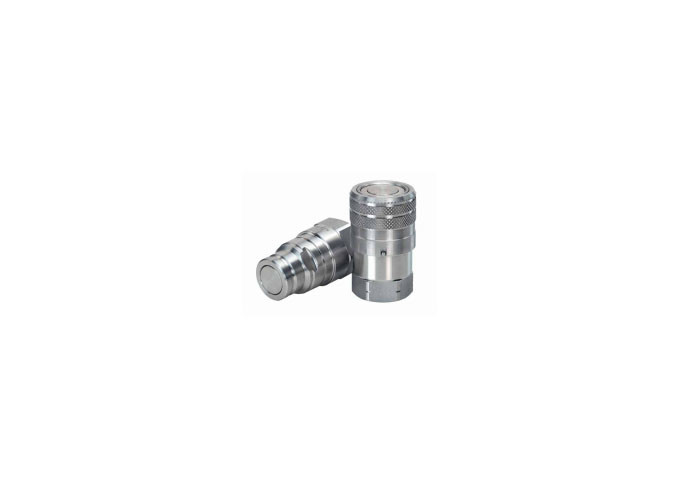

CB-9-C Series stainless steel coupling is a flat face dry break coupling used for hydraulic applications. The Series interchanges with all ISO 16028 profiles. Due to its stainless steel design, it is corrosion resistant and can handle aggressive environments.

Applications & Markets • Construction • Agriculture • Iron and Steel Industry • Railway • Oil and Gas • Marine • Material Handling • General Hydraulic applications



Features

  1. Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive PED 2014/68/EU
  2. Safety sleeve lock prevents accidental disconnections
  3. Push to connect with double shut-off valving
  4. Resistant to aggressive environments and corrosion
  5. Standard body material: 316L Stainless steel corrosion resistant
  6. Alternative end connections available upon request
  7. Standard seal material: FKM, EPDM, NBR+AU, HNBR (upon request)

Food And Beverage 0.25'' Stainless Steel Quick Coupling 0

Body Size PARTNO. Thread A B C HEX
1/4" CB-S2M-6FN-C 1/4-18 2.13 1.06 0.94 0.87
1/4" CB-S2M-6FG-C 1/4-19 2.13 1.06 0.94 0.87
3/8" CB-S3M-6FN-C 3/8-18 2.68 1.26 1.16 1.06
3/8" CB-S3M-6FG-C 3/8-18 2.68 1.26 1.16 1.06
3/8" CB-S3M-6FG-C 1/2-14 2.80 1.26 1.16 1.06
1/2" CB-S4M-6FN-C 1/2-14 3.27 1.50 1.56 1.42
1/2" CB-S4M-6FG-C 1/2-14 3.27 1.50 1.56 1.42
1/2" CB-S4M-6FG-C 3/4-14 3.39 1.50 1.56 1.42
5/8" CB-S5M-6FN-C 3/4-14 3.39 1.66 1.56 1.42
5/8" CB-S5M-6FG-C 3/4-14 3.39 1.66 1.56 1.42
3/4" CB-S6M-6FN-C 3/4-14 3.82 1.81 1.77 1.61
3/4" CB-S6M-6FG-C 3/4-14 3.82 1.81 1.77 1.61
3/4" CB-S6S-6FG-C 1-11 3.82 1.81 1.77 1.61
1" CB-S8M-6FN-C 1 1/4-11.5 4.07 2.36 2.36 2.17
1" CB-S8M-6FG-C 1-11 4.07 2.36 2.36 2.17





Food And Beverage 0.25'' Stainless Steel Quick Coupling 1





Body Size PARTNO. Thread D E F HEX
1/4" CB-P2M-6FN-C 1/4-18 2.01 0.46 0.94 0.87
1/4" CB-P2M-6FG-C 1/4-19 2.01 0.46 0.94 0.87
3/8" CB-P3M-6FN-C 3/8-18 2.56 0.78 1.16 1.06
3/8" CB-P3M-6FG-C 3/8-18 2.56 0.78 1.16 1.06
3/8" CB-P3M-6FG-C 1/2-14 2.68 0.78 1.16 1.06
1/2" CB-P4M-6FN-C 1/2-14 2.72 0.96 1.56 1.42
1/2" CB-P4M-6FG-C 1/2-14 2.72 0.96 1.56 1.42
1/2" CB-P4M-6FG-C 3/4-14 2.83 0.96 1.56 1.42
5/8" CB-P5M-6FN-C 3/4-14 2.83 1.06 1.56 1.42
5/8" CB-P5M-6FG-C 3/4-14 2.83 1.06 1.56 1.42
3/4" CB-P6M-6FN-C 3/4-14 3.70 1.18 1.77 1.61
3/4" CB-P6M-6FG-C 3/4-14 3.70 1.18 1.77 1.61
3/4" CB-P6S-6FG-C 1-11 3.70 1.18 1.77 1.61
1" CB-P8M-6FN-C 1 1/4-11.5 4.12 1.42 2.36 2.17
1" CB-P8M-6FG-C 1-11 4.12 1.42 2.36 2.17
