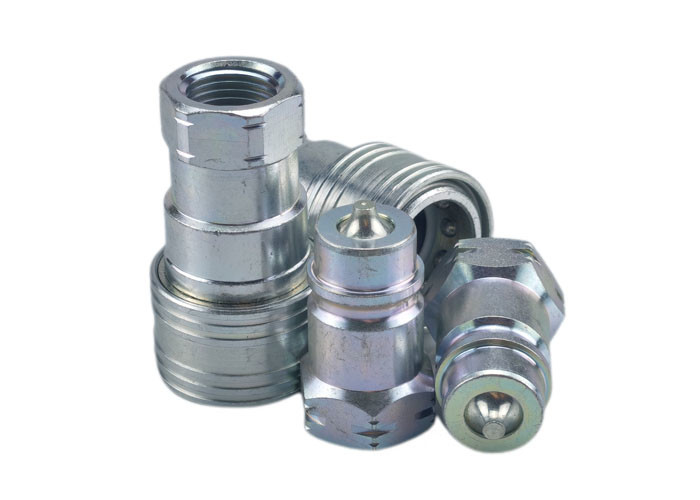

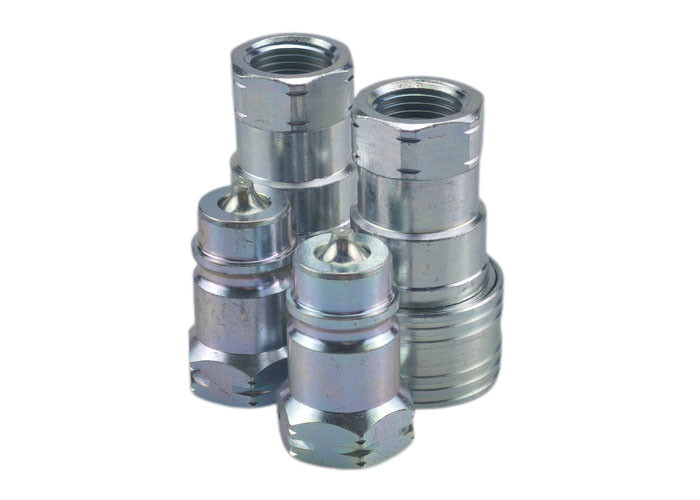

Male Zinc Plated Steel ISO 7241 A Quick Couplings

Negotiation
MOQ
Negotiation
Price
Male Zinc Plated Steel ISO 7241 A Quick Couplings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Zinc-plated Steel, Stainless Steel
Rated Pressure: 20.7 Mpa
Connection: Female/Male
Rated Flow: 190 L/min
Type: ISO 7241A
Size: 1/4''-1''
Valves: Ball / Poppet
Interchange: PARKER 6600 Series/HANSEN HA 15000 Series
Highlight:

Male ISO 7241 A Quick Couplings

,

1in ISO 7241 A Quick Couplings

,

IATF 16949 hansen quick connect
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-10
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

ISO7241A interchange with Hansen 15000 Series Quick couplings

CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1".

Standard Materials

  • zinc-plated steel, stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.
BODY SIZERated Pressure (PSI)Rated Pressure (BAR)Standard seal material
1/4"4568315NBR
3/8"4568315
1/2"3625250
3/4"3625250
1"2900200

Male Zinc Plated Steel ISO 7241 A Quick Couplings 0

Body SizePARTNO.ThreadABAcross Flats
1/4"CB-S2S-10FN1/4-181.890.980.75
1/4"CB-S2S-10FG1/4-191.890.980.75
3/8"CB-S3S-10FN3/8-182.211.180.91
3/8"CB-S3S-10FG3/8-192.211.180.91
1/2"CB-S4S-10FN1/2-142.641.491.06
1/2"CB-S4S-10FG1/2-142.641.491.06
3/4"CB-S6S-10FN3/4-143.251.881.38
3/4"CB-S6S-10FG3/4-143.251.881.38
1"CB-S8S-10FN1-113.862.081.62
1"CB-S8S-10FG1-113.862.081.62

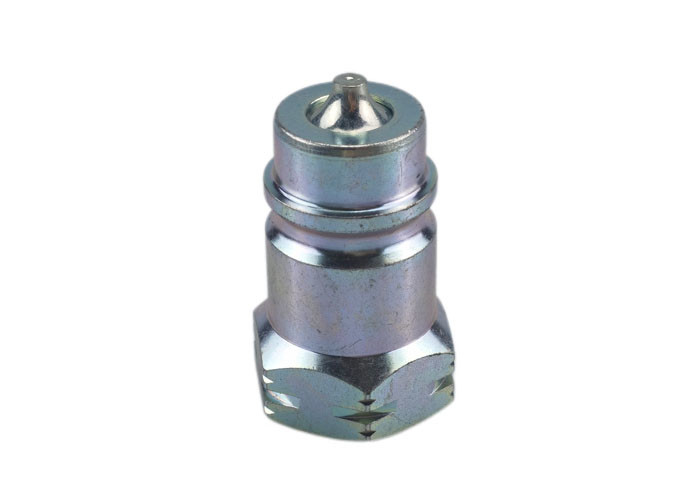

Male Zinc Plated Steel ISO 7241 A Quick Couplings 1

Body SizePARTNO.ThreadCDEHEX
1/4"CB-P2S-10FN1/4-181.410.860.800.75
1/4"CB-P2S-10FG1/4-191.410.860.800.75
3/8"CB-P3S-10FN3/8-181.631.040.790.91
3/8"CB-P3S-10FG3/8-191.631.040.790.91
1/2"CB-P4S-10FN1/2-141.921.220.921.06
1/2"CB-P4S-10FG1/2-141.921.220.921.06
3/4"CB-P6S-10FN3/4-142.421.581.091.38
3/4"CB-P6S-10FG3/4-142.421.581.091.38
1"CB-P8S-10FN1-112.831.851.191.62
1"CB-P8S-10FG1-112.831.851.191.62


Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
