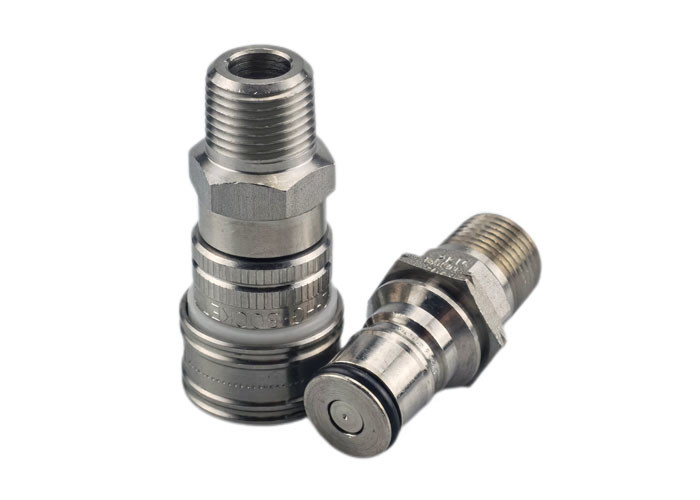

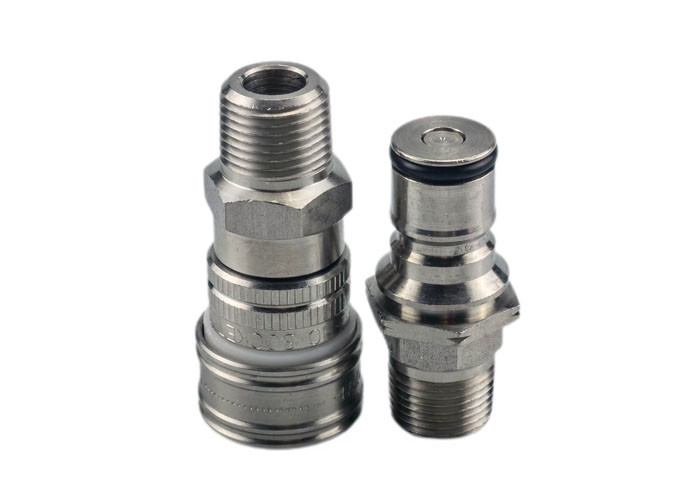

1500psi 0.25'' Nominal Stainless Steel Quick Coupling

1500psi 0.25'' Nominal Stainless Steel Quick Coupling

Brand Name: carterberg
Model Number: CB-9
MOQ: Negotiation
Price: Negotiation
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Detail Information
Place of Origin:
Shanghai, China
Certification:
IATF16949
Nominal:
1/4
Application:
Food And Beverage
Pressure:
1500psi
Connection:
Male
Shape:
Equal
Type:
Coupling
Standard:
ISO9001
Surface:
High Polished
Packaging Details:
carton
Supply Ability:
5000~20000 pc/month
Highlight:

1500psi Stainless Steel Quick Coupling

,

ISO9001 Stainless Steel Quick Coupling

,

IATF 16949 quick connect coupling

Product Description

Applications in Food and Beverage 1/4'' Nominal Stainless Steel Quick Coupling



CB-9-B Series They are functionally identical, but do not interchange. They can be used where it is necessary to avoid crossing lines. stainless steel couplings can be used with various liquids and gases.



Features

  1. Ball lock
  2. Manual operation
  3. Non interchangeable designs
  4. 1/4" body size
  5. All-stainless steel construction
  6. Sockets available with right-angle connection
  7. Seals: , Viton, EPDM
  8. Compatible with HANSEN 2HKIL Series.

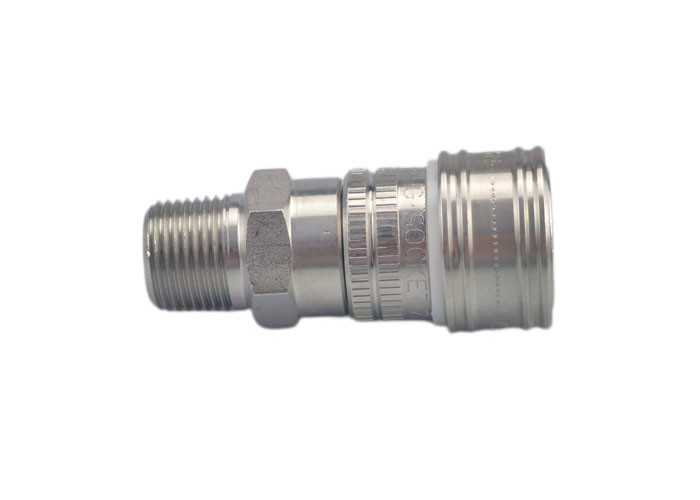

1500psi 0.25'' Nominal Stainless Steel Quick Coupling 0

Body Size PARTNO. Thread A B Hex
1/4" CB-S1L-9MN-A 1/8-27 2.18 1.06 0.81
1/4" CB-S2L-9MN-A 1/4-18 2.31 1.06 0.81
1/4" CB-S3L-9MN-A 3/8-18 2.31 1.06 0.81
1/4" CB-S7L-9MN-A 7/16-20* 2.27 1.06 0.81

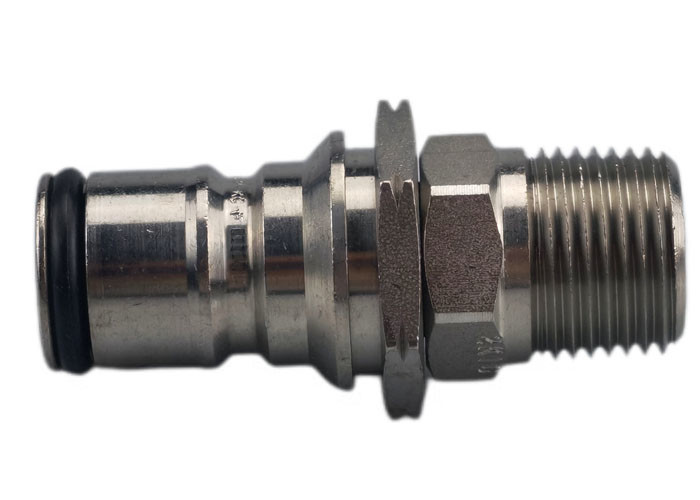

1500psi 0.25'' Nominal Stainless Steel Quick Coupling 1

Body Size PARTNO. Thread C D Hex
1/4" CB-P2L-9MN-A 1/4-18 1.98 1.01 0.69
1/4" CB-P3L-9MN-A 3/8-18 1.98 1.01 0.69
