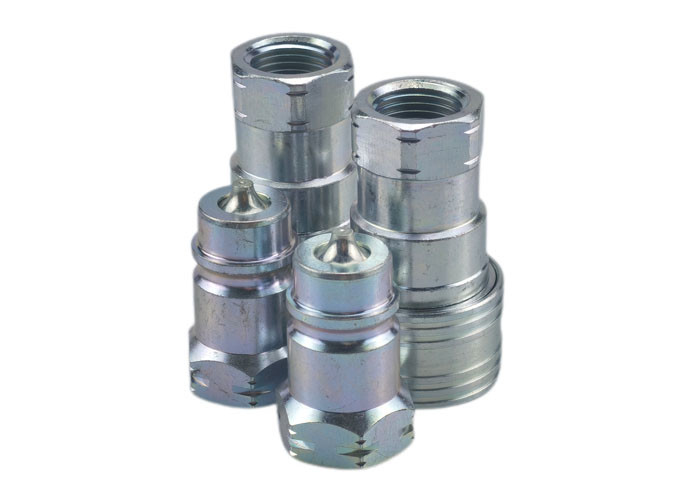

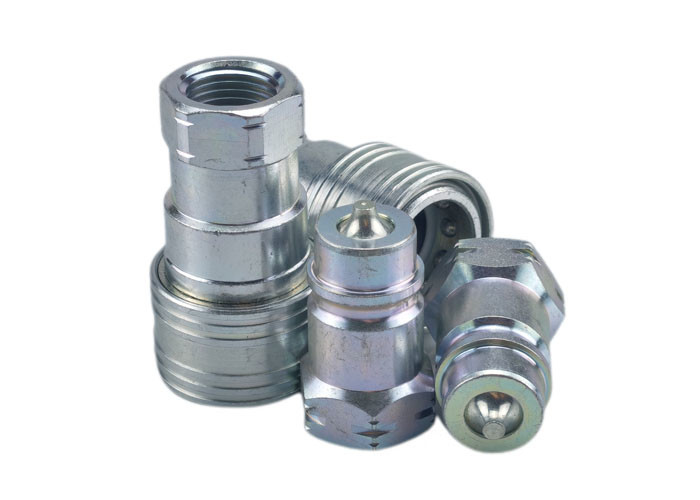

3/8" ISO7241A interchange with Hansen 15000 Series Quick couplings
Features
CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1".
Standard Materials
| BODY SIZE | Rated Pressure (PSI) | Rated Pressure (BAR) | Standard seal material |
| 1/4" | 4568 | 315 | NBR |
| 3/8" | 4568 | 315 | |
| 1/2" | 3625 | 250 | |
| 3/4" | 3625 | 250 | |
| 1" | 2900 | 200 |
| Body Size | PARTNO. | Thread | A | B | Across Flats |
| 1/4" | CB-S2S-10FN | 1/4-18 | 1.89 | 0.98 | 0.75 |
| 1/4" | CB-S2S-10FG | 1/4-19 | 1.89 | 0.98 | 0.75 |
| 3/8" | CB-S3S-10FN | 3/8-18 | 2.21 | 1.18 | 0.91 |
| 3/8" | CB-S3S-10FG | 3/8-19 | 2.21 | 1.18 | 0.91 |
| 1/2" | CB-S4S-10FN | 1/2-14 | 2.64 | 1.49 | 1.06 |
| 1/2" | CB-S4S-10FG | 1/2-14 | 2.64 | 1.49 | 1.06 |
| 3/4" | CB-S6S-10FN | 3/4-14 | 3.25 | 1.88 | 1.38 |
| 3/4" | CB-S6S-10FG | 3/4-14 | 3.25 | 1.88 | 1.38 |
| 1" | CB-S8S-10FN | 1-11 | 3.86 | 2.08 | 1.62 |
| 1" | CB-S8S-10FG | 1-11 | 3.86 | 2.08 | 1.62 |
| Body Size | PARTNO. | Thread | C | D | E | HEX |
| 1/4" | CB-P2S-10FN | 1/4-18 | 1.41 | 0.86 | 0.80 | 0.75 |
| 1/4" | CB-P2S-10FG | 1/4-19 | 1.41 | 0.86 | 0.80 | 0.75 |
| 3/8" | CB-P3S-10FN | 3/8-18 | 1.63 | 1.04 | 0.79 | 0.91 |
| 3/8" | CB-P3S-10FG | 3/8-19 | 1.63 | 1.04 | 0.79 | 0.91 |
| 1/2" | CB-P4S-10FN | 1/2-14 | 1.92 | 1.22 | 0.92 | 1.06 |
| 1/2" | CB-P4S-10FG | 1/2-14 | 1.92 | 1.22 | 0.92 | 1.06 |
| 3/4" | CB-P6S-10FN | 3/4-14 | 2.42 | 1.58 | 1.09 | 1.38 |
| 3/4" | CB-P6S-10FG | 3/4-14 | 2.42 | 1.58 | 1.09 | 1.38 |
| 1" | CB-P8S-10FN | 1-11 | 2.83 | 1.85 | 1.19 | 1.62 |
| 1" | CB-P8S-10FG | 1-11 | 2.83 | 1.85 | 1.19 | 1.62 |
