IATF 16949 316 Stainless Steel Quick Disconnect Fittings

Negotiation
MOQ
Negotiation
Price
IATF 16949 316 Stainless Steel Quick Disconnect Fittings
Features Gallery Product Description Request A Quote
Features
Specifications
Material: Zinc-plated Steel, Stainless Steel
Rated Pressure: 20.7 Mpa
Connection: Female/Male
Rated Flow: 190 L/min
Type: ISO 7241A
Size: 1/4''-1''
Valves: Ball / Poppet
Interchange: PARKER 6600 Series/HANSEN HA 15000 Series
Highlight:

316 Stainless Steel Quick Disconnect Fittings

,

IATF 16949 Stainless Steel Quick Disconnect Fittings

,

ISO 7241 A hydraulic quick connect couplings
Basic Infomation
Place of Origin: Shanghai, China
Brand Name: carterberg
Certification: IATF16949
Model Number: CB-10
Payment & Shipping Terms
Packaging Details: carton
Delivery Time: 7-20 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union
Supply Ability: 5000~20000 pc/month
Product Description

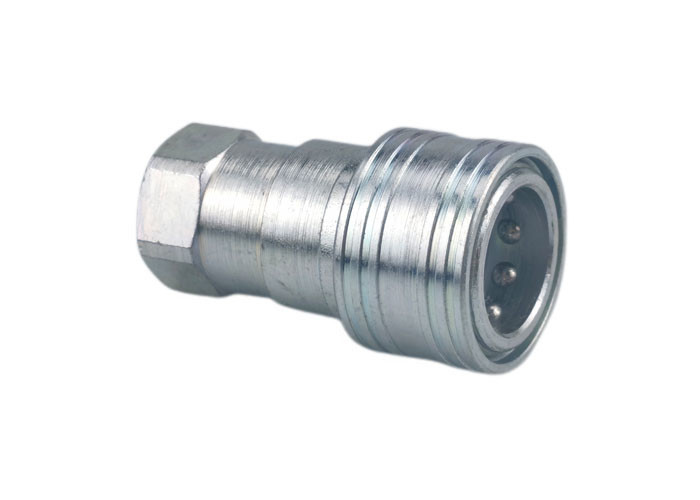

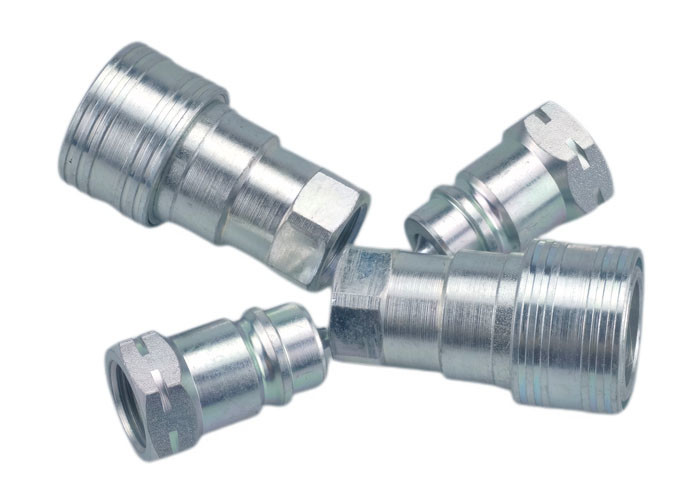

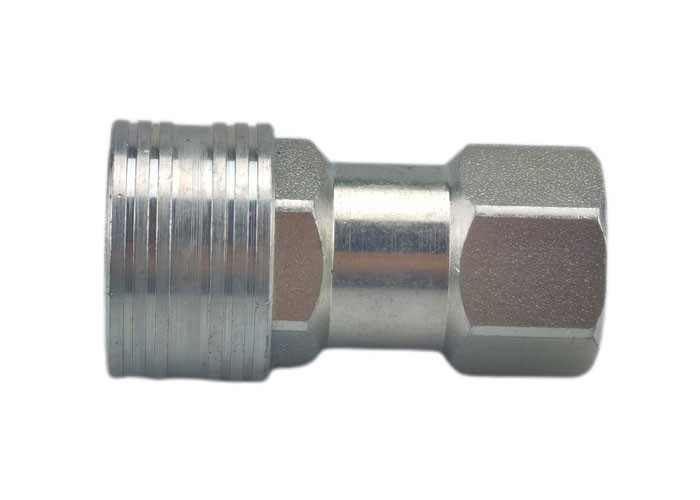

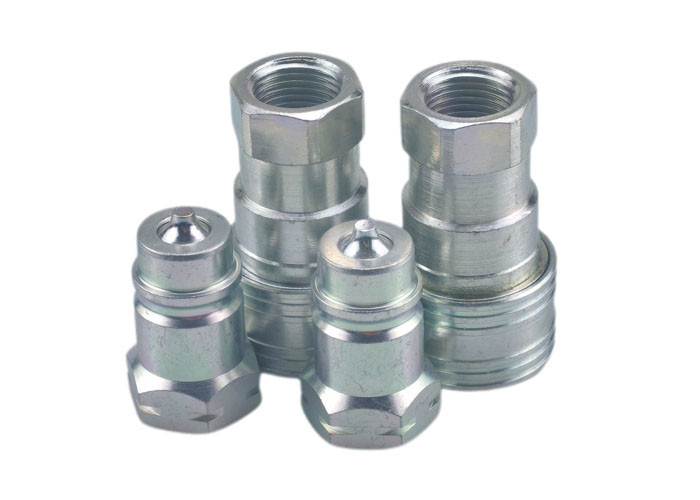

316 stainless steel Close Type Series Hydraulic Quick couplings



CB-10 Series Quick Couplings are general purpose hydraulic and fluid transfer coupling that conforms to the dimensional requirements of ISO 7241 A Series. Body sizes are 1/4", 3/8", 1/2", 3/4" and 1". use on construction equipment, forestry equipment, agricultural machinery, oil tools, Oil equipment steel mill machinery, and other demanding hydraulic applications.



Standard Materials

  • stainless steel
  • Seals: NBR, Viton, EPDM

Features

  1. Ball lock
  2. Manual connect, disconnect
  3. Poppet valving
  4. Slim profile
  5. Zinc plated steel construction
  6. NPTF and BSPP end connections
  7. Compatible with PARKER 6600 Series, FASTER ANV Series, AEROQUIP 5600 Series and HANSEN HA 15000 Series.

IATF 16949 316 Stainless Steel Quick Disconnect Fittings 0

Body Size PARTNO. Thread A B Across Flats
1/4" CB-S2L-10FN/CB-S2M-10FN 1/4-18 1.89 0.98 0.75
1/4" CB-S2L-10FG/CB-S2M-10FG 1/4-19 1.89 0.98 0.75
3/8" CB-S3L-10FN/CB-S3M-10FN 3/8-18 2.21 1.18 0.91
3/8" CB-S3L-10FG/CB-S3M-10FG 3/8-19 2.21 1.18 0.91
1/2" CB-S4L-10FN/CB-S4M-10FN 1/2-14 2.64 1.49 1.06
1/2" CB-S4L-10FG/CB-S4M-10FG 1/2-14 2.64 1.49 1.06
3/4" CB-S6L-10FN/CB-S6M-10FN 3/4-14 3.25 1.88 1.38
3/4" CB-S6L-10FG/CB-S6M-10FG 3/4-14 3.25 1.88 1.38
1" CB-S8L-10FN/CB-S8M-10FN 1-11IATF 16949 316 Stainless Steel Quick Disconnect Fittings 1 3.86 2.08 1.62
1" CB-S8L-10FG/CB-S8M-10FG 1-11 3.86 2.08 1.62

IATF 16949 316 Stainless Steel Quick Disconnect Fittings 2

Body Size PARTNO. Thread C D E HEX
1/4" CB-P2L-10FN/ CB-P2M-10FN 1/4-18 1.41 0.86 0.80 0.75
1/4" CB-P2L-10FG/ CB-P2M-10FG 1/4-19 1.41 0.86 0.80 0.75
3/8" CB-P3L-10FN/ CB-P3M-10FN 3/8-18 1.63 1.04 0.79 0.91
3/8" CB-P3L-10FG/ CB-P3M-10FG 3/8-19 1.63 1.04 0.79 0.91
1/2" CB-P4L-10FN/ CB-P4M-10FN 1/2-14 1.92 1.22 0.92 1.06
1/2" CB-P4L-10FG/ CB-P4M-10FG 1/2-14 1.92 1.22 0.92 1.06
3/4" CB-P6L-10FN/ CB-P6M-10FN 3/4-14 2.42 1.58 1.09 1.38
3/4" CB-P6L-10FG/ CB-P6M-10FG 3/4-14 2.42 1.58 1.09 1.38
1" CB-P8L-10FN/ CB-P8M-10FN 1-11IATF 16949 316 Stainless Steel Quick Disconnect Fittings 1 2.83 1.85 1.19 1.62
1" CB-P8L-10FG/ CB-P8M-10FG 1-11 2.83 1.85 1.19 1.62



Our Services:

1. Customized design, OEM is available.
2. In-time & professional after sales service.
3. Low MOQ, standard package, fast delivery.
4. Special discount and protection are provided to our distributors.
5. As an honest seller, we always use superior raw material, advanced equipments, skilled technicians and strict quality control to ensure our products to be finished in high quality and stable feature.
